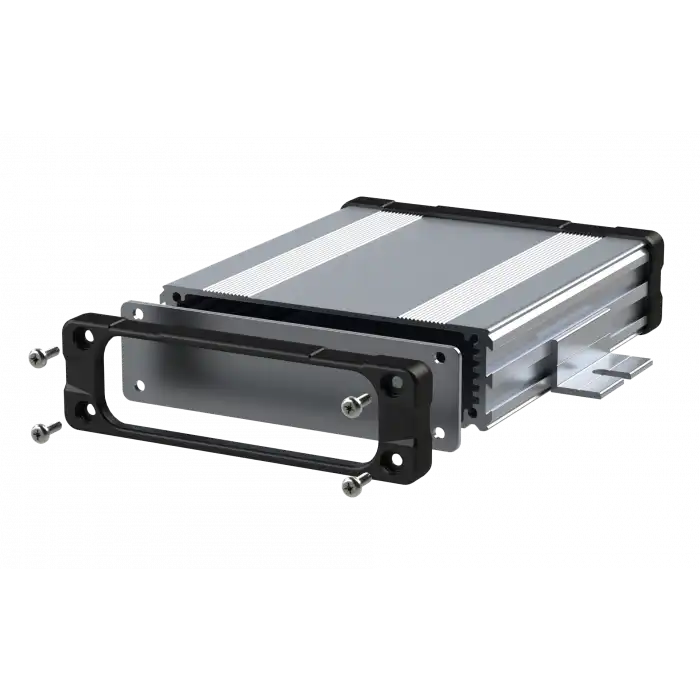

E-CASE B Series - Extruded Aluminium Enclosures and Accessories

Custom Extrusion Lengths Available

Product Features

Standard extrusion lengths of 80mm, 160mm and 220mm. Custom extrusion lengths are available, for more information please contact us.
Extrusion width is fixed at 108.5mm.
Extrusion height is fixed at 30mm.
P.C. Board Sizes:
- Maximum component width of 100mm.
- Maximum component height of 18.6mm.
Standard anodised colours include Black, Pre-Anodised Black and Silver. Custom colours are available upon request, i.e. Blue, Red, Gold, Green etc, for more information please contact us.
Manufactured in Aluminium 6063 T6.
Weight: 1.38 kg/m.
A large range of accessories are available including mounting lugs (ABS and Aluminium), DIN rail clips, carrier plates for P.C. Boards, assembly screws, plastic end bezels, sealing kits and protective rubber feet.

Lincoln Binns Enclosures

KGA Enclosures Ltd are full authorised distributors of the Lincoln Binns Enclosures product range. This entire range is available from KGA Enclosures Ltd at great competitive pricing and with full customisation options on all applicable products.

Please remember - KGA Enclosures Ltd are authorised distributors of this product range. Please only use authorised distributors to purchase these products. This will then ensure you receive a genuine product.

How To Purchase Products

Please note - KGA Enclosures currently does not accept orders via our website, all orders need to be e-mailed to us, at sales@kgaenclosures.com.

To purchase any product or for more assistance, please contact KGA Enclosures Ltd, by phone (+44) 01535 636856 or E-Mail: sales@kgaenclosures.com.

Please include the following information when placing an order or requesting a quote (where applicable).

Confirmation of items and quantities required.
Contact name.
Company name.
Full shipping address, and billing address if different from shipping.
Contact telephone number.
E-Mail address.
VAT/EORI Number (Only for orders outside the UK).

Once we receive any E-Mail, we aim to respond within 24 hours.

Payment Options

Payment options accepted at KGA Enclosures Ltd include:

Bank Transfers (BACS).
Cheques.
Credit/Debit cards.
PayPal.

Unfortunately, CASH is not accepted for payment.

Please note - All bank details and payment options are detailed on the invoice.

Hammond Manufacturing Product Ranges

Did you know you can find the entire Hammond Manufacturing product range here at KGA Enclosures Ltd?

We offer all of these products at great competitive prices and with full customisation options where applicable. If you find a lower price, we will match it and beat it. That is our guarantee. For more information on any range, please click the links below:

View the Hammond Enclosures Range
View the Hammond Electrical Enclosures Range
View the Hammond Power Distribution Range
View the Hammond Rack Solutions Range
View the Hammond Transformers Range
View the Ritec Plastic Enclosures Range

Share This Product Range

E-CASE B Series | Lincoln Binns Enclosures | KGA Enclosures Ltd

Product Data Sheet

Return To Product Range

E-CASE B Series - (Extruded Aluminium Enclosures and Accessories - Custom Extrusion Lengths Available) From Lincoln Binns Enclosures - all available at KGA Enclosures Ltd.

Please email all orders and enquiries to sales@kgaenclosures.com
Product Options

Part No	Manufacturer	Product Information	1+	10+	50+	100+	More.....
Length - 80mm / Extrusion only - accessories all sold individually
EBB80	Lincoln Binns	Click Part Number For Details	£11.26	£10.13	£9.57	£9.29	More.....
EBB80PA	Lincoln Binns	Click Part Number For Details	£8.93	£8.04	£7.59	£7.37	More.....
EBC80	Lincoln Binns	Click Part Number For Details		£11.19	£10.57	£10.26	More.....
EBS80	Lincoln Binns	Click Part Number For Details	£6.57	£5.91	£5.58	£5.42	More.....
Length - 160mm / Extrusion only - accessories all sold individually
EBB160	Lincoln Binns	Click Part Number For Details	£19.32	£17.39	£16.42	£15.94	More.....
EBB160PA	Lincoln Binns	Click Part Number For Details	£15.32	£13.79	£13.02	£12.64	More.....
EBC160	Lincoln Binns	Click Part Number For Details		£19.20	£18.14	£17.60	More.....
EBS160	Lincoln Binns	Click Part Number For Details	£11.27	£10.14	£9.58	£9.30	More.....
Length - 220mm / Extrusion only - accessories all sold individually
EBB220	Lincoln Binns	Click Part Number For Details	£25.36	£22.82	£21.56	£20.92	More.....
EBB220PA	Lincoln Binns	Click Part Number For Details	£20.09	£18.08	£17.08	£16.57	More.....
EBC220	Lincoln Binns	Click Part Number For Details		£25.21	£23.81	£23.11	More.....
EBS220	Lincoln Binns	Click Part Number For Details	£14.77	£13.29	£12.55	£12.19	More.....

Please contact us for stock and price confirmation

Please refer to the product data sheet for accessory compatibility
Product Accessories

Assembly Hardware

Part No	Manufacturer	Product Information	1+	10+	50+	100+	More.....
Self-Tapping Screws
SC400	Lincoln Binns	Click Part Number For Details	£14.07	£12.66	£11.96	£11.61	More.....
SC8	Lincoln Binns	Click Part Number For Details	£0.44	£0.40	£0.37	£0.36	More.....
SCB400	Lincoln Binns	Click Part Number For Details	£14.94	£13.45	£12.70	£12.33	More.....
SCB8	Lincoln Binns	Click Part Number For Details	£0.47	£0.42	£0.40	£0.39	More.....
Thread Forming Screws
SCT400	Lincoln Binns	Click Part Number For Details	£28.14	£25.33	£23.92	£23.22	More.....
SCT8	Lincoln Binns	Click Part Number For Details	£0.92	£0.83	£0.78	£0.76	More.....
SCTB400	Lincoln Binns	Click Part Number For Details	£32.71	£29.44	£27.80	£26.99	More.....
SCTB8	Lincoln Binns	Click Part Number For Details	£1.06	£0.95	£0.90	£0.87	More.....

Please contact us for stock and price confirmation

Bent End Plate Brackets

Part No	Manufacturer	Product Information	1+	10+	50+	100+	More.....
BEPB-BC	Lincoln Binns	Click Part Number For Details	P.O.A.	P.O.A.	P.O.A.	P.O.A.	More.....

Please contact us for stock and price confirmation

Carrier Plates

Part No	Manufacturer	Product Information	1+	10+	50+	100+	More.....
CN-100080	Lincoln Binns	Click Part Number For Details	£1.86	£1.67	£1.58	£1.53	More.....
CN-100120	Lincoln Binns	Click Part Number For Details	£2.49	£2.24	£2.12	£2.05	More.....
CN-100160	Lincoln Binns	Click Part Number For Details	£3.13	£2.82	£2.66	£2.58	More.....
CN-100220	Lincoln Binns	Click Part Number For Details	£4.41	£3.97	£3.75	£3.64	More.....

Please contact us for stock and price confirmation

DIN Rail Clips

Part No	Manufacturer	Product Information	1+	10+	50+	100+	More.....
9000-00109	Lincoln Binns	Click Part Number For Details	£5.62	£5.06	£4.78	£4.64	More.....
9000-00113	Lincoln Binns	Click Part Number For Details	£13.98	£12.58	£11.88	£11.53	More.....

Please contact us for stock and price confirmation

End Bezels

Part No	Manufacturer	Product Information	1+	10+	50+	100+	More.....
ZBB1	Lincoln Binns	Click Part Number For Details	£1.00	£0.90	£0.85	£0.83	More.....

Please contact us for stock and price confirmation

End Plates

Part No	Manufacturer	Product Information	1+	10+	50+	100+	More.....
PBB1	Lincoln Binns	Click Part Number For Details	£1.84	£1.66	£1.56	£1.52	More.....
PBC1	Lincoln Binns	Click Part Number For Details		£1.86	£1.76	£1.71	More.....
PBN1	Lincoln Binns	Click Part Number For Details	£0.91	£0.82	£0.77	£0.75	More.....
PBS1	Lincoln Binns	Click Part Number For Details	£1.84	£1.66	£1.56	£1.52	More.....

Please contact us for stock and price confirmation

Gasket Kits

Part No	Manufacturer	Product Information	1+	10+	50+	100+	More.....
GEB1	Lincoln Binns	Click Part Number For Details	£3.32	£2.99	£2.82	£2.74	More.....

Please contact us for stock and price confirmation

Mounting Brackets (ABS Plastic)

Part No	Manufacturer	Product Information	1+	10+	50+	100+	More.....
COB40	Lincoln Binns	Click Part Number For Details	£2.62	£2.36	£2.23	£2.16	More.....

Please contact us for stock and price confirmation

Mounting Brackets (Aluminium)

Part No	Manufacturer	Product Information	1+	10+	50+	100+	More.....
Length - 40mm
LSB40	Lincoln Binns	Click Part Number For Details	£1.40	£1.26	£1.19	£1.16	More.....
LSC40	Lincoln Binns	Click Part Number For Details		£1.39	£1.32	£1.28	More.....
LSS40	Lincoln Binns	Click Part Number For Details	£0.82	£0.74	£0.70	£0.68	More.....
Length - 40mm with Screw
MTB40	Lincoln Binns	Click Part Number For Details	£4.23	£3.81	£3.60	£3.49	More.....
MTC40	Lincoln Binns	Click Part Number For Details		£4.10	£3.87	£3.76	More.....
MTS40	Lincoln Binns	Click Part Number For Details	£2.95	£2.66	£2.51	£2.43	More.....
Length - 80mm
LSB80	Lincoln Binns	Click Part Number For Details	£1.91	£1.72	£1.62	£1.58	More.....
LSC80	Lincoln Binns	Click Part Number For Details		£1.92	£1.82	£1.76	More.....
LSS80	Lincoln Binns	Click Part Number For Details	£1.00	£0.90	£0.85	£0.83	More.....

Please contact us for stock and price confirmation

VESA Mounting Brackets

Part No	Manufacturer	Product Information	1+	10+	50+	100+	More.....
VMB-E	Lincoln Binns	Click Part Number For Details	P.O.A.	P.O.A.	P.O.A.	P.O.A.	More.....

Please contact us for stock and price confirmation

Protective Rubber Feet

Part No	Manufacturer	Product Information	1+	10+	50+	100+	More.....
PFC1	Lincoln Binns	Click Part Number For Details	P.O.A.	P.O.A.	P.O.A.	P.O.A.	More.....

Please contact us for stock and price confirmation

Lincoln Binns Enclosures Customisation Services

Product Customisation Options

What makes KGA Enclosures Ltd different from most other larger distributors is that we can offer full customisation services on all enclosures and accessories. All customisation work is undertaken by the relevant supplier, (some smaller production runs are done by utilizing an outside contractor) at their own manufacturing facilities. These services include milling or punching holes and slots into the enclosure or end plates for cables, connectors, switches, etc. Printing and silk-screening services all for the addition of text, logos, and graphics onto both the enclosure and end plates, to allow the end user to easily identify the product, and to allow the final product to look more elegant. Contact us today to see how we can assist you.

E-Case A To F Extruded Aluminium Enclosures

Extrusion lengths up to 1.5 meters for UK Shipping.
Extrusion lengths up to 1 meter for worldwide shipping.
E-Case A - 55mm wide P.C. board or carrier plate.
E-Case A - 18.6mm maximum height of components.
E-Case B - 100mm wide P.C. board or carrier plate.
E-Case B - 18.6mm maximum height of components.
E-Case C - 100mm wide P.C. board or carrier plate.
E-Case C - 33.6mm maximum height of components.
E-Case D - 160mm wide P.C. board or carrier plate.
E-Case D - 40.75mm maximum height of components.
E-Case F - 160mm wide P.C. board or carrier plate.
E-Case F - 18.6mm maximum height of components.

Extrusion

Can be cut to length: 40mm to 1500mm.
Cut tolerance: 0mm / +0.5mm.
Surface finish: anodised, anti-corrosion, or powder coated.
Milled cut-outs or recess.
Laser marked or digital print.

End Plates

From 1.5mm up to 10mm in thickness.
Over sized.
19" rack mount.
Aluminium, zintec, or acrylic.
Various surface finishes and colour options.
Milled or punched cut-outs.
Laser marked or digital print.

Carrier Plates

Manufactured to specified dimensions.
Various surface finishes and colour options.
Punched cut-outs.
Laser marked or digital print.
