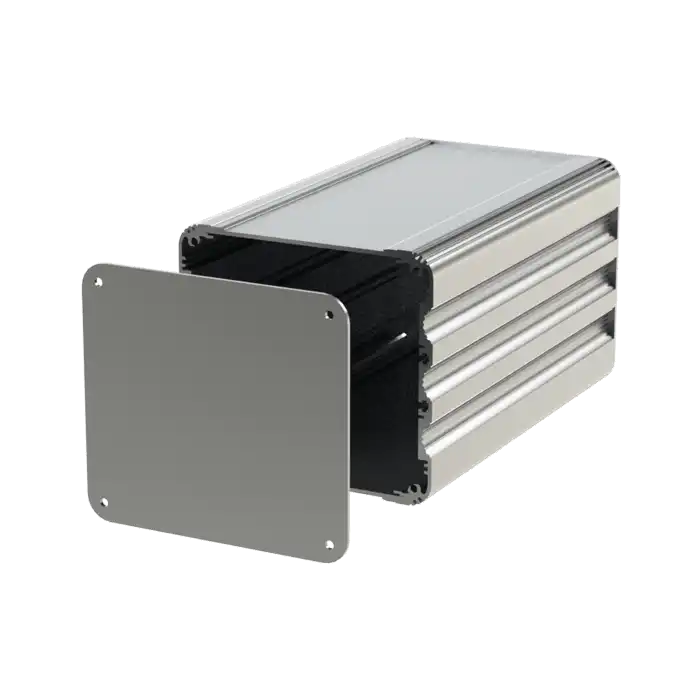

UNIOBOX 66 Series - Extruded Aluminium Enclosures and Accessories
Custom Extrusion Lengths and Extrusion Widths Available
Product Information
Contact / Purchase Products
Customisation Services
Product Features
  • Standard extrusion lengths of 80mm, 120mm, 160mm and 220mm. Custom extrusion lengths are available, for more information please contact us.
  • Standard extrusion widths of 104mm, 132mm, 164mm and 224mm. Custom extrusion widths are available, for more information please contact us.
  • Extrusion height is fixed at 66mm (1½U).
  • P.C. Board Sizes:
    • Maximum component width of 200mm.
    • Maximum component height of 45mm.
  • Standard anodised colour is Silver. Custom colours are available upon request, i.e. Black, Blue, Red, Gold, Green etc, for more information please contact us.
  • Manufactured in Aluminium 6063 T6.
  • A large range of accessories are available including mounting lugs (ABS and Aluminium), DIN rail clips, carrier plates for P.C. Boards, assembly screws, plastic end bezels, sealing kits and protective rubber feet.
Lincoln Binns Enclosures
KGA Enclosures Ltd are full authorised distributors of the Lincoln Binns Enclosures product range. This entire range is available from KGA Enclosures Ltd at great competitive pricing and with full customisation options on all applicable products.

Please remember - KGA Enclosures Ltd are authorised distributors of this product range. Please only use authorised distributors to purchase these products. This will then ensure you receive a genuine product.
Share This Product Range
Share on Facebook Share on LinkedIn Share on X
Hammond Manufacturing Product Ranges
Did you know you can find the entire Hammond Manufacturing product range here at KGA Enclosures Ltd?

We offer all of these products at great competitive prices and with full customisation options where applicable. If you find a lower price, we will match it and beat it. That is our guarantee. For more information on any range, please click the links below:
UNIOBOX 66 Series | Lincoln Binns Enclosures | KGA Enclosures Ltd
Quick Contact Form
Payment Options
Payment options accepted at KGA Enclosures Ltd include:
  • Bank Transfers (BACS).
  • Cheques.
  • Credit/Debit cards.
  • PayPal.
Unfortunately, CASH is not accepted for payment.
Please note - All bank details and payment options are detailed on the invoice.
How To Purchase Products
Please note - KGA Enclosures currently does not accept orders via our website, all orders need to be e-mailed to us, at sales@kgaenclosures.com or use or form opposite/above.

To purchase any product or for more assistance, please contact KGA Enclosures Ltd, by phone (+44) 01535 636856 or E-Mail: sales@kgaenclosures.com.

Please include the following information when placing an order or requesting a quote (where applicable).
  • Confirmation of items and quantities required.
  • Contact name.
  • Company name.
  • Full shipping address, and billing address if different from shipping.
  • Contact telephone number.
  • E-Mail address.
  • VAT/EORI Number (Only for orders outside the UK).
Once we receive any E-Mail, we aim to respond within 24 hours.
Product Customisation Options
What makes KGA Enclosures Ltd different from most other larger distributors is that we can offer full customisation services on all enclosures and accessories. All customisation work is undertaken by the relevant supplier, (some smaller production runs are done by utilizing an outside contractor) at their own manufacturing facilities. These services include milling or punching holes and slots into the enclosure or end plates for cables, connectors, switches, etc. Printing and silk-screening services all for the addition of text, logos, and graphics onto both the enclosure and end plates, to allow the end user to easily identify the product, and to allow the final product to look more elegant. Contact us today to see how we can assist you.
UnioBox 2, 3, and 66 Extruded Aluminium Enclosures
  • The UnioBox is a 6-piece enclosure kit that can be customised to suit your application.
  • Extrusion lengths up to 1.5 meters for UK Shipping.
  • Extrusion lengths up to 1 meter for worldwide shipping.
  • Extrusion widths up to 500mm.
  • 31mm maximum height of components.
Extrusion
  • Can be cut to length: 40mm to 1500mm.
  • Cut tolerance: 0mm / +0.5mm.
  • Surface finish: anodised, anti-corrosion, or powder coated.
  • Milled cut-outs.
  • Laser marking or digital print.
End, Top, and Bases Plates
  • End Plates - From 1.5mm up to 10mm in thickness.
  • Top and Bases Plates - 2mm or 3mm in thickness.
  • 19" rack mount.
  • Aluminium, zintec, or acrylic.
  • Various surface finishes and colour options.
  • Milled or punched cut-outs.
  • Laser marking or digital print.
Carrier Plates
  • Manufactured to specified dimensions.
  • Various surface finishes and colour options.
  • Punched cut-outs.
  • Laser marking or digital print.
Customisation Services | Lincoln Binns Enclosures | KGA Enclosures Ltd
Product Data Sheet
Return To Product Range
Product Options
Please email all orders and enquiries to sales@kgaenclosures.com
Part No Manufacturer Product Information 1+ 10+ 50+ 100+ More.....
Length - 80mm / Supplied with end/belly plates and assembly hardware
U66S-104x080 Lincoln Binns Click Part Number For Details £10.16 £9.14 £8.64 £8.38 More.....
U66S-132x080 Lincoln Binns Click Part Number For Details £11.71 £10.54 £9.95 £9.66 More.....
U66S-164x080 Lincoln Binns Click Part Number For Details £13.89 £12.50 £11.81 £11.46 More.....
U66S-224x080 Lincoln Binns Click Part Number For Details £16.82 £15.14 £14.30 £13.88 More.....
Length - 120mm / Supplied with end/belly plates and assembly hardware
U66S-104x120 Lincoln Binns Click Part Number For Details £12.82 £11.54 £10.90 £10.58 More.....
U66S-132x120 Lincoln Binns Click Part Number For Details £14.73 £13.26 £12.52 £12.15 More.....
U66S-164x120 Lincoln Binns Click Part Number For Details £17.36 £15.62 £14.76 £14.32 More.....
U66S-224x120 Lincoln Binns Click Part Number For Details £21.02 £18.92 £17.87 £17.34 More.....
Length - 160mm / Supplied with end/belly plates and assembly hardware
U66S-104x160 Lincoln Binns Click Part Number For Details £15.71 £14.14 £13.35 £12.96 More.....
U66S-132x160 Lincoln Binns Click Part Number For Details £18.08 £16.27 £15.37 £14.92 More.....
U66S-164x160 Lincoln Binns Click Part Number For Details £21.20 £19.08 £18.02 £17.49 More.....
U66S-224x160 Lincoln Binns Click Part Number For Details £25.85 £23.27 £21.97 £21.33 More.....
Length - 220mm / Supplied with end/belly plates and assembly hardware
U66S-104x220 Lincoln Binns Click Part Number For Details £20.77 £18.69 £17.65 £17.14 More.....
U66S-132x220 Lincoln Binns Click Part Number For Details £24.03 £21.63 £20.43 £19.82 More.....
U66S-164x220 Lincoln Binns Click Part Number For Details £28.21 £25.39 £23.98 £23.27 More.....
U66S-224x220 Lincoln Binns Click Part Number For Details £34.37 £30.93 £29.21 £28.36 More.....
Please contact us for stock and price confirmation
Product Accessories
Please refer to the product data sheet for accessory compatibility
Assembly Hardware
Part No Manufacturer Product Information 1+ 10+ 50+ 100+ More.....
Security Pinned Screws
SC8US Lincoln Binns Click Part Number For Details £2.47 £2.22 £2.10 £2.04 More.....
SCB8US Lincoln Binns Click Part Number For Details £2.47 £2.22 £2.10 £2.04 More.....
Self-Tapping Screws
SC8U Lincoln Binns Click Part Number For Details £0.92 £0.83 £0.78 £0.76 More.....
SCB8U Lincoln Binns Click Part Number For Details £1.23 £1.11 £1.05 £1.01 More.....
Thread Forming Screws
SCT8U Lincoln Binns Click Part Number For Details £0.92 £0.83 £0.78 £0.76 More.....
SCTB8U Lincoln Binns Click Part Number For Details £1.27 £1.14 £1.08 £1.05 More.....
Please contact us for stock and price confirmation
Carrier Plates
Part No Manufacturer Product Information 1+ 10+ 50+ 100+ More.....
Length - 80mm
CN-100080 Lincoln Binns Click Part Number For Details £1.86 £1.67 £1.58 £1.53 More.....
CN-128080 Lincoln Binns Click Part Number For Details £2.17 £1.95 £1.84 £1.79 More.....
CN-160080 Lincoln Binns Click Part Number For Details £2.37 £2.13 £2.01 £1.96 More.....
CN-220080 Lincoln Binns Click Part Number For Details £3.77 £3.39 £3.20 £3.11 More.....
Length - 120mm
CN-100120 Lincoln Binns Click Part Number For Details £2.49 £2.24 £2.12 £2.05 More.....
CN-128120 Lincoln Binns Click Part Number For Details £2.96 £2.66 £2.52 £2.44 More.....
CN-160120 Lincoln Binns Click Part Number For Details £3.37 £3.03 £2.86 £2.78 More.....
CN-220120 Lincoln Binns Click Part Number For Details £5.04 £4.54 £4.28 £4.16 More.....
Length - 160mm
CN-100160 Lincoln Binns Click Part Number For Details £3.13 £2.82 £2.66 £2.58 More.....
CN-128160 Lincoln Binns Click Part Number For Details £3.77 £3.39 £3.20 £3.11 More.....
CN-160160 Lincoln Binns Click Part Number For Details £4.23 £3.81 £3.60 £3.49 More.....
CN-220160 Lincoln Binns Click Part Number For Details £5.97 £5.37 £5.07 £4.93 More.....
Length - 220mm
CN-100220 Lincoln Binns Click Part Number For Details £4.41 £3.97 £3.75 £3.64 More.....
CN-128220 Lincoln Binns Click Part Number For Details £5.35 £4.82 £4.55 £4.41 More.....
CN-160220 Lincoln Binns Click Part Number For Details £6.33 £5.70 £5.38 £5.22 More.....
CN-220220 Lincoln Binns Click Part Number For Details £7.23 £6.51 £6.15 £5.96 More.....
Please contact us for stock and price confirmation
Mounting Brackets (ABS Plastic)
Part No Manufacturer Product Information 1+ 10+ 50+ 100+ More.....
UBL50 Lincoln Binns Click Part Number For Details £1.50 £1.35 £1.28 £1.24 More.....
Please contact us for stock and price confirmation
Protective Rubber Feet
Part No Manufacturer Product Information 1+ 10+ 50+ 100+ More.....
PFC1 Lincoln Binns Click Part Number For Details P.O.A. P.O.A. P.O.A. P.O.A. More.....
Please contact us for stock and price confirmation
