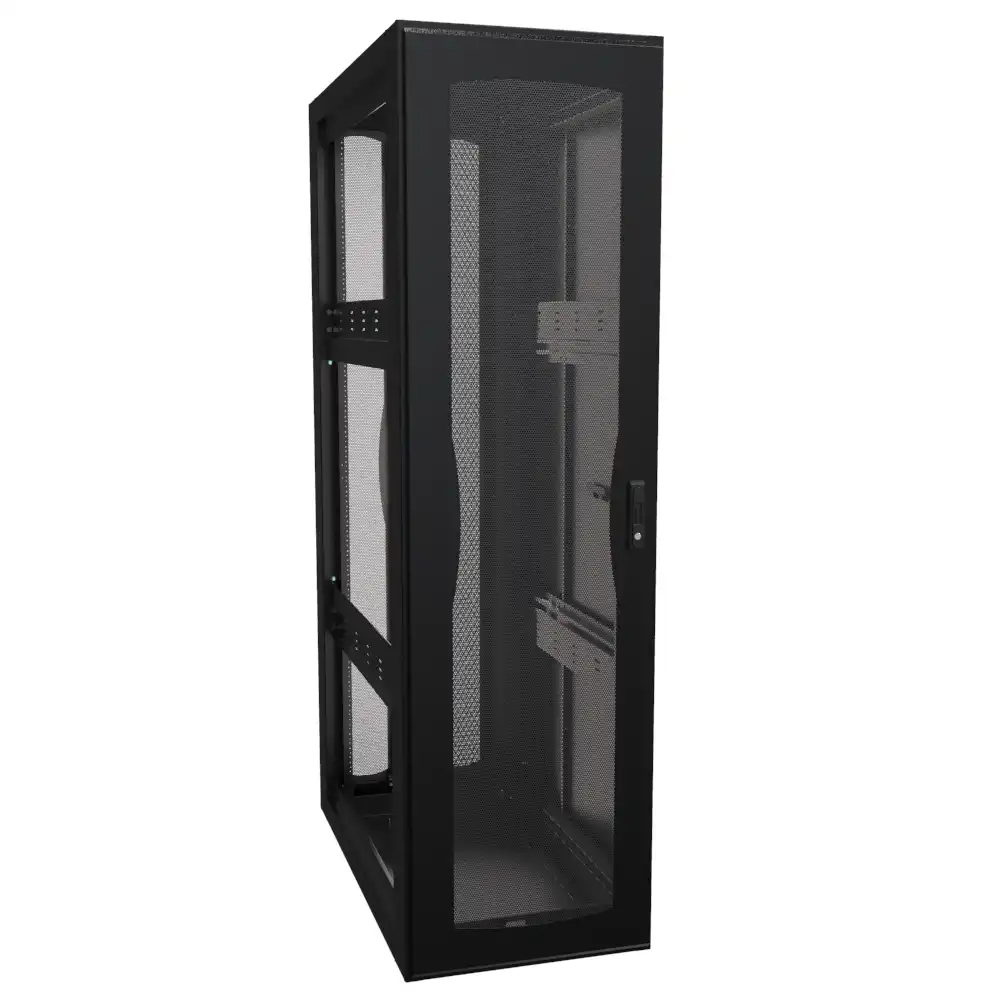

Z4C Series | GR-63-CORE Zone 4 Seismic Server Cabinet
Industry-Leading Seismic Server Cabinet Tested to GR-63-CORE Zone 4 Requirements at a 1,650 lbs. Equipment Load.
Purchase Product Product Data Sheet Customisation Options

The Hammond Z4C Series is an industry-leading seismic server cabinet engineered for telecommunications, utilities, government, transportation and mission-critical infrastructure. Intertek testing subjected a 45U Z4C Series cabinet loaded at 1,650 lbs, to GR-63-CORE zone 4 earthquake conditions, successfully completing testing with no permanent structural or mechanical damage and deflection within GR-63-CORE requirements.

Heavy-gauge welded construction, 12-gauge adjustable mounting rails, high-airflow perforated doors, flexible cable entry, integrated grounding and optional vertical cable management create a complete infrastructure platform for high-density network, server, communications and control equipment. The cabinet is designed for secure floor anchorage without auxiliary structural support, helping simplify installation in demanding seismic environments.
Product Features
  • Heavy-gauge welded steel frame with reinforced construction provides industry-leading seismic strength, with the 45U Z4C successfully Intertek tested to GR-63-CORE zone 4 requirements while loaded at 1,650 lbs.
  • Intertek NEBS verified to GR-63-CORE zone 4 seismic requirements for telecom, utility, government, transportation and other critical infrastructure environments.
  • Base-mounted design was successfully tested without auxiliary structural support, simplifying installation by eliminating the need for overhead seismic bracing.
  • Two (2) pairs of infinitely adjustable-depth mounting rails accommodate equipment with different mounting depths and installation requirements.
    • 12-gauge steel square-hole EIA-310-E mounting rails support servers, switches, telecommunications and other 19" rack-mount equipment.
  • 79% perforated front and split rear doors support front-to-rear airflow for high-density network and server equipment.
    • Three-point latching front and rear doors with combination locking swing handles provide secure equipment access.
  • Four top cable access openings and multiple bottom cable-entry options support overhead and raised-floor cable routing.
  • Supports up to four optional vertical cable managers for organized routing of high-density copper, fiber and power cabling.
  • Removable side and top panels simplify equipment installation, cable routing, maintenance and service access.
  • Integrated grounding provisions support bonding of the cabinet frame, doors, panels and installed equipment.
  • Ganging provisions allow multiple cabinets to be joined for larger infrastructure deployments.
  • Available in 24" and 30" widths, 42U and 45U heights and multiple depths to support a wide range of equipment and installation requirements.
  • Includes the required bolt-down hardware for secure floor anchorage and verified seismic performance.
Product Compliance and Certifications
  • Intertek NEBS verified to GR-63-CORE section 4.4.1 zone 4 earthquake requirements.
  • Seismic rated for 1,500 lbs. of installed equipment and an additional 100 lbs. of overhead cable, when secured with included bolt-down kit.
  • EIA-310-E 19" equipment mounting.
  • TAA-compliant.
  • Manufactured in North America within an ISO 9001 certified facility.
  • Black and white powder coat finishes meet Greenguard gold, TSCA and RoHS requirements.
Included Components
  • Two (2) pairs of infinitely adjustable 19" EIA-310 square-hole mounting rails with rack unit markings.
  • One (1) 79% perforated front door with three-point latching and combination locking swing handle.
  • One (1) 79% perforated split rear door with three-point latching and combination locking swing handles.
  • One (1) rear-mounted PDU tray.
  • One (1) removable solid side panel.
  • One (1) removable top panel with brushed cable entry and fan cutouts.
  • Floor anchoring hardware required for seismic installation.
Where the Z4C Series Works Best
  • Telecommunications central offices and carrier facilities.
  • Utility and power-generation infrastructure.
  • Government and defense facilities.
  • Emergency and public-safety communications.
  • Transportation and public infrastructure networks.
  • Mission-critical network and communications rooms.
  • High-density server and network environments.
  • Facilities located in high-risk seismic regions.
Best Applications for the Z4C Series
  • GR-63-CORE zone 4 telecommunications infrastructure.
  • High-load server and network equipment.
  • Carrier and service-provider equipment rooms.
  • Utility communications and control systems.
  • Emergency communications infrastructure.
  • Government and defense networks.
  • Transportation communications and signaling systems.
  • Critical infrastructure requiring verified seismic performance.
When Another Product May Be a Better Choice
  • When you need a seismic cabinet with individually secured compartments for shared or Colocation environments, consider our CLC Series.
  • When you need an IBC, CBC or NBCC seismic cabinet instead of a NEBS verified zone 4 solution, consider our C4 Series or H1 Series.
  • When you need an open frame solution with NEBS verified zone 4 seismic performance, consider our SR-4P Series.
Hammond Manufacturing Rack Solutions:
KGA Enclosures Ltd is a fully authorised distributor of the Z4C Series from Hammond Manufacturing Rack Solutions. We also stock the entire Hammond Manufacturing Rack Solutions range at great competitive pricing and with full customisation options on all applicable products.

Please remember to always use approved distributors like KGA Enclosures Ltd as some companies sell knock-offs and copies, so using approved suppliers assures you receive a genuine product.

To purchase a product, request a quote/lead time and for all other general enquires, please use our contact form to contact us. We aim to respond promptly to all enquires. Payment options include Bank Transfer, PayPal and Credit/Debit cards. Unfortunately, we do not accept cash and cheques.
Share This Product Range:
Share Range on LinkedIn Share Range on X
Z4C Series | Hammond Manufacturing Rack Solutions | KGA Enclosures Ltd
Product Options
For all ordering, price confirmation and lead times, please email us or call us (+44) 01535 636856
Part No Brand Product Information 1+ 5+ 10+ 25+
Black (RAL 9005)
Z4C2442U42BK Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
Z4C2442U48BK Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
Z4C2442U54BK Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
Z4C2445U42BK Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
Z4C2445U48BK Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
Z4C2445U54BK Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
Z4C3042U42BK Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
Z4C3042U48BK Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
Z4C3042U54BK Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
Z4C3045U42BK Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
Z4C3045U48BK Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
Z4C3045U54BK Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
White (RAL 9003)
Z4C2442U42WH Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
Z4C2442U48WH Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
Z4C2442U54WH Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
Z4C2445U42WH Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
Z4C2445U48WH Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
Z4C2445U54WH Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
Z4C3042U42WH Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
Z4C3042U48WH Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
Z4C3042U54WH Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
Z4C3045U42WH Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
Z4C3045U48WH Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
Z4C3045U54WH Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
For product compatibility and more information, please see the product data sheet.
Product Accessories
For all ordering, price confirmation and lead times, please email us or call us (+44) 01535 636856
Side (Optional)
Part No Brand Product Information 1+ 5+ 10+ 25+
Black (RAL 9005)
Z4CSP42U42BK Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
Z4CSP42U48BK Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
Z4CSP42U54BK Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
Z4CSP45U42BK Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
Z4CSP45U48BK Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
Z4CSP45U54BK Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
White (RAL 9003)
Z4CSP42U42WH Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
Z4CSP42U48WH Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
Z4CSP42U54WH Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
Z4CSP45U42WH Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
Z4CSP45U48WH Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
Z4CSP45U54WH Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
For product compatibility and more information, please see the product data sheet.
Top/Bottom Covers
Part No Brand Product Information 1+ 5+ 10+ 25+
Brushed Cable Entry with Fan Knockouts
Z4CBC2424BK Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
Z4CBC2424WH Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
Z4CBC2448BK Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
Z4CBC2448WH Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
Z4CBC2454BK Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
Z4CBC2454WH Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
Z4CBC3042BK Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
Z4CBC3042WH Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
Z4CBC3048BK Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
Z4CBC3048WH Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
Z4CBC3054BK Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
Z4CBC3054WH Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
Solid
Z4CSC2424BK Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
Z4CSC2424WH Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
Z4CSC2448BK Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
Z4CSC2448WH Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
Z4CSC2454BK Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
Z4CSC2454WH Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
Z4CSC3042BK Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
Z4CSC3042WH Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
Z4CSC3048BK Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
Z4CSC3048WH Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
Z4CSC3054BK Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
Z4CSC3054WH Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
Vented
Z4CVC2424BK Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
Z4CVC2424WH Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
Z4CVC2448BK Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
Z4CVC2448WH Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
Z4CVC2454BK Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
Z4CVC2454WH Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
Z4CVC3042BK Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
Z4CVC3042WH Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
Z4CVC3048BK Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
Z4CVC3048WH Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
Z4CVC3054BK Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
Z4CVC3054WH Hammond Click part number for more details P.O.A. P.O.A. P.O.A. P.O.A.
For product compatibility and more information, please see the product data sheet.

Z4C Series | Cabinet Server Racks - Assembled | Hammond Manufacturing Rack Solutions | KGA Enclosures Ltd

Hammond Manufacturing Customisation Services
Product Customisation Options:
What makes KGA Enclosures Ltd different from most other larger distributors is that we can offer full customisation services on all enclosures and accessories. All customisation work is undertaken by the relevant supplier, (some smaller production runs are done by utilizing an outside contractor) at their own manufacturing facilities. These services include milling or punching holes and slots into the enclosure or end plates for cables, connectors, switches, etc. Printing and silk-screening services all for the addition of text, logos, and graphics onto both the enclosure and end plates, to allow the end user to easily identify the product, and to allow the final product to look more elegant. Contact us today to see how we can assist you.
Modified Electronic Enclosures:
Almost every enclosure will need some kind of modification to be useful. In house, modifications can be tedious, over-complicated, and a distraction from your core business. A third party shop can add time and expense. Let us help you by delivering quality products made to your exact specifications.
Why Use Hammond Manufacturing?
  • Hammond offers a wide selection and massive inventory ready to be modified.
  • Typically, the minimum order is 25 units. This can vary depending on the product and services required.
  • Hammond has an experience enclosure modification team and two dedicated modification facilities located in North America and Europe. We are knowledgeable, available, and capable.
  • Hammond helps eliminate scrap and design errors with approval drawings to confirm correct interpretation of your design requirements. Many orders will also include fast delivery of sample enclosures for inspection. These steps ensure that your assembly fits perfectly before heading to the production stage.
Popular Modification Services Offered:
  • Holes.
  • Cutouts.
  • Tapping and Countersinking.
  • Pressed-in hardware (studs, standoffs).
  • Silk Screening.
  • UV Printing.
  • Special colours.
  • Special length extrusions.
  • Pre-Installed Accessories.
  • Available services vary by product.
