Product Information
Part No C4RR307736ABK
Product Series C4RR_A Series
Product Type Cabinet Server Racks - Assembled
RoHS Compliant Yes
REACH Compliant Yes
Share Me - C4RR307736ABK Share on Facebook Share on LinkedIn Share on X

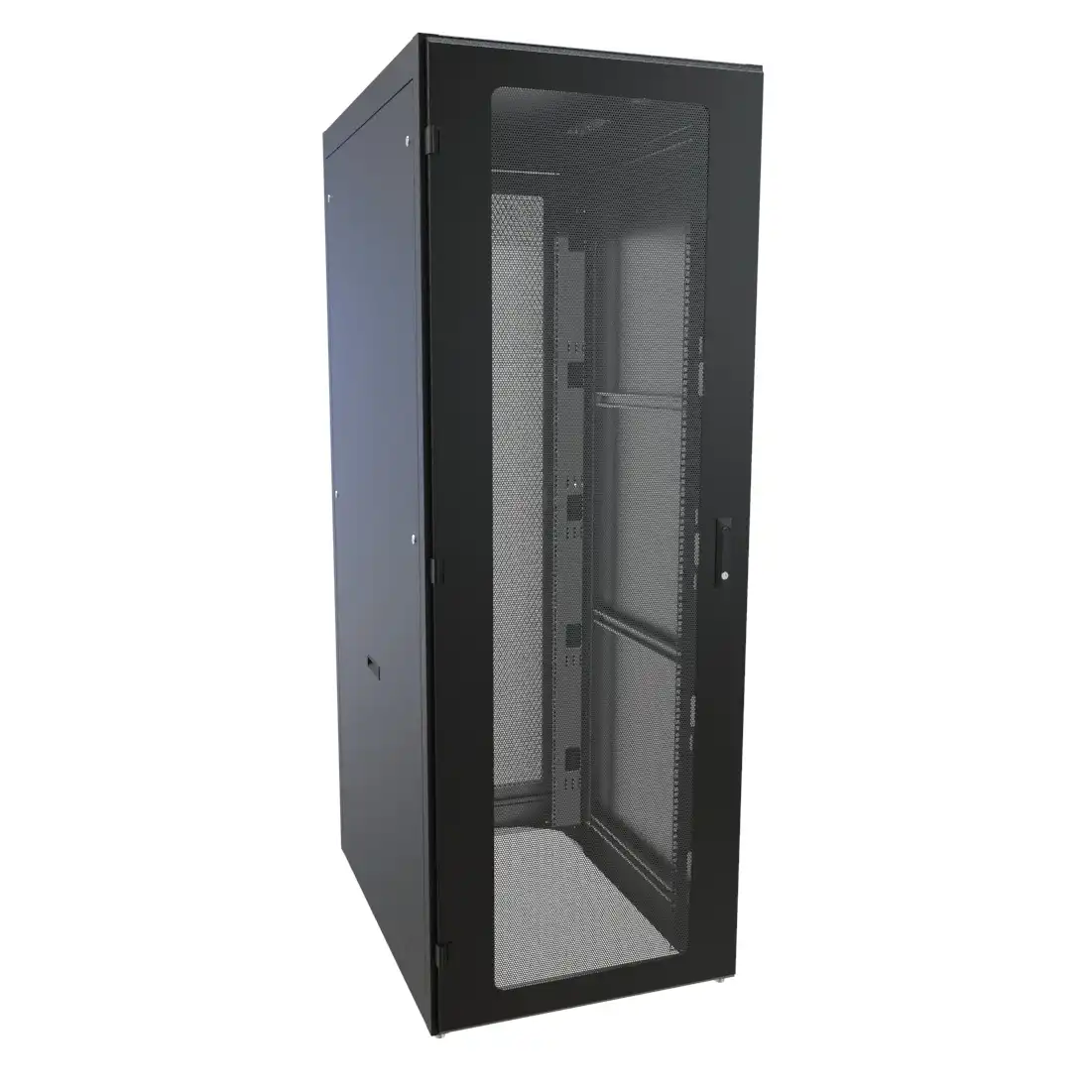

C4RR_A Series | Pre-Configured Server Rack Cabinet (3,000 lbs. Capacity)
High-Capacity Assembled Server Cabinet Based on the C4 Series Platform for Fast Deployment in Data Center and IT Environments.
Purchase Product Product Data Sheet Customisation Options

The C4RR_A Series is a pre-configured, fully assembled server rack cabinet built on Hammond's modular C4 Series platform. Available in 24U, 42U and 44U configuration, it combines a 3,000 lbs. UL 2416 load rating, 79% open-area doors, adjustable square-hole mounting rails and multiple width and depth options for demanding IT and data center installations.

Designed to reduce cabinet specification and installation time, the C4RR_A Series provides a standardized configuration while retaining access to the extensive C4 Series accessory ecosystem for cable management, power distribution, airflow management, grounding and future expansion.
Product Features
  • 14-gauge welded steel frame with reinforced 12-gauge corner brackets and 16-gauge doors and side panels; UL listed 2416 with a 3,000 lbs. load rating for server, network, storage and IT equipment.
  • Ships assembled with factory-installed components (based on the C4 Series platform) to reduce on-site installation time and support faster deployment.
  • Two (2) pairs of adjustable depth EIA-compliant square hole 19" mounting rails constructed of 12-gauge steel support standard rack equipment and flexible configurations. Includes a starter pack of CAGKIT1032-25 screws and cage nuts.
  • Perforated front and split rear doors with 79% open area and locking swing-handles support airflow requirements for active IT equipment.
  • Removable side panels with 1/4-turn latches support easier installation and maintenance.
  • Available in 24" and 30" widths, providing additional side space for cabling, vertical cable management and power distribution without obstructing the 19" mounting space.
  • Locking front and rear doors and removable side panels help provide physical equipment security for installations subject to PCI DSS requirements.
  • One interchangeable top panel with four 3.5" cable entry holes and two fan knockouts with brushed cable entry supports overhead routing and airflow integration.
  • Grounding and bonding provisions include 1/2-20 bonding collar studs in the frame and additional #10-32 studs on compatible doors and side panels.
  • Factory-installed nylon leveling feet and mounting points for optional casters support installation flexibility.
Product Compliance and Certifications
  • UL listed 2416 load rated to 3,000 lbs. (1,360 kg.) ensures verified structural performance for high-capacity installations.
  • Seismic rated to 1,200 lbs. (544 kg.) dynamic load (Ip = 1.5) in accordance with IBC 2018, CBC 2019, NBC 2015, ASCE 7-16 and ASCE 7-10, when secured with a seismic bolt-down kit such as the C4K-Z4.
  • Meets PCI DSS (payment card industry data security standard) compliance requirements.
  • TAA-compliant, manufactured in North America supports government procurement requirements and ensures consistent quality.
  • Textured black (RAL 9005) powder coat finish meets Greenguard gold, TSCA and RoHS requirements.
Included Components
  • Welded steel frame with factory-installed nylon leveling feet, ground studs and mounting points for optional casters.
  • Two (2) pairs of adjustable depth EIA-compliant square hole punched mounting rails.
  • Two (2) removable side panels (with 1/4 turn latches).
  • One (1) top panel with two (2) fan knockout with brushed cable entry.
  • One (1) vented front door with locking swing-handle.
  • One (1) vented split/barn rear door with locking swing-handle.
Where the C4RR_A Series Works Best
  • Enterprise data centers.
  • Server and equipment rooms.
  • MDF and core network rooms.
  • Corporate IT infrastructure.
  • Education and institutional networks.
  • Government IT environments.
  • Edge and distributed computing locations.
  • Installations requiring standardized cabinet configurations.
Best Applications for the C4RR_A Series
  • Servers and storage systems.
  • Networking switching and routing equipment.
  • UPS and power distribution equipment.
  • High-density patching and connectivity.
  • Equipment requiring front-to-rear airflow.
  • Multi-cabinet server and network deployments.
When Another Product May Be a Better Choice
  • When you need a fully modular cabinet system for custom configurations, consider our C4 Series.
  • When you need a complete high-performance cabinet with enhanced cooling, cable management and security features, consider our H1 Series.
  • When you need a cost-effective assembled cabinet, consider our RB-DC Series.
