S2CB Series - OIE - Modular Console System - Hammond Manufacturing Electrical Enclosures

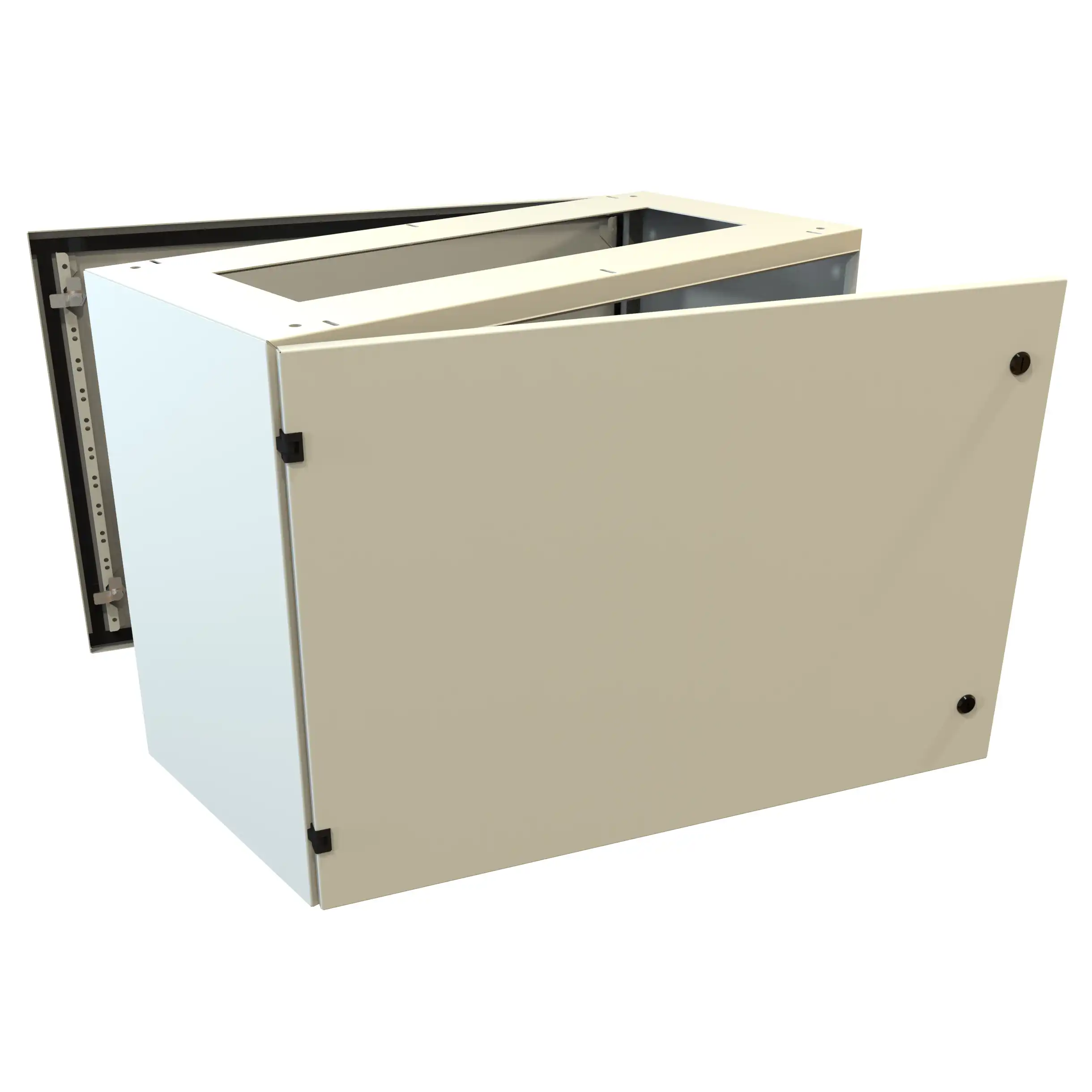

S2CB Series - Type 4, 4X Mild Steel and Stainless Steel Base Units
Modular Console System
Product Application:
- Flexible design provides panel mount or rack mount capabilities for a variety of applications.
- Generally used in combination with other modular console components (i.e. another base, terminal, desk and/or turret).
- Available in either single or dual access format.
- Smooth lines and clean edges provide at attractive, contemporary appearance.
Product Construction:
- Formed 14 gauge steel bodies with 14 gauge steel door.
- Also offered with formed 14 gauge 304 stainless steel bodies with 14 gauge 304 stainless steel door.
- Smooth, continuously welded seams.
- Body stiffeners are provided where required for increased strength and rigidity.
- Offered in 4 widths 24", 36", 48" and 69".
- Single access version has solid sides and back, solid door on front, open top, and closed bottom with removable access panel.
- Dual access version is same as above except has solid door on both front and back.
- 24" and 36" widths have single door on the front (and back for dual access) whereas 48" and 60" widths have two outside hinged doors on the front (and back for dual access).
- Doors can be hinged from either side on 24" and 36" units.
- Door profiles provide increased strength and are pre-punched to provide mounting options.
- Formed lip on enclosure excludes flowing liquids and contaminants.
- Slotted quarter turn oil-tight latches secure the door, with optional tamper resistant and locking latches available.
- Stainless steel models utilize stainless steel hardware.
- Oil resistant gaskets are permanently secured.
- Features several internal stud locations for mounting of various accessories.
- A bonding screw is provided on the door and a grounding stud is provided in the enclosure.
Product Finish:
- Available in RAL 7035 light grey textured powder coating and natural stainless steel with a smooth, brushed finish.
- Base covers are available in the same finishes.
Product Standards:
- UL 508A Type 3R, 4, 12 (Stainless Steel, add 4X).
- CSA Type 3R, 4, 12, 13 (Stainless Steel, add 4X).
- EIA RS-310-E.
- Complies with:
- NEMA Type 3R, 4, 12 (Stainless Steel, add 4X).
- IEC 60529, IP66.
Hammond Manufacturing Electrical Enclosures
KGA Enclosures Ltd are full authorised distributors of the Hammond Manufacturing Electrical Enclosures product range. This entire range is available from KGA Enclosures Ltd at great competitive pricing and with full customisation options on all applicable products.
Please Remember - Only use authorised distributors to purchase these products. Using authorised distributors will guarantee you receiving a genuine product which, by using KGA Enclosures, we can guarantee you receiving.
Please Remember - Only use authorised distributors to purchase these products. Using authorised distributors will guarantee you receiving a genuine product which, by using KGA Enclosures, we can guarantee you receiving.
Share This Product Range |
|---|
   |
Hammond Manufacturing Product Ranges
Did you know, the entire Hammond Manufacturing product range is all available here at KGA Enclosures Ltd. If you find a lower price, we aim to match and beat it. For more information on any range, please click the link below.
- View - Hammond Enclosures Range
- View - Hammond Electrical Enclosures Range
- View - Hammond Power Distribution Range
- View - Hammond Rack Solutions Range
- View - Hammond Transformers Range
- View - Ritec Plastic Enclosures Range
The S2CB Series - OIE - Modular Console System - From Hammond Manufacturing Electrical Enclosures are available from KGA Enclosures, at great low prices.
| Product Options |
| Part No | Brand | Product Information | 1+ | 10+ | 25+ | 50+ |
|---|---|---|---|---|---|---|
| Single Access - RAL 7035 - Light Grey | ||||||
| 2CLB262418 | Hammond | Please Click Part Number For More Details | P.O.A. | P.O.A. | P.O.A. | P.O.A. |
| 2CLB263618 | Hammond | Please Click Part Number For More Details | P.O.A. | P.O.A. | P.O.A. | P.O.A. |
| 2CLB264818 | Hammond | Please Click Part Number For More Details | P.O.A. | P.O.A. | P.O.A. | P.O.A. |
| 2CLB266018 | Hammond | Please Click Part Number For More Details | P.O.A. | P.O.A. | P.O.A. | P.O.A. |
| Single Access - Stainless Steel | ||||||
| 2CSB262418 | Hammond | Please Click Part Number For More Details | P.O.A. | P.O.A. | P.O.A. | P.O.A. |
| 2CSB263618 | Hammond | Please Click Part Number For More Details | P.O.A. | P.O.A. | P.O.A. | P.O.A. |
| 2CSB264818 | Hammond | Please Click Part Number For More Details | P.O.A. | P.O.A. | P.O.A. | P.O.A. |
| 2CSB266018 | Hammond | Please Click Part Number For More Details | P.O.A. | P.O.A. | P.O.A. | P.O.A. |
| Dual Access - RAL 7035 - Light Grey | ||||||
| 2CLBX262418 | Hammond | Please Click Part Number For More Details | P.O.A. | P.O.A. | P.O.A. | P.O.A. |
| 2CLBX263618 | Hammond | Please Click Part Number For More Details | P.O.A. | P.O.A. | P.O.A. | P.O.A. |
| 2CLBX264818 | Hammond | Please Click Part Number For More Details | P.O.A. | P.O.A. | P.O.A. | P.O.A. |
| 2CLBX266018 | Hammond | Please Click Part Number For More Details | P.O.A. | P.O.A. | P.O.A. | P.O.A. |
| Dual Access - Stainless Steel | ||||||
| 2CSBX262418 | Hammond | Please Click Part Number For More Details | P.O.A. | P.O.A. | P.O.A. | P.O.A. |
| 2CSBX263618 | Hammond | Please Click Part Number For More Details | P.O.A. | P.O.A. | P.O.A. | P.O.A. |
| 2CSBX264818 | Hammond | Please Click Part Number For More Details | P.O.A. | P.O.A. | P.O.A. | P.O.A. |
| 2CSBX266018 | Hammond | Please Click Part Number For More Details | P.O.A. | P.O.A. | P.O.A. | P.O.A. |
| Contact Us For Lead Times and Pricing Confirmation |
|---|
