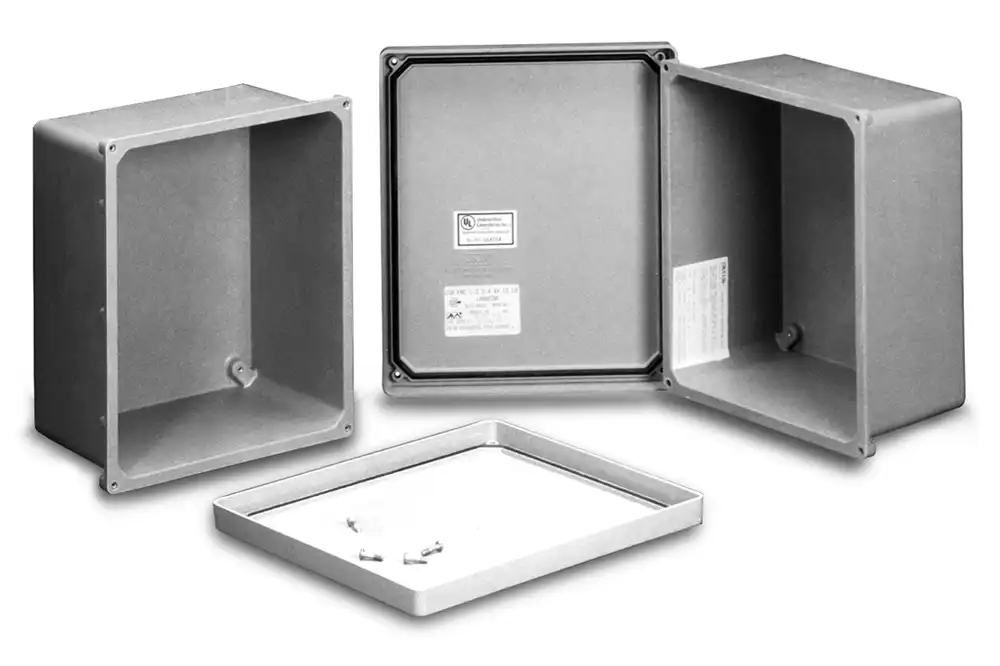

PJ Series - Type 4X Polyester Junction Box

Lift-Off Cover/Hinged Door With Screws

Product Application:

Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
Provides outstanding insulation and protection where equipment may be hosed down or be very wet.
Ideal in applications with high temperatures or highly corrosive environments.

Product Construction:

Moulded fiberglass polyester enclosure with matching cover is easily punched, cut, or drilled.
Enhanced UV inhibitors protect against outdoor weathering.
Standard JIC sizes under 18" x 16".
10-32 threaded brass inserts are provided for optional inner panel or terminal kit mounting. Mounting hardware included.
Cover is fastened with captive stainless steel screws in threaded brass inserts.
Captive oil resistant gasket provides a positive seal.
Threaded brass inserts are provided for mounting feet to the rear of the enclosure.
Stainless steel mounting brackets and hardware are provided for mounting feet to the rear of the enclosure.
Operating temperatures between 130°C and -40°C (266°F to -40°F).
Impact index of 6.78J (5 ft/lb).

Product Finish:

Fiberglass polyester material has a grey finish.
Optional inner panels are available in white powder coated finished steel, unfinished aluminium, or fiberglass.

Product Standards:

UL 508A Type 1, 2, 3, 4, 4X, 12 and 13.
UL 508A Type 6P.
cUL Type 1, 2, 3, 4, 4X, 12 and 13 per CSA 22.2 No. 94.
cUL Type 6P.
Complies with:
- NEMA Type 1, 2, 3, 4, 4X, 12 and 13.
- IEC 60529, IP66.

How To Order

To order any product or confirm lead times for delivery, please email sales@kgaenclosures.com and include the following:

Company / Contact Name
Full Delivery Address
Contact Telephone Number
E-Mail Address
Confirmation of Part Number and Quantities Required

Or call 01535 636856. We aim to answer all E-Mail inquiries as quickly as possible.

Hammond Manufacturing Electrical Enclosures

KGA Enclosures Ltd are full authorised distributors of the Hammond Manufacturing Electrical Enclosures product range. This entire range is available from KGA Enclosures Ltd at great competitive pricing and with full customisation options on all applicable products.

To purchase any product or for more information on any product offered, simply call (+44) 01535 636856 or E-Mail: sales@kgaenclosures.com, where we will be happy to assist you.

View the Hammond Manufacturing Electrical Enclosures Range
View the Hammond Manufacturing Electrical Enclosures Price List

Or view the related product ranges from Hammond Manufacturing, which are all available from KGA Enclosures Ltd. Including the:

Hammond Manufacturing Enclosures Range
Hammond Manufacturing Power Distribution Range
Hammond Manufacturing Rack Systems Range
Hammond Manufacturing Transformers Range
Ritec Plastic Enclosures Range

Customisation Options

What makes KGA Enclosures Ltd different from most other larger distributors is that we offer full customisation's services on all enclosures and accessories. All customisation work is undertaken by the relevant supplier, (some small projects are done utilizing outside contractors) at their own manufacturing facilities. These services include milling or punching of hole and slots into the enclosure or end plates for cables, connectors, switches etc. Printing and silk screening services allows for the additional of text, logo's and graphics onto both the enclosure and end plates, to allow the end user to easily identify the product as well as giving the final product a more elegant finish. Full customisation services - Click here for more information on full customisation services.

Share This Product

PJ Series - Hammond Manufacturing Electrical Enclosures at KGA Enclosures Ltd

View Product Data Sheet
Product Options

Part No	Product Information	1+	10+	25+	50+	More
Lift-Off Cover
PJ1084	Please Click Link For More Information	P.O.A.	P.O.A.	P.O.A.	P.O.A.	More....
PJ1086	Please Click Link For More Information	P.O.A.	P.O.A.	P.O.A.	P.O.A.	More....
PJ12106	Please Click Link For More Information	P.O.A.	P.O.A.	P.O.A.	P.O.A.	More....
PJ12124	Please Click Link For More Information	P.O.A.	P.O.A.	P.O.A.	P.O.A.	More....
PJ12126	Please Click Link For More Information	P.O.A.	P.O.A.	P.O.A.	P.O.A.	More....
PJ14126	Please Click Link For More Information	P.O.A.	P.O.A.	P.O.A.	P.O.A.	More....
PJ16148	Please Click Link For More Information	P.O.A.	P.O.A.	P.O.A.	P.O.A.	More....
PJ18168	Please Click Link For More Information	P.O.A.	P.O.A.	P.O.A.	P.O.A.	More....
PJ20168	Please Click Link For More Information	P.O.A.	P.O.A.	P.O.A.	P.O.A.	More....
PJ664	Please Click Link For More Information	P.O.A.	P.O.A.	P.O.A.	P.O.A.	More....
PJ864	Please Click Link For More Information	P.O.A.	P.O.A.	P.O.A.	P.O.A.	More....
Hinged Cover
PJ1084H	Please Click Link For More Information	P.O.A.	P.O.A.	P.O.A.	P.O.A.	More....
PJ1086H	Please Click Link For More Information	P.O.A.	P.O.A.	P.O.A.	P.O.A.	More....
PJ12106H	Please Click Link For More Information	P.O.A.	P.O.A.	P.O.A.	P.O.A.	More....
PJ12124H	Please Click Link For More Information	P.O.A.	P.O.A.	P.O.A.	P.O.A.	More....
PJ12126H	Please Click Link For More Information	P.O.A.	P.O.A.	P.O.A.	P.O.A.	More....
PJ14126H	Please Click Link For More Information	P.O.A.	P.O.A.	P.O.A.	P.O.A.	More....
PJ16148H	Please Click Link For More Information	P.O.A.	P.O.A.	P.O.A.	P.O.A.	More....
PJ18168H	Please Click Link For More Information	P.O.A.	P.O.A.	P.O.A.	P.O.A.	More....
PJ20168H	Please Click Link For More Information	P.O.A.	P.O.A.	P.O.A.	P.O.A.	More....
PJ664H	Please Click Link For More Information	P.O.A.	P.O.A.	P.O.A.	P.O.A.	More....
PJ864H	Please Click Link For More Information	P.O.A.	P.O.A.	P.O.A.	P.O.A.	More....
For pricing confirmation and stock availability please contact us

Product Accessories

Inner Panels

Part No	Product Information	1+	10+	25+	50+	More
14R0505	Please Click Link For More Information	£4.38	£4.03	£3.94	£3.81	More....
14R0705	Please Click Link For More Information	£4.93	£4.54	£4.44	£4.29	More....
14R0907	Please Click Link For More Information	£6.61	£6.08	£5.95	£5.75	More....
14R1109	Please Click Link For More Information	£8.92	£8.21	£8.03	£7.76	More....
14R1111	Please Click Link For More Information	P.O.A.	P.O.A.	P.O.A.	P.O.A.	More....
14R1311	Please Click Link For More Information	£11.60	£10.67	£10.44	£10.09	More....
14R1513	Please Click Link For More Information	£15.31	£14.09	£13.78	£13.32	More....
P1868	Please Click Link For More Information	£29.48	£27.12	£26.53	£25.65	More....
P2068	Please Click Link For More Information	£32.91	£30.28	£29.62	£28.63	More....
For pricing confirmation and stock availability please contact us
