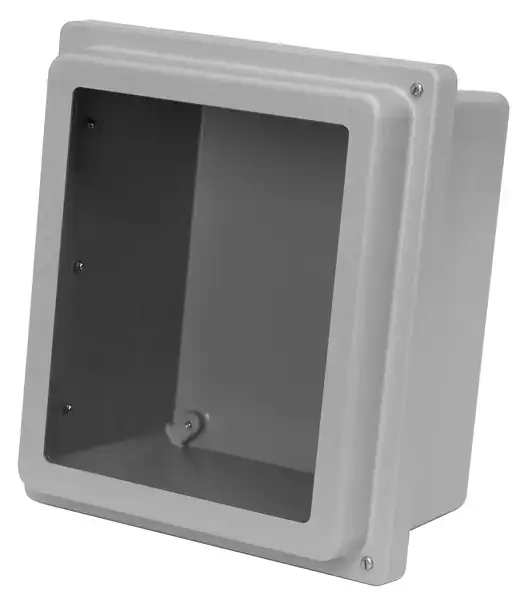

PJR Series - Type 4X Polyester Junction Box with Raised Lid (Solid and Window)
Lift-Off Cover/Hinged Door with Screws
Product Application
  • Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
  • Provides outstanding insulation and protection where equipment may be hosed down or be very wet.
  • Ideal in applications with high temperatures or highly corrosive environments.
Product Construction
  • Moulded fiberglass polyester enclosure with matching cover is easily punched, cut, or drilled.
  • Enhanced UV inhibitors protect against outdoor weathering.
  • Standard JIC sizes under 18" x 16".
  • Threaded brass inserts are provided for optional inner panel or terminal kit mounting. Mounting hardware is included.
  • Cover fastened with captive stainless steel screws in threaded brass inserts.
  • Door fasteners include a provision for padlocking.
  • Enclosures are available with bonded polycarbonate viewing windows.
  • Door is supported with a continuous stainless steel hinge.
  • Captive oil resistant gasket provides a positive seal.
  • Threaded brass inserts are provided for mounting feet to the rear of the enclosure.
  • Stainless steel mounting brackets and hardware are provided for mounting to the rear of the enclosure.
  • Operating temperatures between 130°C and -40°C (266°F to -40°F).
  • Impact index of 6.78J (5 ft/lb).
Product Finish
  • Fiberglass polyester material has a grey finish.
  • Optional inner panels are available in white powder coated finished steel or unfinished aluminium, or fiberglass.
Product Standards
  • UL 508A Type 1, 2, 3, 4, 4X, 12 and 13.
  • cUL Type 1, 2, 3, 4, 4X, 12 and 13 per CSA 22.2 No. 94.
  • Complies with:
    • NEMA Type 1, 2, 3, 4, 4X, 12 and 13.
    • IEC 60529, IP66.
Hammond Manufacturing Electrical Enclosures
KGA Enclosures Ltd are full authorised distributors of the Hammond Manufacturing Electrical Enclosures product range. This entire range is available from KGA Enclosures Ltd at great competitive pricing and with full customisation options on all applicable products.

Please remember - KGA Enclosures Ltd are authorised distributors of this product range. Please only use authorised distributors to purchase these products. This will then ensure you receive a genuine product.
How To Purchase Products
Please note - KGA Enclosures currently does not accept orders via our website, all orders need to be e-mailed to us, at sales@kgaenclosures.com.

To purchase any product or for more assistance, please contact KGA Enclosures Ltd, by phone (+44) 01535 636856 or E-Mail: sales@kgaenclosures.com.

Please include the following information when placing an order or requesting a quote (where applicable).
  • Confirmation of items and quantities required.
  • Contact name.
  • Company name.
  • Full shipping address, and billing address if different from shipping.
  • Contact telephone number.
  • E-Mail address.
  • VAT/EORI Number (Only for orders outside the UK).
Once we receive any E-Mail, we aim to respond within 24 hours.
Payment Options
Payment options accepted at KGA Enclosures Ltd include:
  • Bank Transfers (BACS).
  • Cheques.
  • Credit/Debit cards.
  • PayPal.
Unfortunately, CASH is not accepted for payment.
Please note - All bank details and payment options are detailed on the invoice.
Hammond Manufacturing Product Ranges
Did you know you can find the entire Hammond Manufacturing product range here at KGA Enclosures Ltd?

We offer all of these products at great competitive prices and with full customisation options where applicable. If you find a lower price, we will match it and beat it. That is our guarantee. For more information on any range, please click the links below:
Share This Product Range
Share on Facebook Share on LinkedIn Share on X
PJR Series | Hammond Manufacturing Electrical Enclosures | KGA Enclosures Ltd
Product Data Sheet
Return To Product Range
Product Options
Please email all orders and enquiries to sales@kgaenclosures.com
Part No Manufacturer Product Information 1+ 10+ 25+ 50+ More.....
Raised Hinged / Cover - Solid
PJ1084RH Hammond Click Part Number For Details P.O.A. P.O.A. P.O.A. P.O.A. More.....
PJ1086RH Hammond Click Part Number For Details P.O.A. P.O.A. P.O.A. P.O.A. More.....
PJ12106RH Hammond Click Part Number For Details P.O.A. P.O.A. P.O.A. P.O.A. More.....
PJ12124RH Hammond Click Part Number For Details P.O.A. P.O.A. P.O.A. P.O.A. More.....
PJ12126RH Hammond Click Part Number For Details P.O.A. P.O.A. P.O.A. P.O.A. More.....
PJ14126RH Hammond Click Part Number For Details P.O.A. P.O.A. P.O.A. P.O.A. More.....
PJ16148RH Hammond Click Part Number For Details P.O.A. P.O.A. P.O.A. P.O.A. More.....
PJ18168RH Hammond Click Part Number For Details P.O.A. P.O.A. P.O.A. P.O.A. More.....
PJ20168RH Hammond Click Part Number For Details P.O.A. P.O.A. P.O.A. P.O.A. More.....
PJ664RH Hammond Click Part Number For Details P.O.A. P.O.A. P.O.A. P.O.A. More.....
PJ864RH Hammond Click Part Number For Details P.O.A. P.O.A. P.O.A. P.O.A. More.....
Raised Lift-Off / Cover - Solid
PJ1084R Hammond Click Part Number For Details P.O.A. P.O.A. P.O.A. P.O.A. More.....
PJ1086R Hammond Click Part Number For Details P.O.A. P.O.A. P.O.A. P.O.A. More.....
PJ12106R Hammond Click Part Number For Details P.O.A. P.O.A. P.O.A. P.O.A. More.....
PJ12124R Hammond Click Part Number For Details P.O.A. P.O.A. P.O.A. P.O.A. More.....
PJ12126R Hammond Click Part Number For Details P.O.A. P.O.A. P.O.A. P.O.A. More.....
PJ14126R Hammond Click Part Number For Details P.O.A. P.O.A. P.O.A. P.O.A. More.....
PJ16148R Hammond Click Part Number For Details P.O.A. P.O.A. P.O.A. P.O.A. More.....
PJ18168R Hammond Click Part Number For Details P.O.A. P.O.A. P.O.A. P.O.A. More.....
PJ20168R Hammond Click Part Number For Details P.O.A. P.O.A. P.O.A. P.O.A. More.....
PJ664R Hammond Click Part Number For Details P.O.A. P.O.A. P.O.A. P.O.A. More.....
PJ864R Hammond Click Part Number For Details P.O.A. P.O.A. P.O.A. P.O.A. More.....
Raised Window / Cover - Hinged
PJ1084RHW Hammond Click Part Number For Details P.O.A. P.O.A. P.O.A. P.O.A. More.....
PJ1086RHW Hammond Click Part Number For Details P.O.A. P.O.A. P.O.A. P.O.A. More.....
PJ12106RHW Hammond Click Part Number For Details P.O.A. P.O.A. P.O.A. P.O.A. More.....
PJ12124RHW Hammond Click Part Number For Details P.O.A. P.O.A. P.O.A. P.O.A. More.....
PJ12126RHW Hammond Click Part Number For Details P.O.A. P.O.A. P.O.A. P.O.A. More.....
PJ14126RHW Hammond Click Part Number For Details P.O.A. P.O.A. P.O.A. P.O.A. More.....
PJ16148RHW Hammond Click Part Number For Details P.O.A. P.O.A. P.O.A. P.O.A. More.....
PJ18168RHW Hammond Click Part Number For Details P.O.A. P.O.A. P.O.A. P.O.A. More.....
PJ20168RHW Hammond Click Part Number For Details P.O.A. P.O.A. P.O.A. P.O.A. More.....
PJ664RHW Hammond Click Part Number For Details P.O.A. P.O.A. P.O.A. P.O.A. More.....
PJ864RHW Hammond Click Part Number For Details P.O.A. P.O.A. P.O.A. P.O.A. More.....
Raised Window / Cover - Lift Off
PJ1084RW Hammond Click Part Number For Details P.O.A. P.O.A. P.O.A. P.O.A. More.....
PJ1086RW Hammond Click Part Number For Details P.O.A. P.O.A. P.O.A. P.O.A. More.....
PJ12106RW Hammond Click Part Number For Details P.O.A. P.O.A. P.O.A. P.O.A. More.....
PJ12124RW Hammond Click Part Number For Details P.O.A. P.O.A. P.O.A. P.O.A. More.....
PJ12126RW Hammond Click Part Number For Details P.O.A. P.O.A. P.O.A. P.O.A. More.....
PJ14126RW Hammond Click Part Number For Details P.O.A. P.O.A. P.O.A. P.O.A. More.....
PJ16148RW Hammond Click Part Number For Details P.O.A. P.O.A. P.O.A. P.O.A. More.....
PJ18168RW Hammond Click Part Number For Details P.O.A. P.O.A. P.O.A. P.O.A. More.....
PJ20168RW Hammond Click Part Number For Details P.O.A. P.O.A. P.O.A. P.O.A. More.....
PJ664RW Hammond Click Part Number For Details P.O.A. P.O.A. P.O.A. P.O.A. More.....
PJ864RW Hammond Click Part Number For Details P.O.A. P.O.A. P.O.A. P.O.A. More.....
Please contact us for stock and price confirmation
Product Accessories
Please refer to the product data sheet for accessory compatibility
Inner Panels
Part No Manufacturer Product Information 1+ 10+ 25+ 50+ More.....
14R0505 Hammond Click Part Number For Details £4.38 £4.03 £3.94 £3.81 More.....
14R0705 Hammond Click Part Number For Details £4.93 £4.54 £4.44 £4.29 More.....
14R0907 Hammond Click Part Number For Details £6.61 £6.08 £5.95 £5.75 More.....
14R1109 Hammond Click Part Number For Details £8.92 £8.21 £8.03 £7.76 More.....
14R1111 Hammond Click Part Number For Details P.O.A. P.O.A. P.O.A. P.O.A. More.....
14R1311 Hammond Click Part Number For Details £11.60 £10.67 £10.44 £10.09 More.....
14R1513 Hammond Click Part Number For Details £15.31 £14.09 £13.78 £13.32 More.....
P1868 Hammond Click Part Number For Details £29.48 £27.12 £26.53 £25.65 More.....
P2068 Hammond Click Part Number For Details £32.91 £30.28 £29.62 £28.63 More.....
Please contact us for stock and price confirmation
Hammond Manufacturing Customisation Services
Product Customisation Options
What makes KGA Enclosures Ltd different from most other larger distributors is that we can offer full customisation services on all enclosures and accessories. All customisation work is undertaken by the relevant supplier, (some smaller production runs are done by utilizing an outside contractor) at their own manufacturing facilities. These services include milling or punching holes and slots into the enclosure or end plates for cables, connectors, switches, etc. Printing and silk-screening services all for the addition of text, logos, and graphics onto both the enclosure and end plates, to allow the end user to easily identify the product, and to allow the final product to look more elegant. Contact us today to see how we can assist you.
Modified Electronic Enclosures
Almost every enclosure will need some kind of modification to be useful. In house, modifications can be tedious, over-complicated, and a distraction from your core business. A third party shop can add time and expense. Let us help you by delivering quality products made to your exact specifications.
Why Use Hammond Manufacturing?
  • Hammond offers a wide selection and massive inventory ready to be modified.
  • Typically, the minimum order is 25 units. This can vary depending on the product and services required.
  • Hammond has an experience enclosure modification team and two dedicated modification facilities located in North America and Europe. We are knowledgeable, available, and capable.
  • Hammond helps eliminate scrap and design errors with approval drawings to confirm correct interpretation of your design requirements. Many orders will also include fast delivery of sample enclosures for inspection. These steps ensure that your assembly fits perfectly before heading to the production stage.
Popular Modification Services Offered
  • Holes.
  • Cutouts.
  • Tapping and Countersinking.
  • Pressed-in hardware (studs, standoffs).
  • Silk Screening.
  • UV Printing.
  • Special colours.
  • Special length extrusions.
  • Pre-Installed Accessories.
  • Available services vary by product.
