1210GY | Hammond Manufacturing Enclosures
1210GY | Hammond Manufacturing Enclosures | KGA Enclosures Ltd

Product Price Breakdown
1+ £8.30
10+ £7.63
25+ £7.47
50+ £7.22
100+ £7.13
250+ £7.05
500+ £6.97
1000+ £6.93
2500+ £6.84
In Stock Prices shown excludes VAT
Product Information
Part No 1210GY
Product Series 1210 Series
Series1210
ColourGrey
MaterialFlame Retardant ABS Plastic
Length132mm
Width75mm
Depth62mm
IP RatingIP54
Flammability RatingUL94 V-0
Technical Drawingspdf     dxf     stp     3d
RoHS Compliant Yes
REACH Compliant Yes
Share Me - 1210GY Share Product on Facebook Share Product on Twitter Share Product on LinkedIn

1210GY | 1210 Series | Hammond Manufacturing Enclosures | KGA Enclosures Ltd

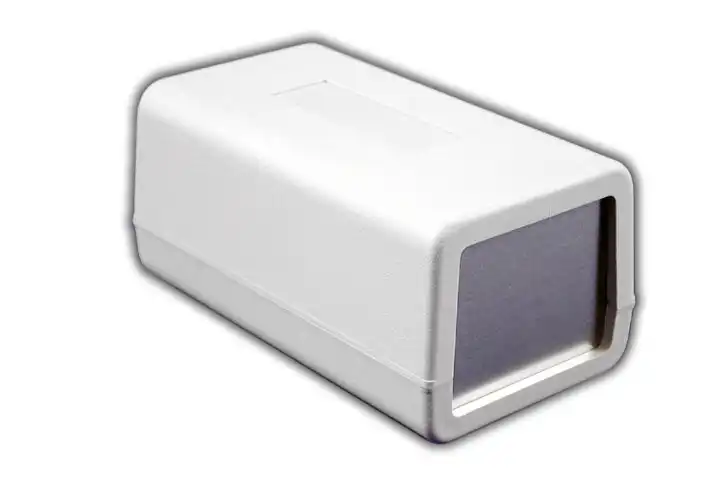

1210 Series - Bench Case Enclosures
Flame Retardant ABS With Aluminium Panel - (Product Range Discontinued - Information Only)

Product Features
  • The bench case is a British-designed plastic enclosure.
  • Ideally suited for mounting printed circuit boards for use in bench top applications.
  • Moulded in a choice of black (RAL 9005) or grey (RAL 9018) - flame retardant ABS plastic.
  • Satin texture finish.
  • Complete with plastic top and bottom, removable aluminium front panel, four rubber self adhesive feet, and four self tapping screws.
  • The top panel and bottom halves include a flat display area, perfect for labels or silk screening.
  • The base is moulded with six bosses for easy P.C. board mounting (see drawings for locations and P.C. board size).
  • The removable 1.5mm thick aluminium end panel is securely clamped by the two box halves and easily customised.
  • Hole in rear of enclosure for easy cord access.
