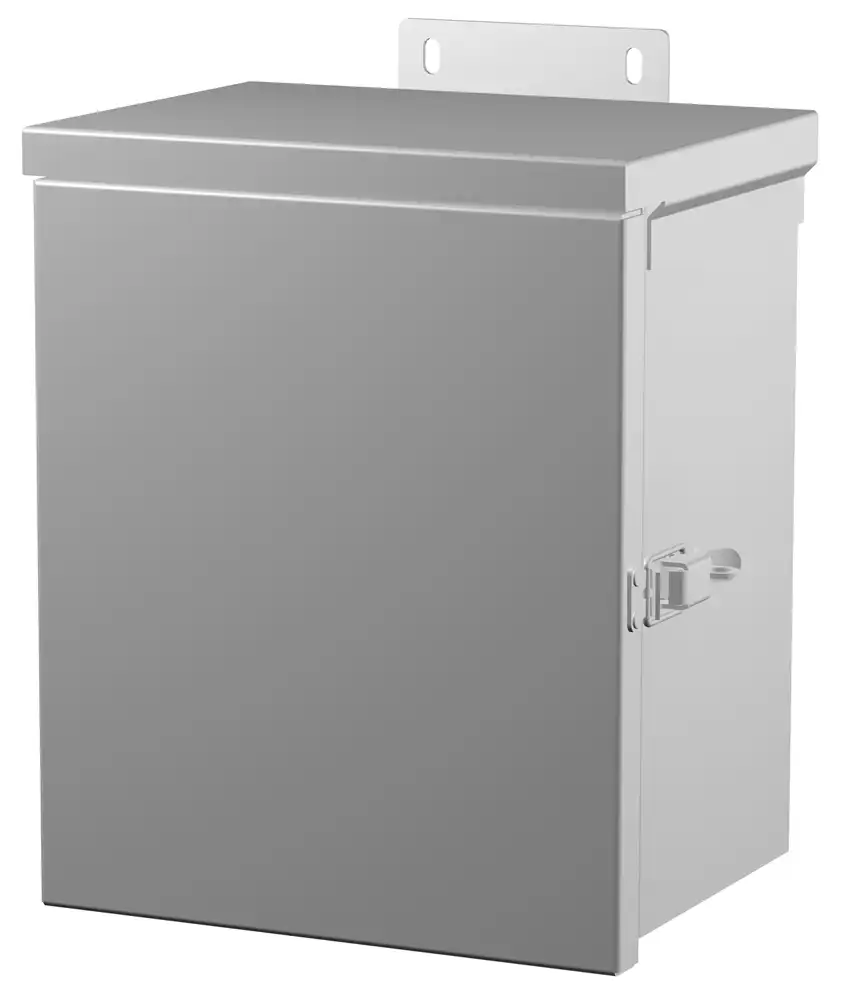

C3R HCR SM Series - Type 3R Painted Galvanized Steel Junction Box
Hinge Door With Snap Latch and With Knockouts

Product Application
  • Designed for use as a wiring/junction box.
  • Provides protection against rain, sleet, snow, and dripping water.
Product Construction
  • Formed and spot welded from 16 gauge galvanized steel.
  • Drip-shield top and seam-free sides, front, and back.
  • Galvanized steel hinge has stainless steel pin.
  • Provisions for padlocking on zinc-plated draw pull catch.
  • Easily removed knockouts on bottom of enclosure.
  • Panel studs provided for mounting optional panels.
  • External mounting feet.
  • Oil resistant gaskets are permanently secured.
Product Finish
  • Enclosure and cover are finished in ANSI 61 grey powder coating.
Product Standards
  • UL-50 Type 3R.
  • CSA Type 3R.
  • Complies with:
    • NEMA Type 3R.
    • IEC 60529, IP24.
Hammond Manufacturing Electrical Enclosures
KGA Enclosures Ltd are full authorised distributors of the Hammond Manufacturing Electrical Enclosures product range. This entire range is available from KGA Enclosures Ltd at great competitive pricing and with full customisation options on all applicable products.

Please remember - KGA Enclosures Ltd are authorised distributors of this product range. Please only use authorised distributors to purchase these products. This will then ensure you receive a genuine product.
Share This Product Range
Share on Facebook Share on LinkedIn Share on Twitter
Hammond Manufacturing Product Ranges
Did you know you can find the entire Hammond Manufacturing product range here at KGA Enclosures Ltd?

We offer all of these products at great competitive prices and with full customisation options where applicable. If you find a lower price, we will match it and beat it. That is our guarantee. For more information on any range, please click the links below:
C3R HCR SM Series | Hammond Manufacturing Electrical Enclosures | KGA Enclosures Ltd
Product Options
Please email all orders and enquiries to sales@kgaenclosures.com
Part No Manufacturer Product Information 1+ 10+ 25+ 50+ More.....
C3R1086HCR Hammond Click Part Number For Details P.O.A. P.O.A. P.O.A. P.O.A. More.....
C3R12106HCR Hammond Click Part Number For Details P.O.A. P.O.A. P.O.A. P.O.A. More.....
C3R121210HCR Hammond Click Part Number For Details P.O.A. P.O.A. P.O.A. P.O.A. More.....
C3R12126HCR Hammond Click Part Number For Details P.O.A. P.O.A. P.O.A. P.O.A. More.....
C3R644HCR Hammond Click Part Number For Details P.O.A. P.O.A. P.O.A. P.O.A. More.....
C3R664HCR Hammond Click Part Number For Details P.O.A. P.O.A. P.O.A. P.O.A. More.....
C3R864HCR Hammond Click Part Number For Details P.O.A. P.O.A. P.O.A. P.O.A. More.....
C3R886HCR Hammond Click Part Number For Details P.O.A. P.O.A. P.O.A. P.O.A. More.....
Please contact us for stock and price confirmation
Product Accessories
Please refer to the product data sheet for accessory compatibility
Inner Panels
Part No Manufacturer Product Information 1+ 10+ 25+ 50+ More.....
N1JP108 Hammond Click Part Number For Details P.O.A. P.O.A. P.O.A. P.O.A. More.....
N1JP1210 Hammond Click Part Number For Details P.O.A. P.O.A. P.O.A. P.O.A. More.....
N1JP1212 Hammond Click Part Number For Details P.O.A. P.O.A. P.O.A. P.O.A. More.....
N1JP64 Hammond Click Part Number For Details P.O.A. P.O.A. P.O.A. P.O.A. More.....
N1JP66 Hammond Click Part Number For Details P.O.A. P.O.A. P.O.A. P.O.A. More.....
N1JP86 Hammond Click Part Number For Details P.O.A. P.O.A. P.O.A. P.O.A. More.....
N1JP88 Hammond Click Part Number For Details P.O.A. P.O.A. P.O.A. P.O.A. More.....
Please contact us for stock and price confirmation
