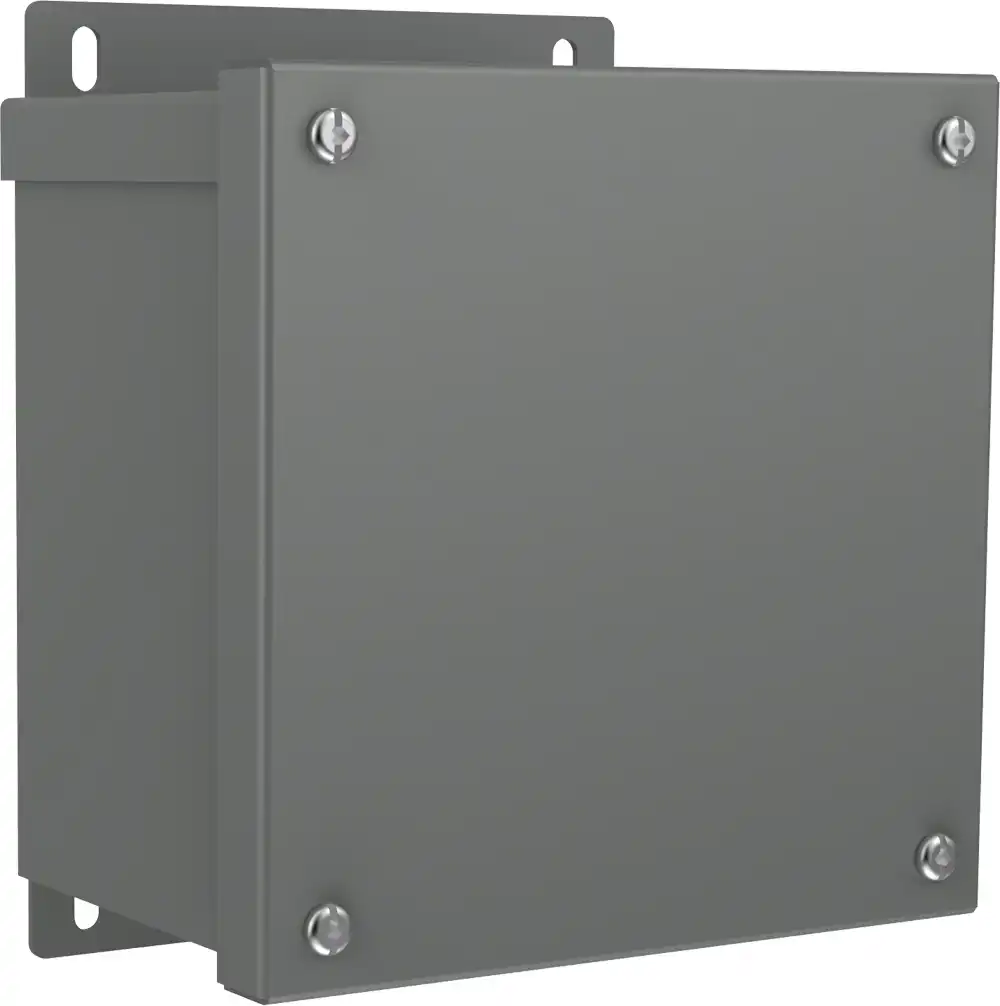

C3RESCNK Series - Type 3R Painted Galvanized Steel Junction Box
Screw Cover and Without Knockouts

Product Application
  • Designed for use as a wiring/junction box.
  • Provides protection against rain, sleet, snow, and dripping water.
Product Construction
  • Formed and spot welded from 16 gauge galvanized steel (24" x 24" x 26" is 14 gauge).
  • Drip-shield top and seam-free sides, front, and back.
  • Slip-on removable cover fastened with plated steel screws.
  • External mounting feet.
  • Oil resistant gaskets are permanently secured.
  • A bonding stud is provided on the door and a grounding stud is provided in the box.
Product Finish
  • Enclosure and cover are finished in ANSI 61 grey powder coating.
Product Standards
  • UL-50 Type 3R.
  • CSA Type 3R.
  • Complies with:
    • NEMA Type 3R.
    • IEC 60529, IP24.
Hammond Manufacturing Electrical Enclosures
KGA Enclosures Ltd are full authorised distributors of the Hammond Manufacturing Electrical Enclosures product range. This entire range is available from KGA Enclosures Ltd at great competitive pricing and with full customisation options on all applicable products.

Please remember - KGA Enclosures Ltd are authorised distributors of this product range. Please only use authorised distributors to purchase these products. This will then ensure you receive a genuine product.
Share This Product Range
Share on Facebook Share on LinkedIn Share on Twitter
Hammond Manufacturing Product Ranges
Did you know you can find the entire Hammond Manufacturing product range here at KGA Enclosures Ltd?

We offer all of these products at great competitive prices and with full customisation options where applicable. If you find a lower price, we will match it and beat it. That is our guarantee. For more information on any range, please click the links below:
C3RESCNK Series | Hammond Manufacturing Electrical Enclosures | KGA Enclosures Ltd
Product Options
Please email all orders and enquiries to sales@kgaenclosures.com
Part No Manufacturer Product Information 1+ 10+ 25+ 50+ More.....
C3R10104ESCNK Hammond Click Part Number For Details P.O.A. P.O.A. P.O.A. P.O.A. More.....
C3R10106ESCNK Hammond Click Part Number For Details P.O.A. P.O.A. P.O.A. P.O.A. More.....
C3R12124ESCNK Hammond Click Part Number For Details P.O.A. P.O.A. P.O.A. P.O.A. More.....
C3R12126ESCNK Hammond Click Part Number For Details P.O.A. P.O.A. P.O.A. P.O.A. More.....
C3R16166ESCNK Hammond Click Part Number For Details P.O.A. P.O.A. P.O.A. P.O.A. More.....
C3R18186ESCNK Hammond Click Part Number For Details P.O.A. P.O.A. P.O.A. P.O.A. More.....
C3R24246ESCNK Hammond Click Part Number For Details P.O.A. P.O.A. P.O.A. P.O.A. More.....
C3R664ESCNK Hammond Click Part Number For Details P.O.A. P.O.A. P.O.A. P.O.A. More.....
C3R884ESCNK Hammond Click Part Number For Details P.O.A. P.O.A. P.O.A. P.O.A. More.....
C3R886ESCNK Hammond Click Part Number For Details P.O.A. P.O.A. P.O.A. P.O.A. More.....
Please contact us for stock and price confirmation
