Product Range - Lincoln Binns Enclosures
Lincoln Binns Enclosures
KGA Enclosures Ltd are full authorised distributors of the Lincoln Binns Enclosures product range. The entire Lincoln Binns Enclosures range is available from KGA Enclosures Ltd at great competitive pricing and with full customisation options on all applicable products.

To purchase any product or for more information on any product offered, simply call (+44) 01535 636856 or E-Mail: sales@kgaenclosures.com, where we will be happy to assist you.
How To Order
To order any product or confirm lead times for delivery, please email sales@kgaenclosures.com and include the following:
  • Company / Contact Name
  • Full Delivery Address
  • Contact Telephone Number
  • E-Mail Address
  • Confirmation of Part Number and Quantities Required
Or call 01535 636856. We aim to answer all E-Mail inquiries as quickly as possible.
Customisation Options
What makes KGA Enclosures Ltd different from most other larger distributors is that we offer full customisation services on all enclosures and accessories. All customisation work is undertaken by the relevant supplier, (some small projects are done utilizing outside contractors) at their own manufacturing facilities. These services include milling or punching holes and slots into the enclosure or end plates for cables, connectors, switches, etc. Printing and silk screening services allow for the addition of text, logos, and graphics onto both the enclosure and end plates, to allow the end user to easily identify the product and also to give the final product a more elegant finish.
Share This Page
Share Product Range on Facebook Share Product Range on Twitter Share Product Range on LinkedIn
Product Range - Lincoln Binns Enclosures at KGA Enclosures Ltd
Product Range
Lincoln Binns - Customisation Services

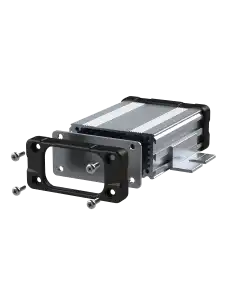

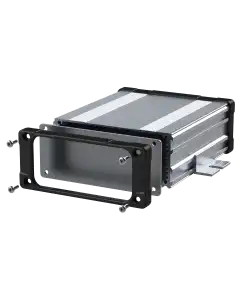

E-Case A to D Extruded Aluminium Enclosures
  • Any lengths up to 1.5 meters for UK Shipping.
  • Any lengths up to 1 meter for World Wide Shipping.
  • E-Case A - Maximum 55mm Wide PCB.
  • E-Case A - Maximum PCB Component Height 18.6mm.
  • E-Case B - Maximum 100mm Wide PCB.
  • E-Case B - Maximum PCB Component Height 18.6mm.
  • E-Case C - Maximum 100mm Wide PCB.
  • E-Case C - Maximum PCB Component Height 33.6mm.
  • E-Case D - Maximum 160mm Wide PCB.
  • E-Case D - Maximum PCB Component Height 40.75mm.
Lincoln Binns Enclosures Customisation Services
Extrusion
  • Extrusion can be cut to any length from 40mm to 1500m for UK Shipping.
  • Extrusion can be cut to any length from 40mm to 1000mm for World Wide Shipping.
  • Cut tolerance: -0mm to 0.5mm.
  • Surface finish: Anodised, Anti-Corrosion or Powder Coated.
  • Custom anodised colours available including blue and red.
  • Milled cut-outs or recesses.
  • Laser marking or digital print.
End Plates
  • Over sized end plates.
  • 19" Rack mount capabilities.
  • Aluminium, Zintec or Acrylic material options.
  • Various surface finishes and colour options.
  • Laser marking or digital print.
Carrier Plates
  • Manufactured to specified dimensions.
  • Various surface finishes and colour options.
  • Punched cut-outs.
  • Laser marking or digital print.
For Product Availability, Price Confirmation and All Ordering Please E-Mail sales@kgaenclosures.com
