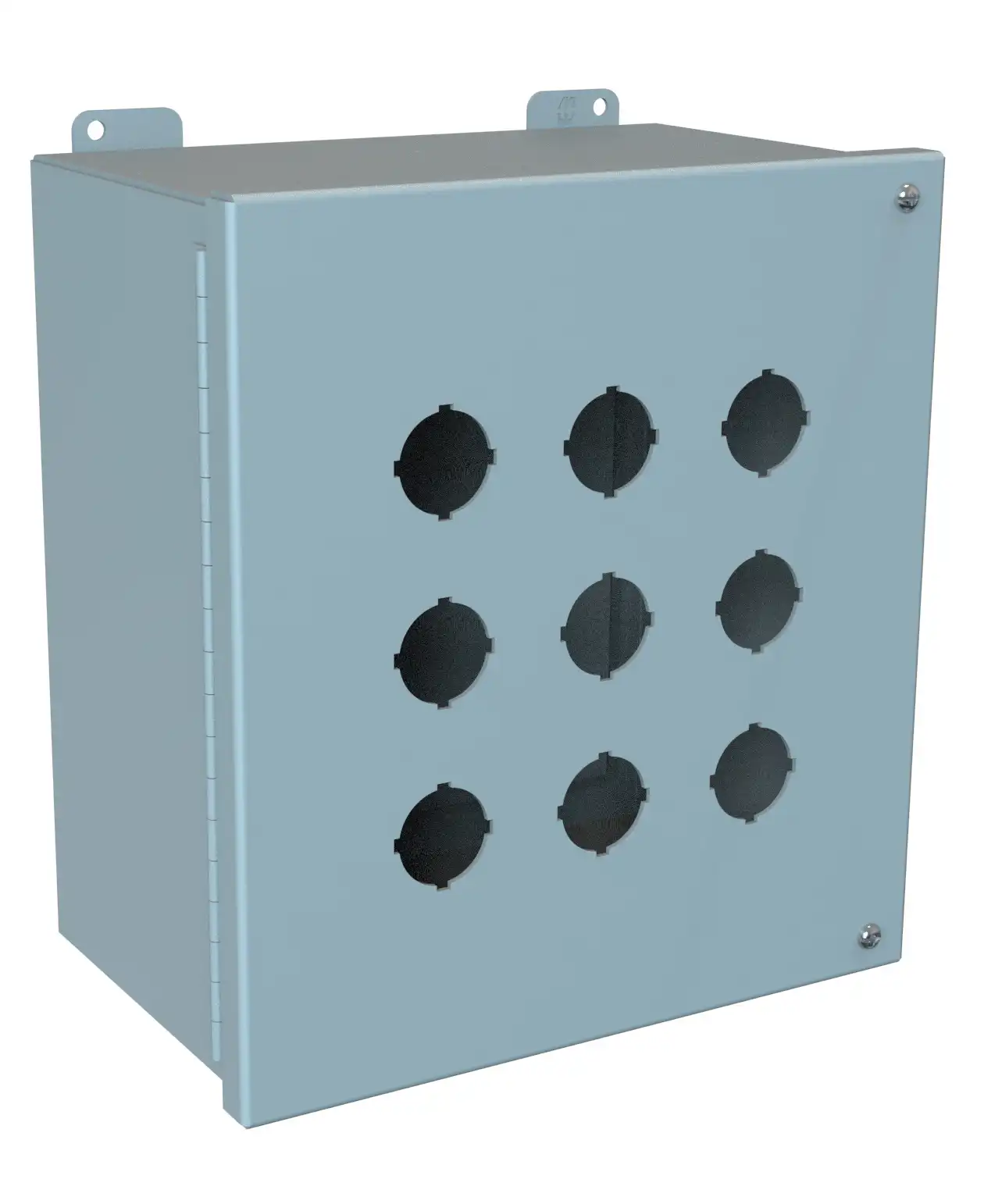

1489 Series Type 12 Mild Steel Pushbutton Enclosures
Hinged Cover
Product Application
  • Designed to accept standard heavy duty oil tight pushbuttons, switches and pilot lights.
  • Provides protection from dirt, dust, oil and water.
Product Construction
  • Formed 14 gauge steel.
  • Smooth continuously welded seams.
  • Weld brackets provide for enclosure mounting.
  • Continuously hinged cover is secured with captive, plated steel screws which fasten into threaded sealed wells.
  • Oil resistant gasket and adhesive.
  • Weld nuts are provided from mounting inner panels.
  • A removable 14 gauge inner panel is included.
  • A bonding stud is provided on the door and a grounding stud is provided in the enclosure.
Product Finish
  • Cover and enclosure are phosphatized and finished in ANSI 61 grey powder coating.
  • Removable inner panel is finished in white powder coating.
Product Standards
  • UL 508A Type 12.
  • CSA Type 12.
  • Complies with:
    • NEMA Type 12
    • IEC 60529, IP54
  • Appropriate components are required to maintain these standards.
Product Resources
Share On Social Media
Share on Facebook Share on Twitter Share on LinkedIn

1489 Series Enclosures - Hammond Manufacturing Enclosures
Product Options
Part No Colour Height Width Depth 1+ 10+ 25+ More
30.5mm Hole
1489P12 ANSI 61 Grey 324mm 241mm 152mm P.O.A. P.O.A. P.O.A. More....
1489P16 ANSI 61 Grey 324mm 298mm 152mm P.O.A. P.O.A. P.O.A. More....
1489P20 ANSI 61 Grey 381mm 298mm 152mm P.O.A. P.O.A. P.O.A. More....
1489P25 ANSI 61 Grey 381mm 356mm 152mm P.O.A. P.O.A. P.O.A. More....
1489P30 ANSI 61 Grey 438mm 356mm 152mm P.O.A. P.O.A. P.O.A. More....
1489P36 ANSI 61 Grey 438mm 413mm 152mm P.O.A. P.O.A. P.O.A. More....
1489P4 ANSI 61 Grey 210mm 184mm 152mm P.O.A. P.O.A. P.O.A. More....
1489P42 ANSI 61 Grey 495mm 413mm 152mm P.O.A. P.O.A. P.O.A. More....
1489P6 ANSI 61 Grey 267mm 184mm 152mm P.O.A. P.O.A. P.O.A. More....
1489P9 ANSI 61 Grey 267mm 241mm 152mm P.O.A. P.O.A. P.O.A. More....
22.5mm Hole
1489MP12 ANSI 61 Grey 324mm 241mm 152mm P.O.A. P.O.A. P.O.A. More....
1489MP16 ANSI 61 Grey 324mm 298mm 152mm P.O.A. P.O.A. P.O.A. More....
1489MP20 ANSI 61 Grey 381mm 298mm 152mm P.O.A. P.O.A. P.O.A. More....
1489MP25 ANSI 61 Grey 381mm 356mm 152mm P.O.A. P.O.A. P.O.A. More....
1489MP30 ANSI 61 Grey 438mm 356mm 152mm P.O.A. P.O.A. P.O.A. More....
1489MP36 ANSI 61 Grey 438mm 413mm 152mm P.O.A. P.O.A. P.O.A. More....
1489MP4 ANSI 61 Grey 210mm 184mm 152mm P.O.A. P.O.A. P.O.A. More....
1489MP42 ANSI 61 Grey 495mm 413mm 152mm P.O.A. P.O.A. P.O.A. More....
1489MP6 ANSI 61 Grey 267mm 184mm 152mm P.O.A. P.O.A. P.O.A. More....
1489MP9 ANSI 61 Grey 267mm 241mm 152mm P.O.A. P.O.A. P.O.A. More....
Please visit individual product page for more detailed information
Hammond Manufacturing - Customisation Services
Modified Electronic Enclosures
Almost every enclosure will need some kind of modification to be useful. In house modifications can be tedious, over complicated and a distraction from your main core business. A third party shop can add time and expense. Let us help you to deliver quality products made to your exact specifications.
Hammond Manufacturing Customisation Services
Why choose Hammond Manufacturing to modify your enclosure
  • Hammond Manufacturing offers a wide selection and massive inventory of enclosures ready to be modified.
  • Typically the minimum order quantity is 25 pieces. This can vary depending on product and service required. Please note KGA Enclosures does not add on any charges.
  • Hammond has an experience enclosure modification team and two dedicated modification facilities in North America and the United Kingdom. They are knowledgeable, available and capable.
  • Hammond Manufacturing helps eliminate scrap and design errors with approval drawings to confirm correct interpretation of your deign required. Many orders will also include a fast delivery of sample enclosures for your inspection. These steps ensure that your assembly fits perfectly before heading into the mass production stage.
Popular modification services offered:
  • Holes
  • Cutouts
  • Tapping and countersinking.
  • Pressed-in hardware (Studs, Standoffs)
  • Silk screening
  • UV Printing
  • Special colours
  • Special length extrusions
  • Pre-Installed accessories
  • Available services vary by product
