Hammond Manufacturing Electrical Enclosures - 1486SS Series - Wireway and Trough

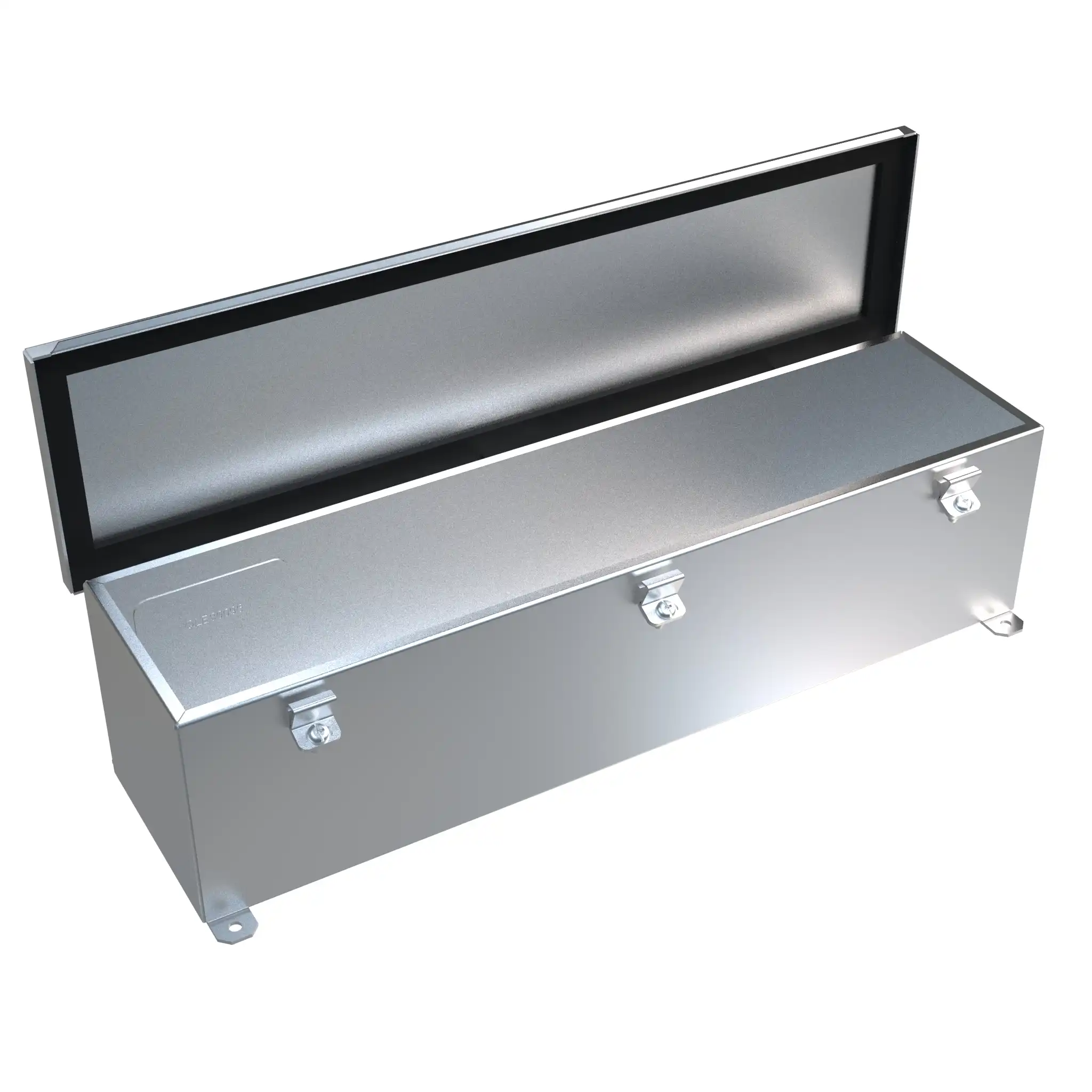

1486SS Series - Type 4X Wiring Trough
Product Application:
  • Designed to enclose and protect multiple wiring junctions from dirt, dust, oil and water while providing a measure of corrosion protection.
Product Construction:
  • Formed 14 gauge 304 stainless steel.
  • Smooth continuously welded seams.
  • Butt hinged cover is secured with easily operated screw clamps.
  • Oil resistant gaskets are permanently secured.
  • 12 gauge external mounting feet are welded to the back.
Product Finish:
  • Troughs and covers are natural stainless steel with a smooth brushed finish.
Product Standards:
  • UL 870 Type 1, 12, 4, 4X.
  • CSA Type 1, 12, 4, 4X.
  • Complies with:
    • NEMA Type 12, 4, 4X.
    • IEC 60529, IP66.
How To Order
To order any product or confirm lead times for delivery, please email sales@kgaenclosures.com and include the following:
  • Company / Contact Name
  • Full Delivery Address
  • Contact Telephone Number
  • E-Mail Address
  • Confirmation of Part Number and Quantities Required
Or call 01535 636856. We aim to answer all E-Mail inquiries as quickly as possible.
Hammond Manufacturing Electrical Enclosures
KGA Enclosures Ltd are full authorised distributors of the Hammond Manufacturing Electrical Enclosures product range. This entire range is available from KGA Enclosures Ltd at great competitive pricing and with full customisation options on all applicable products.

To purchase any product or for more information on any product offered, simply call (+44) 01535 636856 or E-Mail: sales@kgaenclosures.com, where we will be happy to assist you. Or view the related product ranges from Hammond Manufacturing, which are all available from KGA Enclosures Ltd. Including the:
Customisation Options
What makes KGA Enclosures Ltd different from most other larger distributors is that we offer full customisation's services on all enclosures and accessories. All customisation work is undertaken by the relevant supplier, (some small projects are done utilizing outside contractors) at their own manufacturing facilities. These services include milling or punching of hole and slots into the enclosure or end plates for cables, connectors, switches etc. Printing and silk screening services allows for the additional of text, logo's and graphics onto both the enclosure and end plates, to allow the end user to easily identify the product as well as giving the final product a more elegant finish. Full customisation services - Click here for more information on full customisation services.
Share This Product
Share Product Range on Facebook Share Product Range on Twitter Share Product Range on LinkedIn
1486SS Series - Hammond Manufacturing Electrical Enclosures at KGA Enclosures Ltd
View Product Data Sheet
Product Options
Part No Product Information 1+ 10+ 25+ 50+ More
1486B12SS Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
1486B18SS Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
1486B24SS Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
1486B36SS Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
1486B48SS Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
1486B60SS Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
1486B72SS Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
1486C12SS Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
1486C18SS Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
1486C24SS Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
1486C30SS Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
1486C36SS Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
1486C48SS Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
1486C60SS Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
1486C72SS Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
1486D12SS Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
1486D18SS Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
1486D24SS Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
1486D30SS Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
1486D36SS Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
1486D48SS Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
1486D60SS Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
1486D72SS Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
1486E12SS Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
1486E24SS Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
1486E36SS Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
1486E48SS Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
1486E60SS Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
1486G24SS Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
1486G36SS Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
1486G48SS Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
1486G60SS Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
For pricing confirmation and stock availability please contact us
Hammond Manufacturing - Customisation Services
Modified Electronic Enclosures
Almost every enclosure will need some kind of modification to be useful. In house modifications can be tedious, over complicated and a distraction from your main core business. A third party shop can add time and expense. Let us help you to deliver quality products made to your exact specifications.
Hammond Manufacturing Customisation Services
Why choose Hammond Manufacturing to modify your enclosure
  • Hammond Manufacturing offers a wide selection and massive inventory of enclosures ready to be modified.
  • Typically the minimum order quantity is 25 pieces. This can vary depending on product and service required. Please note KGA Enclosures does not add on any charges.
  • Hammond has an experience enclosure modification team and two dedicated modification facilities in North America and the United Kingdom. They are knowledgeable, available and capable.
  • Hammond Manufacturing helps eliminate scrap and design errors with approval drawings to confirm correct interpretation of your deign required. Many orders will also include a fast delivery of sample enclosures for your inspection. These steps ensure that your assembly fits perfectly before heading into the mass production stage.
Popular modification services offered:
  • Holes
  • Cutouts
  • Tapping and countersinking.
  • Pressed-in hardware (Studs, Standoffs)
  • Silk screening
  • UV Printing
  • Special colours
  • Special length extrusions
  • Pre-Installed accessories
  • Available services vary by product
