260A - Hammond Manufacturing Transformers
260A - Hammond Transformers |
| Product Price Breakdown |
| 1+ | £64.33 |
|---|---|
| 5+ | £61.76 |
| 10+ | £59.19 |
| 25+ | £57.90 |
| 50+ | £55.97 |
| 100+ | £55.33 |
| 250+ | £54.68 |
| 500+ | £54.04 |
| 1000+ | £53.72 |
| 2500+ | £53.08 |
| In Stock | Prices shown excludes VAT |
Find the 260A here at KGA Enclosures, authorised distributors for Hammond Manufacturing Transformers. Purchase or buy the 260A here.
| Product Information |
| Part No | 260A |
|---|---|
| Product Series | 260 Series |
| VA | 22 |
| A.C. High Voltage Secondary #1 RMS | 400V C.T. @ 40ma. |
| A.C. Filament Secondary #2 RMS | 6.3V C.T. @ 1A |
| Dimension A | 83mm |
| Dimension B | 51mm |
| Dimension C | 51mm |
| Dimension D | 71mm |
| Mounting Slot | 5mm |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| Share Me - 260A |    |
260A | 260 Series | Hammond Manufacturing Transformers | KGA Enclosures Ltd

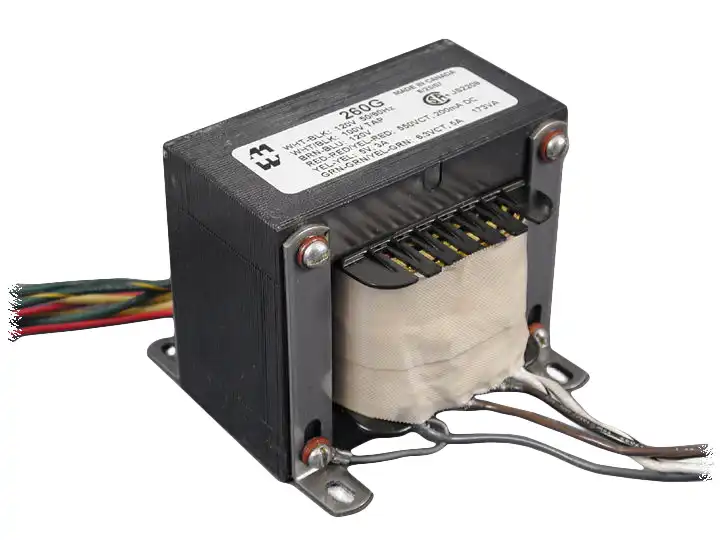

260 Series - Plate and Filament - 22 VA To 248 VA
Universal Primary and 50/60 Hz. Operation
Product Features:
- Universal primary with taps for 100, 120, 220, or 240 VAC, 50/60 Hz. (Except for the 260A6 which is 117V, 50/60 Hz. only).
- Designed for preamps, low power amps, general replacement, test equipment, etc.
- Economical, open frame, chassis mount - two hole (0.187 dia. = G) channel bracket, or four hole mounting.
- Units include a Faraday shield between the primary and secondary windings. The electrostatic shield reduces the capacitive coupling from the primary - greatly attenuating higher frequency current coupling to the secondaries.
- Minimum 5" long leads.
Product Notes:
- These units are designed to run with BOTH primary windings energized for maximum efficiency.
- The Faraday shield lead - the grey wire - marked SH (shield), should remain grounded to the mounting bracket and in turn to the chassis.
Related Products:
- For more selection check out the 300 Series of universal plate and filament transformers.
