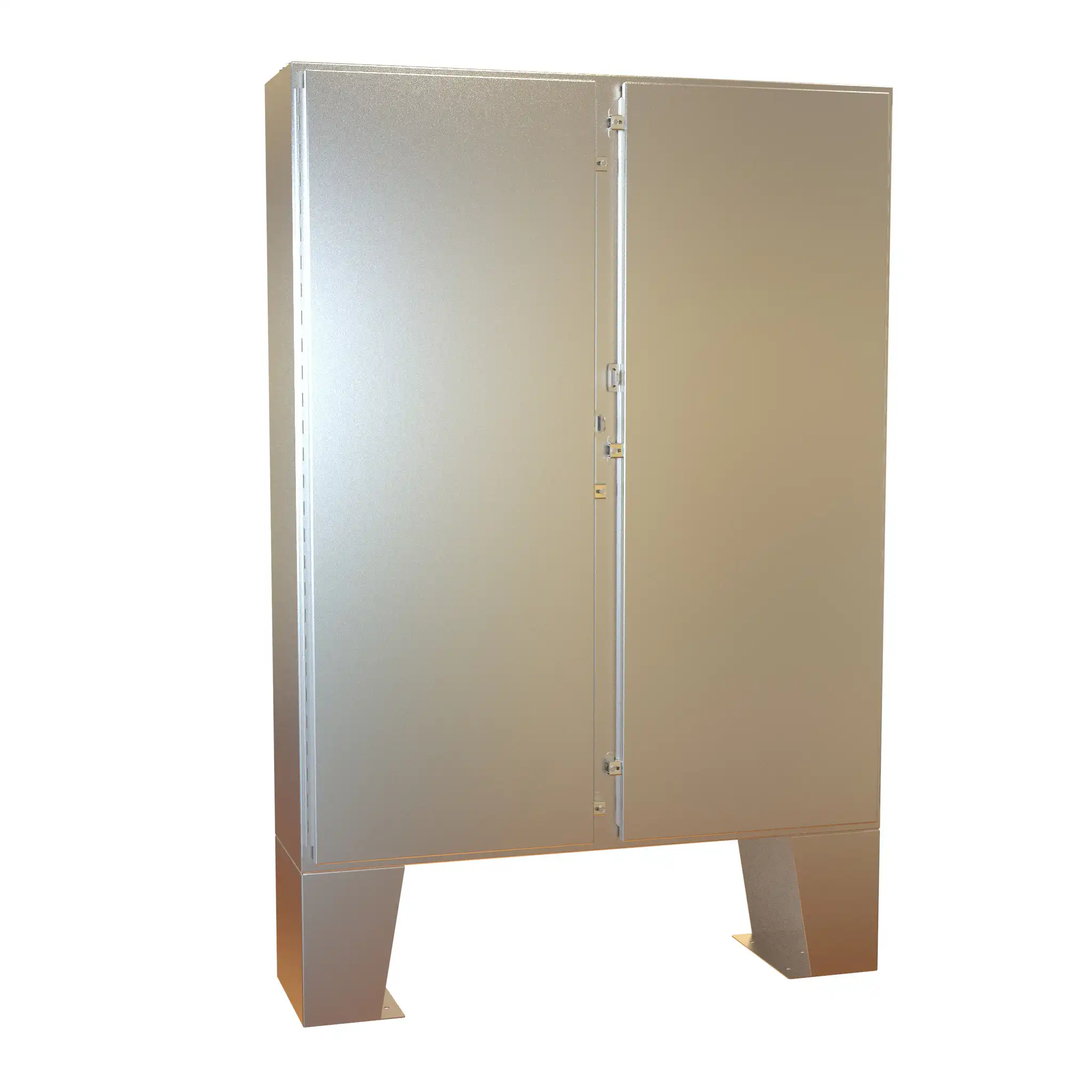

1422 N4 SS Series - Type 4X Stainless Steel Two Door Floormount Enclosure
Continuous Hinge Door With Clamps
Product Application:
- Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments.
- Provides protection where equipment may be hosed down or otherwise be very wet, or in specific applications where corrosion is a serious problem.
Product Construction:
- Formed 12 gauge 304 or 316 stainless steel.
- Smooth, continuously welded seams without knockouts, cutouts or holes.
- Body stiffeners are provided in the larger enclosures for extra rigidity.
- Heavy duty stainless steel lifting eyebolts are provided with reinforcing support angles.
- Center post is removable for easy installation of the inner panel.
- Formed lip on door and top of enclosure opening exclude flowing liquids and contaminants.
- Continuously hinged doors may be removed by pulling the stainless steel hinge pin.
- Doors are secured with heavy duty stainless steel clamps.
- Provision for padlocking.
- 12" floor stands are welded to the enclosure.
- Seamless poured-in place gasket.
- Panel supports are provided for easy panel installation.
- Collar studs are provided for mounting inner panels.
- A bonding stud is provided on the door and a grounding stud is provided in the enclosure for each door.
- A literature pocket is provided.
Product Finish:
- Cover and enclosure are natural stainless steel with a smooth brushed finish.
- Removable 10 gauge inner panel is finished in white powder coating.
Product Standards:
- UL 508A Type 3R, 4, 4X, and 12.
- CSA Type 3R, 4, 4X, and 12.
- Complies with:
- NEMA Type 3R, 4, 4X, 12, and 13.
- IEC 60529, IP66.
Hammond Manufacturing Electrical Enclosures
KGA Enclosures Ltd are full authorised distributors of the Hammond Manufacturing Electrical Enclosures product range. This entire range is available from KGA Enclosures Ltd at great competitive pricing and with full customisation options on all applicable products.
Please Remember - Only use authorised distributors to purchase these products. Using authorised distributors will guarantee you receiving a genuine product which, by using KGA Enclosures, we can guarantee you receiving.
Please Remember - Only use authorised distributors to purchase these products. Using authorised distributors will guarantee you receiving a genuine product which, by using KGA Enclosures, we can guarantee you receiving.
For more information or to purchase / buy any product or for pricing and stock confirmation, please call (+44) 01535 636856, or email sales@kgaenclosures.com. Please include the following where applicable:
- Company / Contact name.
- Full delivery address.
- Contact telephone number.
- E-Mail address.
- Confirmation of part numbers and quantities required.
We aim to answer all E-Mail inquiries as quickly as possible.
Payment Options
KGA Enclosures Ltd accepts the following payment methods:
- Bank Transfer (BACS)
- Credit / Debit Card Payments
- PayPal Payments
- Cheques
Payment terms are available for all customers, which can be negotiated, contact us for more information.
Hammond Manufacturing Product Ranges
Did you know, the entire Hammond Manufacturing product range is all available here at KGA Enclosures Ltd. If you find a lower price, we aim to match and beat it. For more information on any range, please click the link below.
- View - Hammond Enclosures Range
- View - Hammond Electrical Enclosures Range
- View - Hammond Power Distribution Range
- View - Hammond Rack Systems Range
- View - Hammond Transformers Range
- View - Ritec Plastic Enclosures Range
Product Customisation Options
What makes KGA Enclosures Ltd different from most other larger distributors is that we offer full customisation services on all enclosures and accessories. All customisation work is undertaken by the relevant supplier, (some smaller projects are done by utilizing outside contractors) at their own manufacturing facilities. These services include milling or punching holes and slots into the enclosure or end plates for cables, connectors, switches, etc. Printing and silk screening services allow for the addition of text, logos and graphics onto both the enclosure and end plates, to allow the end user to easily identify the product and also to give the final product a more elegant finish. Contact us today to see how we can assist you.
Share This Product Range
One great range available at KGA Enclosures Ltd is the 1422 N4 SS Series, a trusted and approved distributor of the Hammond Manufacturing product range.
| Product Options |
| Part No | Brand | Product Information | 1+ | 10+ | 25+ | 50+ | More.... |
|---|---|---|---|---|---|---|---|
| 304 Stainless Steel | |||||||
| 1422N4SSB12F | Hammond | Please click link for more information | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More.... |
| 1422N4SSD12F | Hammond | Please click link for more information | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More.... |
| 1422N4SSE12F | Hammond | Please click link for more information | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More.... |
| 1422N4SSF12F | Hammond | Please click link for more information | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More.... |
| 1422N4SSF24F | Hammond | Please click link for more information | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More.... |
| 316 Stainless Steel | |||||||
| 1422N4S16B12F | Hammond | Please click link for more information | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More.... |
| 1422N4S16D12F | Hammond | Please click link for more information | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More.... |
| 1422N4S16E12F | Hammond | Please click link for more information | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More.... |
| 1422N4S16F12F | Hammond | Please click link for more information | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More.... |
| 1422N4S16F24F | Hammond | Please click link for more information | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More.... |
| Contact us for pricing and stock confirmation |
|---|
Modified Electronic Enclosures
Almost every enclosure will need some kind of modification to be useful. In house modifications can be tedious, over complicated and a distraction from your main core business. A third party shop can add time and expense. Let us help you to delivery quality products made to your exact specifications.
Why Choose Hammond Manufacturing To Modify Your Enclosures
- Hammond Manufacturing offers a wide selection and massive inventory of enclosures ready to be modified.
- Typically the minimum order quantity is 25 pieces, this can vary depending on product and service required. Please note KGA Enclosures does not add on any extra charges.
- Hammond has an experienced enclosure modification team and two dedicated modification facilities in North America and the United Kingdom. They are knowledgeable, available and capable.
- Hammond helps eliminate scrap and design errors with approval drawings to confirm correct interpretation of your design required. Many orders will also include a fast delivery of a sample enclosure for your inspection. These steps ensure that your assembly fits perfectly before heading into the mass production stage.
Popular Modification Services Offered
- Holes.
- Cutouts.
- Tapping and countersink.
- Pressed-in hardware (Studs, Standoffs).
- Silk screening.
- UV Printing.
- Special colours.
- Special extrusion lengths.
- Pre-Installed accessories.
- Available services vary by product.
