Product Information
Part No BUSBAR4X10
Product Series BUSBAR Series
Technical DrawingsSTP     DXF     PDF
RoHS Compliant Yes
REACH Compliant Yes
Share Me - BUSBAR4X10 Share on Facebook Share on Twitter Share on LinkedIn

BUSBAR4X10 | BUSBAR Series | Hammond Manufacturing Rack Solutions | KGA Enclosures Ltd

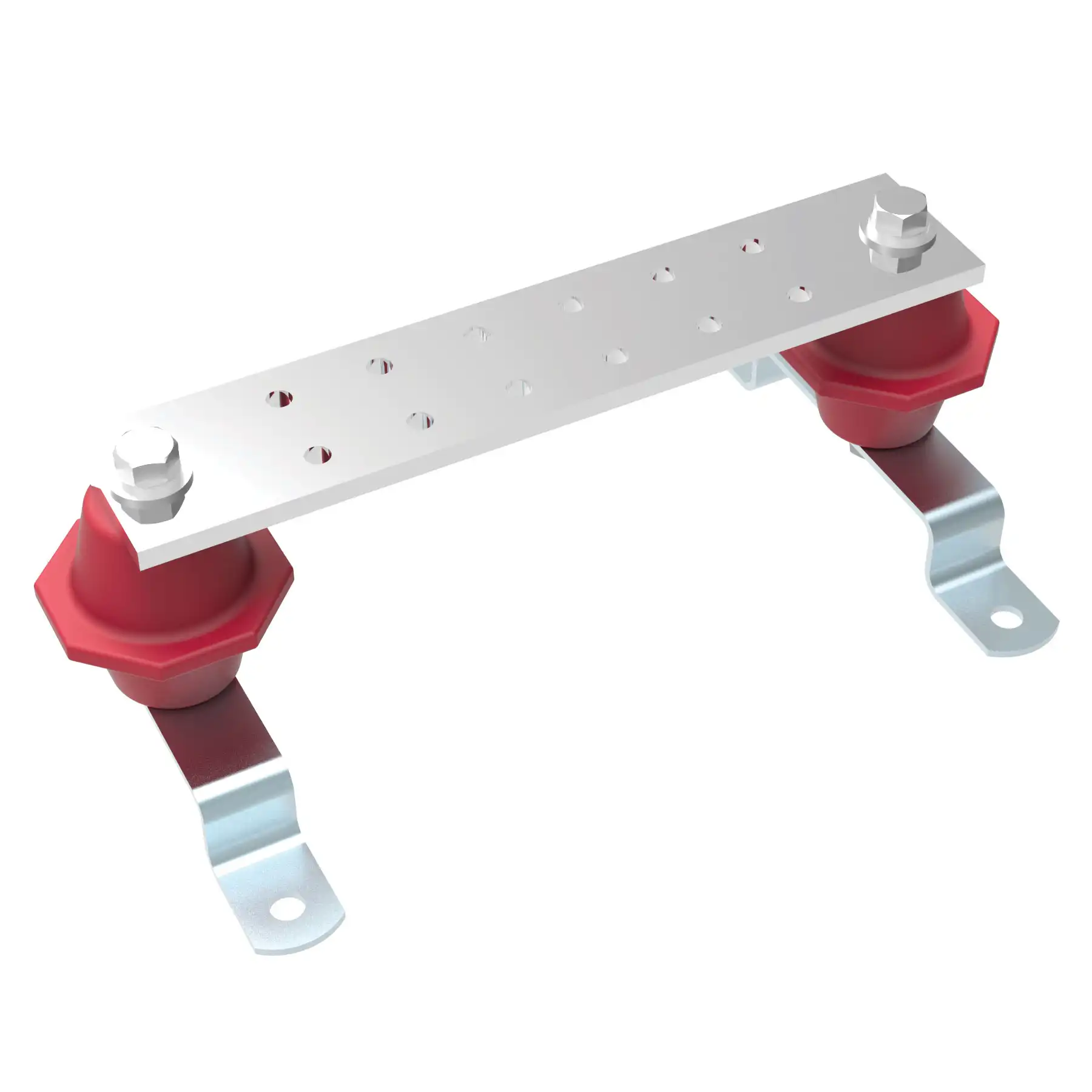

BUSBAR Series - Grounding Bar and Busbars
Product Information
How To Purchase Products
Customisation Services

Product Features:
  • Electro Tin Plated Copper Bus Bar, 100/300 micro inches of plating.
    • The thin tin coating acts as a shield, inhibiting copper oxidization.
    • Copper oxidization causes a poor electrical contact which then gets hot and increased the copper oxidization rate.
    • Oxides, because of their poor conductivity, also causing arcing at the electrical contacts, eroding the copper.
  • 3200 Volt rated Glass-Reinforced Thermoset Polyester insulators:
    • 180+ seconds or arc resistance.
    • UL 94 V0 flame resistance.
    • Ampacity and temp rise as follows (at 60 Hz.), indoors at a 40°C ambient;
      • 710 amps (at a 30°C rise).
      • 940 amps (at a 50° C rise).
      • 1100 amps (at a 65°C rise).
  • Mounting bracket holes 0.375" diameter.
  • Busbar available in 2" or 4" widths.
    • 10" in length.
    • 0.25" in thickness.
  • Hardware:
    • ¼-20 x 0.75" length stainless steel Philips machine screws (12 pieces).
    • ¼ stainless steel lock washer (12 pieces).
    • ¼-20 stainless steel hex nut (12 pieces).
  • TAA compliant for GSA schedule purchases.
  • RoHS compliant.
  • Manufactured in North America.
