BUSBAR Series - Busbars

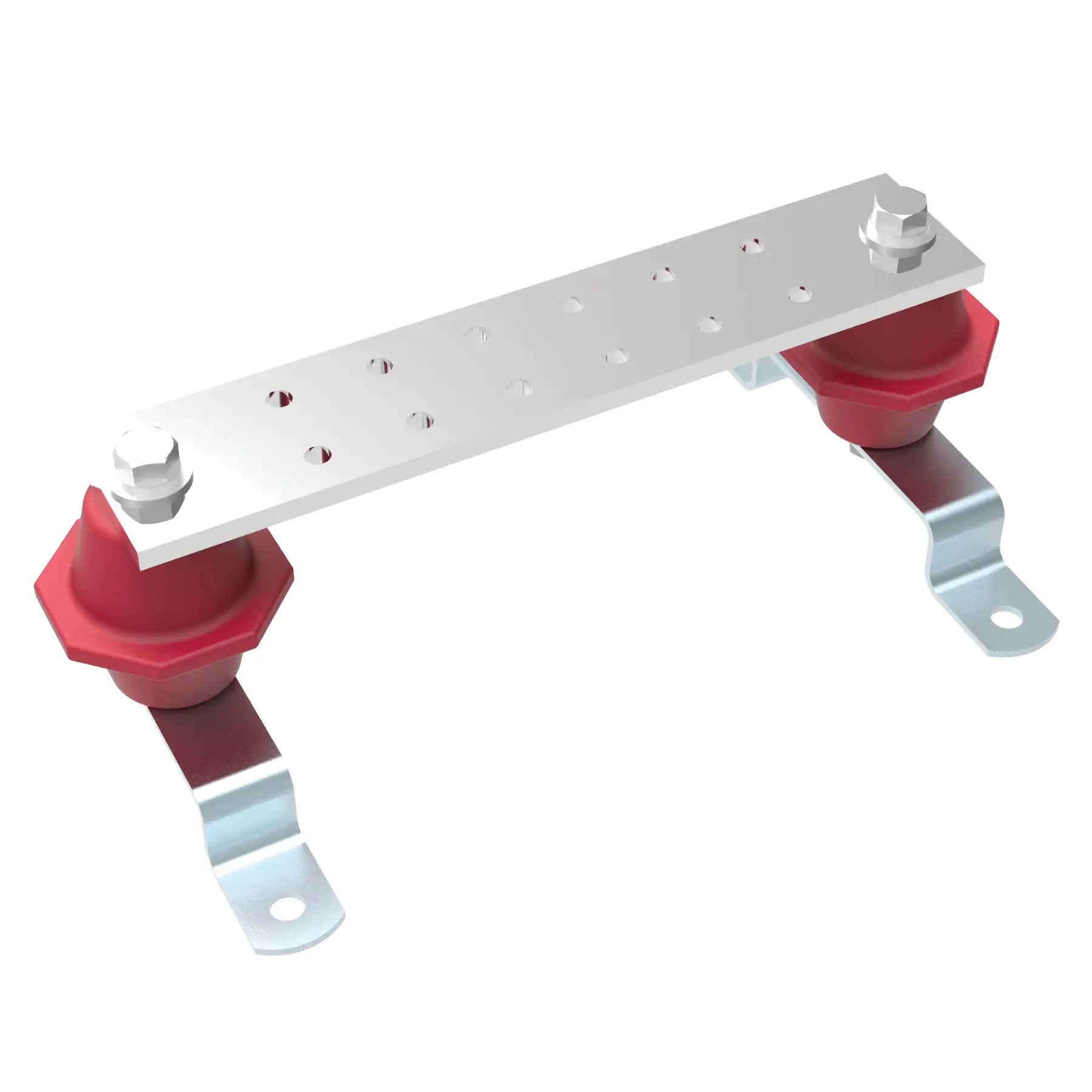

A busbar serves as a central grounding point for equipment and are constructed from tin-plated copper with factory-installed insulators and mounting brackets. Various sizes and hole patterns are available to suit the specific requirements of your bonding system.
Product Features
- Constructed with UL listed components.
- Electro tin plated copper busbar, 100/300 micro inches of plating.
- The thin tin coating acts as a shield, inhibiting copper oxidization.
- Copper oxidization causes poor electrical contact which the gets hot and increase the copper oxidization rate.
- Oxides, because of their poor conductivity, also cause arcing at the electrical contacts, eroding the copper.
- 3200 volt-rated glass-reinforced thermoset polyester insulators.
- 180+ seconds of arc resistance.
- UL94-V0 flame resistance.
- Ampacity and temperature rise as follows (at 60 Hz.), indoors at a +40°C ambient;
- 710 amps ( at a +30°C rise).
- 940 amps (at a +50°C rise).
- 1100 amps (at a +65°C rise).
- Mounting bracket holes 0.375" diameter.
- Busbar available in 2" or 4" width.
- 10" in length.
- 0.25" in thickness.
- Hardware:
- 1/4-20 x 0.75" length stainless steel Philips machine screw (12 pieces).
- 1/4 stainless steel lock washer (12 pieces).
- 1/4-20 stainless steel hex nut (12 pieces).
- TAA-compliant for GSA schedule purchases.
- RoHS compliant.
- Manufactured in North America.
Hammond Manufacturing Rack Solutions
KGA Enclosures Ltd are fully authorised distributors of the Hammond Manufacturing Rack Solutions product range. This entire range is available from KGA Enclosures Ltd at great competitive pricing and with full customisation options on all applicable products.
Please remember - KGA Enclosures Ltd are authorised distributors of this product range. Please only use authorised distributors to purchase these products. This will then ensure you receive a genuine product.
Please remember - KGA Enclosures Ltd are authorised distributors of this product range. Please only use authorised distributors to purchase these products. This will then ensure you receive a genuine product.
Hammond Manufacturing Product Ranges
Did you know, you can find the entire Hammond Manufacturing product range, here at KGA Enclosures Ltd.
- View the Hammond Electrical Enclosures Range.
- View the Hammond Enclosures Range.
- View the Hammond Power Distribution Range.
- View the Hammond Rack Solutions Range.
- View the Hammond Transformers Range.
- View the Ritec Plastic Enclosures Range.
Share This Product Range |
|---|
   |
BUSBAR Series | Hammond Manufacturing Rack Solutions | KGA Enclosures Ltd
| Part No | Brand | Product Information | 1+ | 5+ | 10+ | 25+ |
|---|---|---|---|---|---|---|
| Horizontal Rack Mount Copper Busbar | ||||||
| GRDBAR19 | Hammond | Click part number for more details | P.O.A. | P.O.A. | P.O.A. | P.O.A. |
| GRDBAR23 | Hammond | Click part number for more details | P.O.A. | P.O.A. | P.O.A. | P.O.A. |
| Modular Busbar | ||||||
| BUSBAR2X10 | Hammond | Click part number for more details | P.O.A. | P.O.A. | P.O.A. | P.O.A. |
| BUSBAR4X10 | Hammond | Click part number for more details | P.O.A. | P.O.A. | P.O.A. | P.O.A. |
| For product compatibility and more information, please see the product data sheet. |
|---|
