Hammond Manufacturing Electrical Enclosures - PJUF Series - NME - Junction Boxes

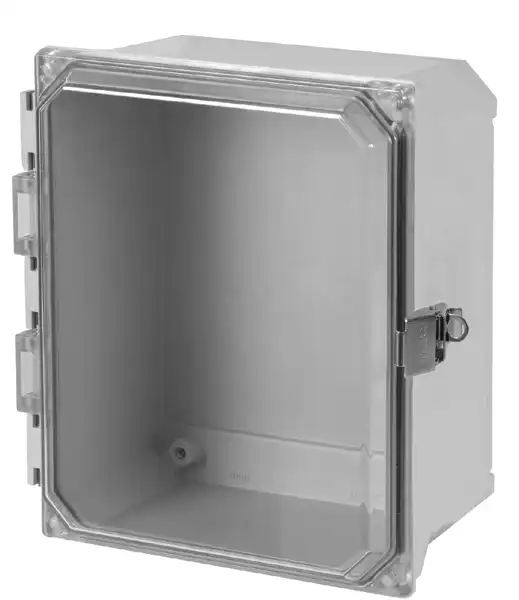

PJUF Series - Type 4X Polyester Junction Box (Solid and Clear Cover)
Lift-Off Cover With Screws
Product Application:
  • Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
  • Provides outstanding insulation and protection where equipment may be hosed down or be very wet.
  • Ideal in applications with high temperatures or highly corrosive environments.
Product Construction:
  • Moulded fiberglass polyester enclosure with matching cover is easily punched cut, or drilled.
  • Enhanced UV inhibitors protect against outdoor weathering.
  • Standard JIC sizes under 18" x 16".
  • Threaded brass inserts are provided for optional inner panel or terminal kit mounting. Mounting hardware is included.
  • Cover fastened with captive stainless steel screws in threaded brass inserts.
  • Enclosure available with clear polycarbonate cover to 16" x 14".
  • Captive oil resistant gasket provides a positive seal.
  • Available with polycarbonate flange or foot mount brackets for multi-directional mounting.
  • Operating temperatures between 130°C and -40°C (266°F to -40°F).
  • Impact index of 6.78J (5 ft/lb).
Product Finish:
  • Fiberglass polyester material has a grey finish.
  • Optional inner panels are available in white powder coated finished steel or unfinished aluminium, or fiberglass.
Product Standards:
  • UL 508A Type 1, 2, 3, 4, 4X, 12 and 13 (6P for solid covers only).
  • cUL Type 1, 2, 3, 4, 4X, 12 and 13 (6P for solid covers only) per CSA 22.2 No. 94.
  • Complies with:
    • NEMA Type 1, 2, 3, 4, 4X, 12 and 13 (6P for solid covers only).
    • IEC 60529, IP66 (IP68 for solid covers only).
How To Order
To order any product or confirm lead times for delivery, please email sales@kgaenclosures.com and include the following:
  • Company / Contact Name
  • Full Delivery Address
  • Contact Telephone Number
  • E-Mail Address
  • Confirmation of Part Number and Quantities Required
Or call 01535 636856. We aim to answer all E-Mail inquiries as quickly as possible.
Hammond Manufacturing Electrical Enclosures
KGA Enclosures Ltd are full authorised distributors of the Hammond Manufacturing Electrical Enclosures product range. This entire range is available from KGA Enclosures Ltd at great competitive pricing and with full customisation options on all applicable products.

To purchase any product or for more information on any product offered, simply call (+44) 01535 636856 or E-Mail: sales@kgaenclosures.com, where we will be happy to assist you. Or view the related product ranges from Hammond Manufacturing, which are all available from KGA Enclosures Ltd. Including the:
Customisation Options
What makes KGA Enclosures Ltd different from most other larger distributors is that we offer full customisation's services on all enclosures and accessories. All customisation work is undertaken by the relevant supplier, (some small projects are done utilizing outside contractors) at their own manufacturing facilities. These services include milling or punching of hole and slots into the enclosure or end plates for cables, connectors, switches etc. Printing and silk screening services allows for the additional of text, logo's and graphics onto both the enclosure and end plates, to allow the end user to easily identify the product as well as giving the final product a more elegant finish. Full customisation services - Click here for more information on full customisation services.
Share This Product
Share Product Range on Facebook Share Product Range on Twitter Share Product Range on LinkedIn
PJUF Series - Hammond Manufacturing Electrical Enclosures at KGA Enclosures Ltd
View Product Data Sheet
Product Options
Part No Product Information 1+ 10+ 25+ 50+ More
Solid Cover With Flange
PJU1084F Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
PJU1086F Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
PJU12106F Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
PJU14126F Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
PJU16148F Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
PJU181610F Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
PJU201610F Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
PJU664F Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
PJU864F Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
Solid Cover With Feet
PJU1084 Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
PJU1086 Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
PJU12106 Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
PJU14126 Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
PJU16148 Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
PJU181610 Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
PJU201610 Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
PJU664 Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
PJU864 Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
Clear Cover With Flange
PJU1084CCF Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
PJU1086CCF Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
PJU12106CCF Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
PJU14126CCF Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
PJU16148CCF Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
PJU664CCF Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
PJU864CCF Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
Clear Cover With Feet
PJU1084CC Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
PJU1086CC Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
PJU12106CC Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
PJU14126CC Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
PJU16148CC Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
PJU664CC Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
PJU864CC Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
For pricing confirmation and stock availability please contact us
Product Accessories
Inner Panels
Part No Product Information 1+ 10+ 25+ 50+ More
14R0505 Please Click Link For More Information £4.38 £4.03 £3.94 £3.81 More....
14R0705 Please Click Link For More Information £4.93 £4.54 £4.44 £4.29 More....
14R0907 Please Click Link For More Information £6.61 £6.08 £5.95 £5.75 More....
14R1109 Please Click Link For More Information £8.92 £8.21 £8.03 £7.76 More....
14R1311 Please Click Link For More Information £11.60 £10.67 £10.44 £10.09 More....
14R1513 Please Click Link For More Information £15.31 £14.09 £13.78 £13.32 More....
P1868 Please Click Link For More Information £29.48 £27.12 £26.53 £25.65 More....
P2068 Please Click Link For More Information £32.91 £30.28 £29.62 £28.63 More....
For pricing confirmation and stock availability please contact us
Hammond Manufacturing - Customisation Services
Modified Electronic Enclosures
Almost every enclosure will need some kind of modification to be useful. In house modifications can be tedious, over complicated and a distraction from your main core business. A third party shop can add time and expense. Let us help you to deliver quality products made to your exact specifications.
Hammond Manufacturing Customisation Services
Why choose Hammond Manufacturing to modify your enclosure
  • Hammond Manufacturing offers a wide selection and massive inventory of enclosures ready to be modified.
  • Typically the minimum order quantity is 25 pieces. This can vary depending on product and service required. Please note KGA Enclosures does not add on any charges.
  • Hammond has an experience enclosure modification team and two dedicated modification facilities in North America and the United Kingdom. They are knowledgeable, available and capable.
  • Hammond Manufacturing helps eliminate scrap and design errors with approval drawings to confirm correct interpretation of your deign required. Many orders will also include a fast delivery of sample enclosures for your inspection. These steps ensure that your assembly fits perfectly before heading into the mass production stage.
Popular modification services offered:
  • Holes
  • Cutouts
  • Tapping and countersinking.
  • Pressed-in hardware (Studs, Standoffs)
  • Silk screening
  • UV Printing
  • Special colours
  • Special length extrusions
  • Pre-Installed accessories
  • Available services vary by product
