Hammond Manufacturing Electrical Enclosures - PJUHF Series - NME - Junction Boxes

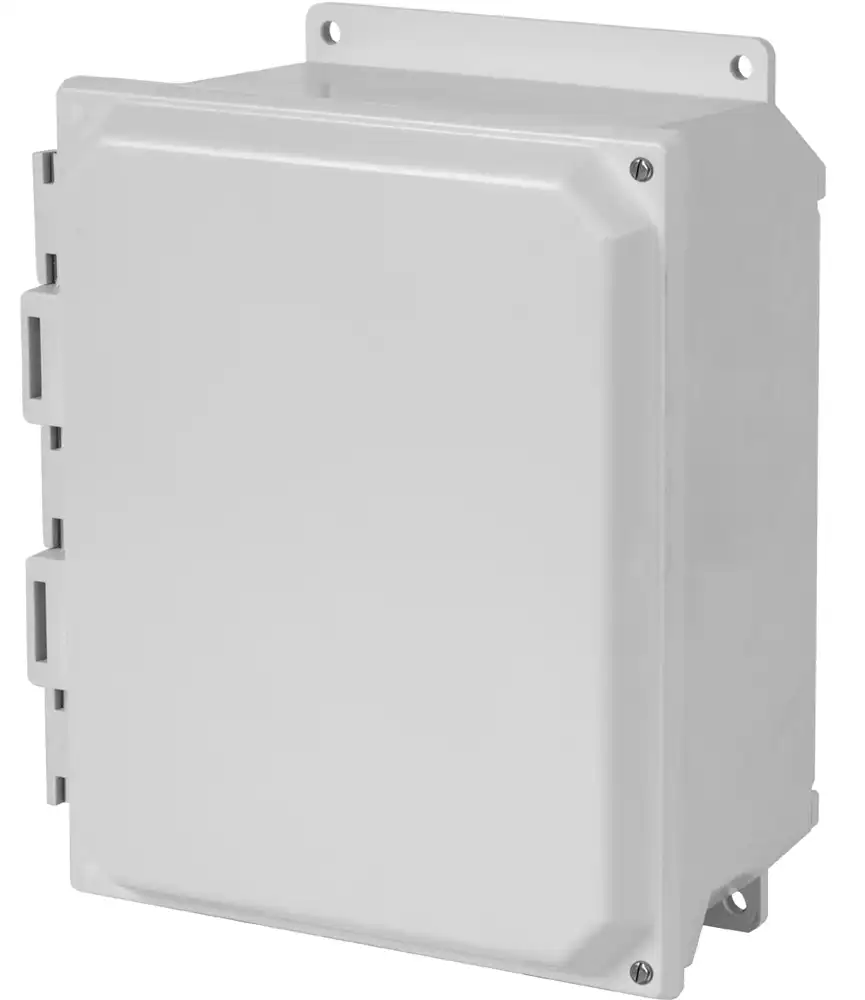

PJUHF Series - Type 4X Polyester Junction Box (Solid and Clear Cover)
Continuous Hinge Door With Screws
Product Application:
  • Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
  • Provides outstanding insulation and protection where equipment may be hosed down or be very wet.
  • Ideal in applications with high temperature or highly corrosive environments.
Product Construction:
  • Moulded fiberglass polyester enclosure with matching cover is easily punched, cut or drilled.
  • Enhanced UV inhibitors protect against outdoor weathering.
  • Standard JIC sizes under 18" x 16".
  • Threaded brass inserts are provided for optional inner panel or terminal kit mounting. Mounting hardware is included.
  • Cover fastened with captive stainless steel screws in threaded brass inserts.
  • Enclosure available with clear polycarbonate cover to 16" x 20".
  • Moulded hinge with stainless steel pin.
  • Captive oil resistant gasket provides a positive seal.
  • Available with polycarbonate flange or foot mount brackets for multi-directional mounting.
  • Operating temperatures between 130°C and -40°C (266°F to -40°F).
  • Impact index of 6.78J (5 ft/lb).
Product Finish:
  • Fiberglass polyester material has a grey finish.
  • Optional inner panels are available in white powder coated finished steel or unfinished aluminium, or fiberglass.
Product Standards:
  • UL 508A Type 1, 2, 3, 4, 4X, 12 and 13.
  • cUL Type 1, 2, 3, 4, 4X, 12 and 13 per CSA 22.2 No. 94.
  • Complies with:
    • NEMA Type 1, 2, 3, 4, 4X, 12 and 13.
    • IEC 60529, IP66.
How To Order
To order any product or confirm lead times for delivery, please email sales@kgaenclosures.com and include the following:
  • Company / Contact Name
  • Full Delivery Address
  • Contact Telephone Number
  • E-Mail Address
  • Confirmation of Part Number and Quantities Required
Or call 01535 636856. We aim to answer all E-Mail inquiries as quickly as possible.
Hammond Manufacturing Electrical Enclosures
KGA Enclosures Ltd are full authorised distributors of the Hammond Manufacturing Electrical Enclosures product range. This entire range is available from KGA Enclosures Ltd at great competitive pricing and with full customisation options on all applicable products.

To purchase any product or for more information on any product offered, simply call (+44) 01535 636856 or E-Mail: sales@kgaenclosures.com, where we will be happy to assist you. Or view the related product ranges from Hammond Manufacturing, which are all available from KGA Enclosures Ltd. Including the:
Customisation Options
What makes KGA Enclosures Ltd different from most other larger distributors is that we offer full customisation's services on all enclosures and accessories. All customisation work is undertaken by the relevant supplier, (some small projects are done utilizing outside contractors) at their own manufacturing facilities. These services include milling or punching of hole and slots into the enclosure or end plates for cables, connectors, switches etc. Printing and silk screening services allows for the additional of text, logo's and graphics onto both the enclosure and end plates, to allow the end user to easily identify the product as well as giving the final product a more elegant finish. Full customisation services - Click here for more information on full customisation services.
Share This Product
Share Product Range on Facebook Share Product Range on Twitter Share Product Range on LinkedIn
PJUHF Series - Hammond Manufacturing Electrical Enclosures at KGA Enclosures Ltd
View Product Data Sheet
Product Options
Part No Product Information 1+ 10+ 25+ 50+ More
Solid Cover With Flange
PJU1084HF Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
PJU1086HF Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
PJU12106HF Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
PJU14126HF Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
PJU16148HF Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
PJU181610HF Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
PJU201610HF Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
PJU664HF Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
PJU864HF Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
Solid Cover With Feet
PJU1084H Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
PJU1086H Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
PJU12106H Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
PJU14126H Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
PJU16148H Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
PJU181610H Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
PJU201610H Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
PJU664H Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
PJU864H Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
Clear Cover With Flange
PJU1084CCHF Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
PJU1086CCHF Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
PJU12106CCHF Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
PJU14126CCHF Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
PJU16148CCHF Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
PJU201610CCHF Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
PJU664CCHF Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
PJU864CCHF Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
Clear Cover With Feet
PJU1084CCH Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
PJU1086CCH Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
PJU12106CCH Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
PJU14126CCH Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
PJU16148CCH Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
PJU201610CCH Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
PJU664CCH Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
PJU864CCH Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
For pricing confirmation and stock availability please contact us
Product Accessories
Inner Panels
Part No Product Information 1+ 10+ 25+ 50+ More
14R0505 Please Click Link For More Information £4.38 £4.03 £3.94 £3.81 More....
14R0705 Please Click Link For More Information £4.93 £4.54 £4.44 £4.29 More....
14R0907 Please Click Link For More Information £6.61 £6.08 £5.95 £5.75 More....
14R1109 Please Click Link For More Information £8.92 £8.21 £8.03 £7.76 More....
14R1311 Please Click Link For More Information £11.60 £10.67 £10.44 £10.09 More....
14R1513 Please Click Link For More Information £15.31 £14.09 £13.78 £13.32 More....
P1868 Please Click Link For More Information £29.48 £27.12 £26.53 £25.65 More....
P2068 Please Click Link For More Information £32.91 £30.28 £29.62 £28.63 More....
For pricing confirmation and stock availability please contact us
