Hammond Manufacturing Electrical Enclosure Range | PJHD Series | NME - Junction Boxes

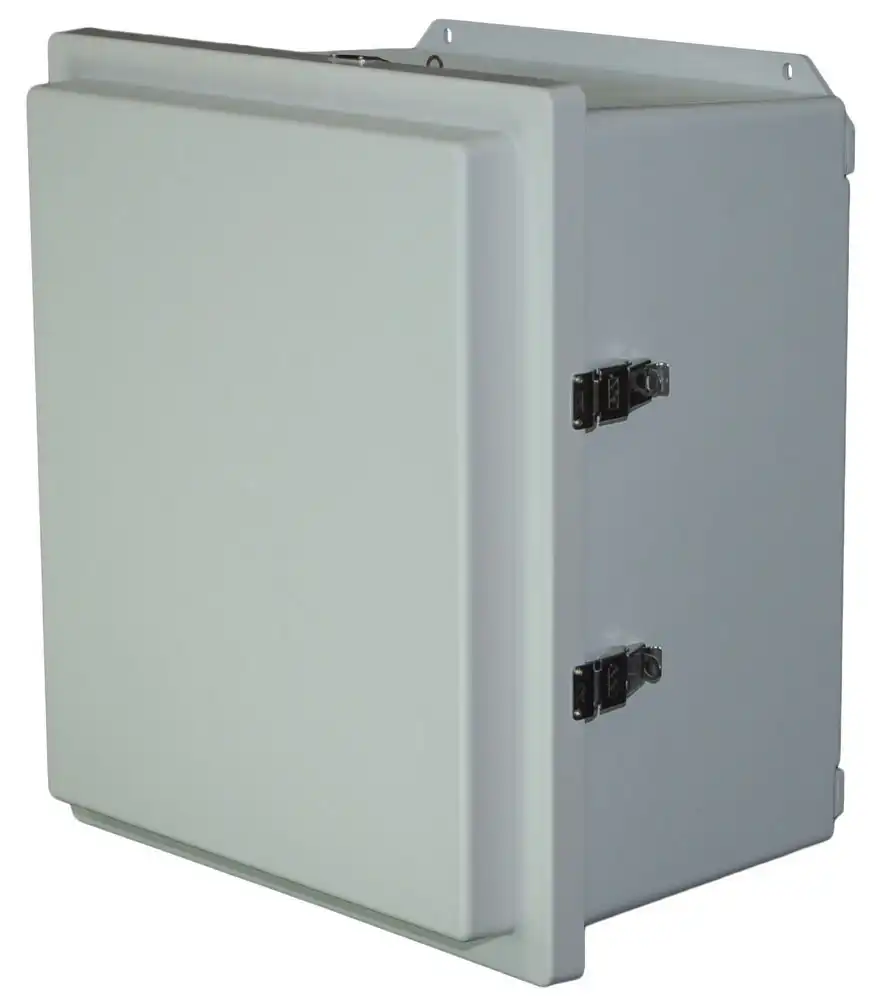

PJHD Series - Type 4X Fiberglass Junction Box
Heavy Duty PJ Snap Latch
Product Application:
- Ideal to insulate and house off-grid solar batteries or remote monitoring equipment in outdoor applications.
- Especially well suited for high temperature or corrosive environments.
- Protects from UV, dirt, dust, oil, and water.
- Moulded in UV stabilized ultraguard FRP material with 316 stainless hardware.
Product Features:
- Increased wall thickness of 0.200" (5mm).
- Pad-lockable snap latches.
- Gasket made of closed cell neoprene core encased in a continuous channel.
Product Dimensions:
- Body = 18.24" H x 16.24" W x 10.13" D.
- Body and Lid overall Height = 12.1".
- Optional Inner Panels:
- P1868 (White painted steel).
- F1868 (Fiberglass).
- A1868 (Unfinished aluminium).
Hammond Manufacturing Electrical Enclosures
KGA Enclosures Ltd are full authorised distributors of the Hammond Manufacturing Electrical Enclosures product range. The entire Hammond Manufacturing range is available from KGA Enclosures Ltd at great competitive pricing and with full customisation options on all applicable products.
To purchase any product or for more information on any product offered, simply call (+44) 01535 636856 or E-Mail: sales@kgaenclosures.com, where we will be happy to assist you.
To purchase any product or for more information on any product offered, simply call (+44) 01535 636856 or E-Mail: sales@kgaenclosures.com, where we will be happy to assist you.
Hammond Manufacturing Product Ranges
- View - Hammond Enclosures Range
- View - Hammond Electrical Enclosures Range
- View - Hammond Power Distribution Range
- View - Hammond Rack Systems Range
- View - Hammond Transformers Range
- View - Ritec Plastic Enclosures Range
Information/Purchase Request
For more information on any product, or to purchase/buy any product, please email sales@kgaenclosures.com and include the following:
- Company / Contact Name
- Full Delivery Address
- Contact Telephone Number
- E-Mail Address
- Confirmation of Part Number and Quantities Required
Product Customisation Options
What makes KGA Enclosures Ltd different from most other larger distributors is that we offer full customisation services on all enclosures and accessories. All customisation work is undertaken by the relevant supplier, (some small projects are done utilizing outside contractors) at their own manufacturing facilities. These services include milling or punching holes and slots into the enclosure or end plates for cables, connectors, switches, etc. Printing and silk screening services allow for the addition of text, logos, and graphics onto both the enclosure and end plates, to allow the end user to easily identify the product and also to give the final product a more elegant finish.
Share This Page
| Product Data Sheet |
|---|
| Product Options |
| Part No | Brand | Product Information | 1+ | 10+ | 25+ | 50+ | More.... |
|---|---|---|---|---|---|---|---|
| PJHD181610RLF | Hammond | Please click link for more information | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More.... |
| Contact us for pricing and stock confirmation. |
|---|
| Please use the Product Data Sheet for product accessory compatibility. |
|---|
| Product Accessories |
| Inner Panels |
|---|
| Part No | Brand | Product Information | 1+ | 10+ | 25+ | 50+ | More.... |
|---|---|---|---|---|---|---|---|
| A1868 | Hammond | Please click link for more information | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More.... |
| F1868 | Hammond | Please click link for more information | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More.... |
| P1868 | Hammond | Please click link for more information | £29.48 | £27.12 | £26.53 | £25.65 | More.... |
| Contact us for pricing and stock confirmation. |
|---|
Modified Electronic Enclosures
Almost every enclosure will need some kind of modification to be useful. In house modifications can be tedious, over complicated and a distraction from your main core business. A third party shop can add time and expense. Let us help you to deliver quality products made to your exact specifications.
Why choose Hammond Manufacturing to modify your enclosure
- Hammond Manufacturing offers a wide selection and massive inventory of enclosures ready to be modified.
- Typically the minimum order quantity is 25 pieces. This can vary depending on product and service required. Please note KGA Enclosures does not add on any charges.
- Hammond has an experience enclosure modification team and two dedicated modification facilities in North America and the United Kingdom. They are knowledgeable, available and capable.
- Hammond Manufacturing helps eliminate scrap and design errors with approval drawings to confirm correct interpretation of your deign required. Many orders will also include a fast delivery of sample enclosures for your inspection. These steps ensure that your assembly fits perfectly before heading into the mass production stage.
Popular modification services offered:
- Holes
- Cutouts
- Tapping and countersinking.
- Pressed-in hardware (Studs, Standoffs)
- Silk screening
- UV Printing
- Special colours
- Special length extrusions
- Pre-Installed accessories
- Available services vary by product
