Hammond Manufacturing Electrical Enclosures | PCJ-SC Series | NME - Junction Boxes

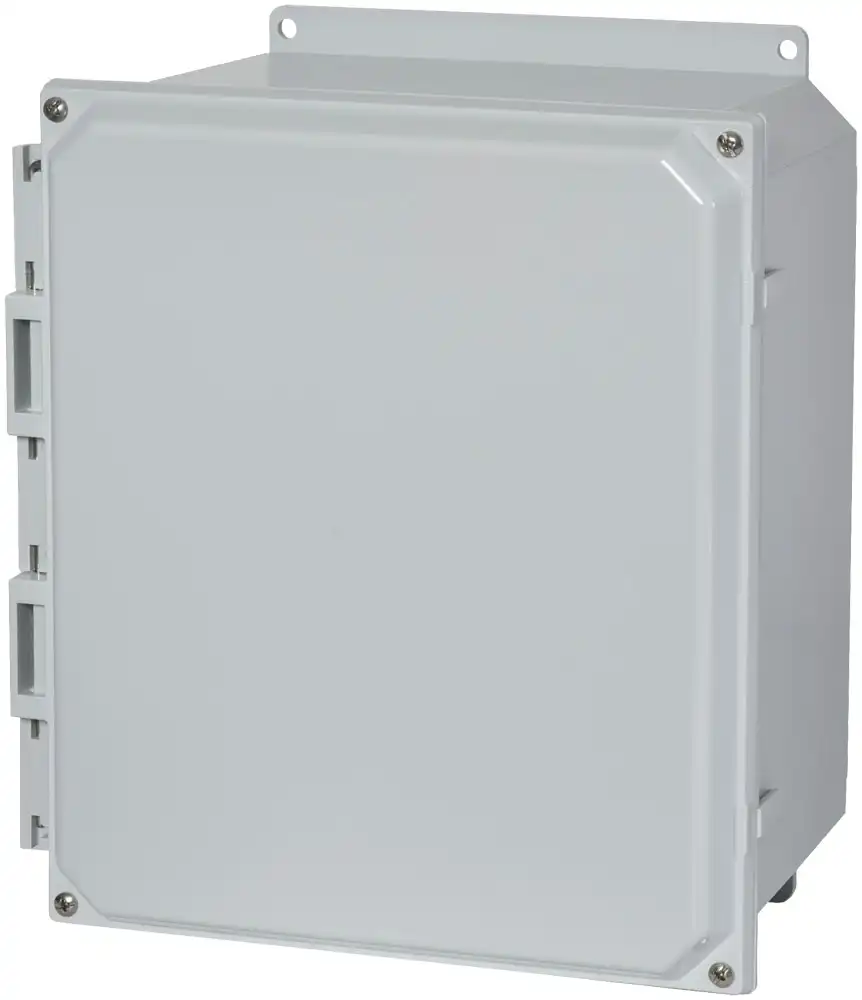

PCJ-SC Series - Type 4X Polycarbonate Junction Box (Solid and Clear Cover)
Lift-Off Screw Cover
Product Application:
  • Designed to insulate and protect controls and components in both indoor and outdoor conditions.
  • Ideal for industrial pump controls, waste water, and irrigation control along with solar/wind and chemical plants.
Product Construction:
  • Injection moulded polycarbonate thermoplastic enclosure with matching cover is easily punched, cut, or drilled.
  • Enhanced UV inhibitors protect against outdoor weathering.
  • Threaded brass inserts are provided for optional inner panel or terminal kit mounting. Mounting hardware is included.
  • Stainless steel 316 screw fasteners.
  • Lift-off cover is fixed with 4 stainless steel screws.
  • Enclosure available with clear polycarbonate cover.
  • Captive oil resistant gasket provides a positive seal.
  • Available with polycarbonate flange or foot mount brackets for multi-directional mounting.
  • Operating temperatures between 130°C and -35°C (266°F to -31°F).
  • Impact index of 16 J (12 ft/lb).
Product Finish:
  • Polycarbonate material has a light grey finish.
  • Optional inner panels are available in white powder coated finished steel, unfinished aluminium, or fiberglass.
Product Standards:
  • UL 508A Type 1, 2, 3, 3R, 4, 4X, 12 and 13.
  • cUL Type 1, 2, 3, 3R, 4, 4X, 12 and 13 per CSA 22.2 No. 94.
  • Complies with:
    • NEMA Type 1, 2, 3, 3R, 4, 4X, 12 and 13.
    • IEC 60529, IP66.
    • Flammability V-O per UL 94.
    • UV rating (f1) per UL746C - UV stabilized for outdoor use.
    • Compliant with RoHS directive.
Hammond Manufacturing Electrical Enclosures
KGA Enclosures Ltd are full authorised distributors of the Hammond Manufacturing Electrical Enclosures product range. This entire range is available from KGA Enclosures Ltd at great competitive pricing and with full customisation options on all applicable products.

Please Remember - Only use authorised distributors to purchase these products. Using authorised distributors will guarantee you receiving a genuine product which, by using KGA Enclosures, we can guarantee you receiving.
Purchase / Buy Products
For more information or to purchase / buy any product or for pricing and stock confirmation, please call (+44) 01535 636856, or email sales@kgaenclosures.com. Please include the following where applicable:
  • Company / Contact name.
  • Full delivery address.
  • Contact telephone number.
  • E-Mail address.
  • Confirmation of part numbers and quantities required.
We aim to answer all E-Mail inquiries as quickly as possible.
Payment Options
KGA Enclosures Ltd accepts the following payment methods:
  • Bank Transfer (BACS)
  • Credit / Debit Card Payments
  • PayPal Payments
  • Cheques
Payment terms are available for all customers, which can be negotiated, contact us for more information.
PCJ-SC Series - Hammond Manufacturing Electrical Enclosures at KGA Enclosures Ltd - Click for a larger image
Hammond Manufacturing Product Ranges
Did you know, the entire Hammond Manufacturing product range is all available here at KGA Enclosures Ltd. If you find a lower price, we aim to match and beat it. For more information on any range, please click the link below.
Product Customisation Options
What makes KGA Enclosures Ltd different from most other larger distributors is that we offer full customisation services on all enclosures and accessories. All customisation work is undertaken by the relevant supplier, (some smaller projects are done by utilizing outside contractors) at their own manufacturing facilities. These services include milling or punching holes and slots into the enclosure or end plates for cables, connectors, switches, etc. Printing and silk screening services allow for the addition of text, logos and graphics onto both the enclosure and end plates, to allow the end user to easily identify the product and also to give the final product a more elegant finish. Contact us today to see how we can assist you.
Share This Product Range:
Share Product Range on Facebook Share Product Range on Twitter Share Product Range on LinkedIn

The PCJ-SC Series from Hammond Manufacturing Electrical Enclosures are available at KGA Enclosures, a trusted and authorised distributor for Hammond Manufacturing Electrical Enclosures.

Product Options
Part No Brand Product Information 1+ 10+ 25+ 50+ More....
Solid Cover With Flange
PCJ1082F Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
PCJ1084F Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
PCJ1086F Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
PCJ12104F Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
PCJ12106F Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
PCJ12126F Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
PCJ14126F Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
PCJ16148F Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
PCJ181610F Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
PCJ201610F Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
PCJ664F Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
PCJ864F Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
PCJ884F Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
Solid Cover With Feet
PCJ1082 Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
PCJ1084 Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
PCJ1086 Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
PCJ12104 Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
PCJ12106 Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
PCJ12126 Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
PCJ14126 Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
PCJ16148 Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
PCJ181610 Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
PCJ201610 Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
PCJ443 Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
PCJ664 Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
PCJ864 Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
PCJ884 Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
Clear Cover With Flange
PCJ1082CCF Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
PCJ1084CCF Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
PCJ1086CCF Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
PCJ12104CCF Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
PCJ12106CCF Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
PCJ12126CCF Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
PCJ14126CCF Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
PCJ16148CCF Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
PCJ181610CCF Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
PCJ201610CCF Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
PCJ664CCF Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
PCJ864CCF Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
PCJ884CCF Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
Clear Cover With Feet
PCJ1082CC Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
PCJ1084CC Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
PCJ1086CC Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
PCJ12104CC Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
PCJ12106CC Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
PCJ12126CC Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
PCJ14126CC Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
PCJ16148CC Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
PCJ181610CC Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
PCJ201610CC Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
PCJ443CC Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
PCJ664CC Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
PCJ864CC Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
PCJ884CC Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
Contact us for pricing and stock confirmation.
Please use the Product Data Sheet for product accessory compatibility.
Product Accessories
Inner Panels
Part No Brand Product Information 1+ 10+ 25+ 50+ More....
14R1513 Hammond Please click link for more information £15.31 £14.09 £13.78 £13.32 More....
P1868 Hammond Please click link for more information £29.48 £27.12 £26.53 £25.65 More....
P2068 Hammond Please click link for more information £32.91 £30.28 £29.62 £28.63 More....
PCJR0303 Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
PCJR0505 Hammond Please click link for more information £7.09 £6.52 £6.38 £6.17 More....
PCJR0705 Hammond Please click link for more information £8.03 £7.39 £7.23 £6.98 More....
PCJR0808 Hammond Please click link for more information £9.67 £8.90 £8.70 £8.41 More....
PCJR0907 Hammond Please click link for more information £10.92 £10.04 £9.83 £9.50 More....
PCJR1109 Hammond Please click link for more information £14.68 £13.51 £13.21 £12.77 More....
PCJR1111 Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
PCJR1311 Hammond Please click link for more information £19.16 £17.63 £17.25 £16.67 More....
Contact us for pricing and stock confirmation.
Hammond Manufacturing - Customisation Services
Modified Electronic Enclosures
Almost every enclosure will need some kind of modification to be useful. In house modifications can be tedious, over complicated and a distraction from your main core business. A third party shop can add time and expense. Let us help you to delivery quality products made to your exact specifications.
Hammond Manufacturing - Customisation Services
Why Choose Hammond Manufacturing To Modify Your Enclosures
  • Hammond Manufacturing offers a wide selection and massive inventory of enclosures ready to be modified.
  • Typically the minimum order quantity is 25 pieces, this can vary depending on product and service required. Please note KGA Enclosures does not add on any extra charges.
  • Hammond has an experienced enclosure modification team and two dedicated modification facilities in North America and the United Kingdom. They are knowledgeable, available and capable.
  • Hammond helps eliminate scrap and design errors with approval drawings to confirm correct interpretation of your design required. Many orders will also include a fast delivery of a sample enclosure for your inspection. These steps ensure that your assembly fits perfectly before heading into the mass production stage.
Popular Modification Services Offered
  • Holes.
  • Cutouts.
  • Tapping and countersink.
  • Pressed-in hardware (Studs, Standoffs).
  • Silk screening.
  • UV Printing.
  • Special colours.
  • Special extrusion lengths.
  • Pre-Installed accessories.
  • Available services vary by product.
