HME Series - MFE - Freestanding Enclosures - Hammond Manufacturing Electrical Enclosures

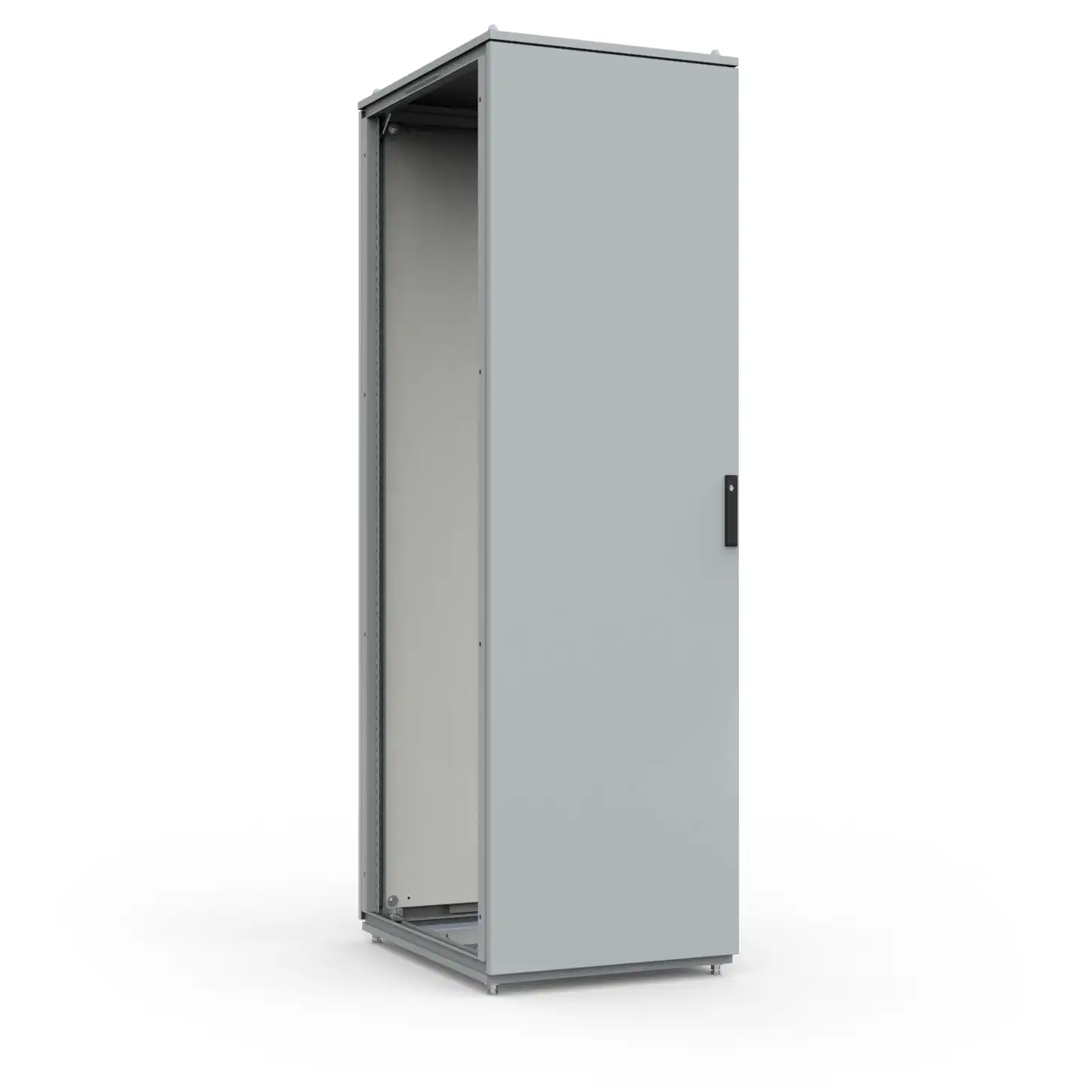

HME Series - Type 12 Mild Steel Modular Freestanding Enclosure
Hinge Door With Various Handle Options
Product Application
- The HME product line provides users with a rugged housing for industrial control and operator interface in industrial environments.
- Modular design permits joining of units together for large scale and mixed use applications.
- Frame's 25mm hole pattern provides extensive component and accessory mounting flexibility.
- A broad range of industry standard sizes are offered.
Product Configuration
- Frame.
- Removable solid top panel.
- Lifting eyebolts (4).
- Removable bottom panel with gland plates.
- Solid front door with door frame.
- Removable rear cover panel.
- Inner mounting panel.
Product Construction
- Formed 14 gauge steel.
- Fully welded frame with 25mm hole pattern for superior mounting flexibility.
- Foam gasket on all openings provides a dust-tight seal.
- Reinforced eyebolts are provided for easy enclosure lifting.
- Frames can be joined together with an optional joining kit.
- Doors can be easily interchanged, removed and/or reversed.
- Door opening 135°.
- Optional formed 14 gauge steel side panels are sold separately (in pairs).
- Bonding and grounding studs are provided for all doors and panels.
Product Finish
- Phosphatized and finished in RAL 7035 light grey powder coating.
- Inner panel is unpainted galvanized 12 gauge steel.
Product Standards
- UL 508A Type 12.
- CSA Type 12.
- Complies with:
- NEMA Type 12.
- IEC 60529 IP54.
Hammond Manufacturing Electrical Enclosures
KGA Enclosures Ltd are full authorised distributors of the Hammond Manufacturing Electrical Enclosures product range. This entire range is available from KGA Enclosures Ltd at great competitive pricing and with full customisation options on all applicable products.
Please remember - KGA Enclosures Ltd are authorised distributors of this product range. Please only use authorised distributors to purchase these products. This will then ensure you receive a genuine product.
Please remember - KGA Enclosures Ltd are authorised distributors of this product range. Please only use authorised distributors to purchase these products. This will then ensure you receive a genuine product.
Share This Product Range |
|---|
   |
Hammond Manufacturing Product Ranges
Did you know you can find the entire Hammond Manufacturing product range here at KGA Enclosures Ltd?
We offer all of these products at great competitive prices and with full customisation options where applicable. If you find a lower price, we will match it and beat it. That is our guarantee. For more information on any range, please click the links below:
We offer all of these products at great competitive prices and with full customisation options where applicable. If you find a lower price, we will match it and beat it. That is our guarantee. For more information on any range, please click the links below:
- View the Hammond Enclosures Range
- View the Hammond Electrical Enclosures Range
- View the Hammond Power Distribution Range
- View the Hammond Rack Solutions Range
- View the Hammond Transformers Range
- View the Ritec Plastic Enclosures Range
The HME Series - MFE - Freestanding Enclosures - From Hammond Manufacturing Electrical Enclosures are available from KGA Enclosures, at great low prices.
| Product Options |
| Please email all orders and enquiries to sales@kgaenclosures.com |
|---|
| Part No | Manufacturer | Product Information | 1+ | 10+ | 25+ | 50+ | More..... |
|---|---|---|---|---|---|---|---|
| HME1465 | Hammond | Click Part Number For Details | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More..... |
| HME1466 | Hammond | Click Part Number For Details | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More..... |
| HME1468 | Hammond | Click Part Number For Details | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More..... |
| HME1485 | Hammond | Click Part Number For Details | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More..... |
| HME1486 | Hammond | Click Part Number For Details | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More..... |
| HME1488 | Hammond | Click Part Number For Details | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More..... |
| HME1665 | Hammond | Click Part Number For Details | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More..... |
| HME1666 | Hammond | Click Part Number For Details | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More..... |
| HME1668 | Hammond | Click Part Number For Details | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More..... |
| HME1685 | Hammond | Click Part Number For Details | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More..... |
| HME1686 | Hammond | Click Part Number For Details | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More..... |
| HME1688 | Hammond | Click Part Number For Details | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More..... |
| HME18104 | Hammond | Click Part Number For Details | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More..... |
| HME18105 | Hammond | Click Part Number For Details | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More..... |
| HME18106 | Hammond | Click Part Number For Details | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More..... |
| HME18108 | Hammond | Click Part Number For Details | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More..... |
| HME1864 | Hammond | Click Part Number For Details | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More..... |
| HME1865 | Hammond | Click Part Number For Details | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More..... |
| HME1866 | Hammond | Click Part Number For Details | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More..... |
| HME1868 | Hammond | Click Part Number For Details | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More..... |
| HME1884 | Hammond | Click Part Number For Details | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More..... |
| HME1885 | Hammond | Click Part Number For Details | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More..... |
| HME1886 | Hammond | Click Part Number For Details | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More..... |
| HME1888 | Hammond | Click Part Number For Details | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More..... |
| HME20105 | Hammond | Click Part Number For Details | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More..... |
| HME20106 | Hammond | Click Part Number For Details | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More..... |
| HME20108 | Hammond | Click Part Number For Details | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More..... |
| HME2064 | Hammond | Click Part Number For Details | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More..... |
| HME2065 | Hammond | Click Part Number For Details | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More..... |
| HME2066 | Hammond | Click Part Number For Details | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More..... |
| HME2068 | Hammond | Click Part Number For Details | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More..... |
| HME2084 | Hammond | Click Part Number For Details | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More..... |
| HME2085 | Hammond | Click Part Number For Details | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More..... |
| HME2086 | Hammond | Click Part Number For Details | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More..... |
| HME2088 | Hammond | Click Part Number For Details | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More..... |
| HME22105 | Hammond | Click Part Number For Details | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More..... |
| HME22106 | Hammond | Click Part Number For Details | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More..... |
| HME2265 | Hammond | Click Part Number For Details | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More..... |
| HME2266 | Hammond | Click Part Number For Details | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More..... |
| HME2285 | Hammond | Click Part Number For Details | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More..... |
| HME2286 | Hammond | Click Part Number For Details | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More..... |
| HME2288 | Hammond | Click Part Number For Details | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More..... |
| Please contact us for stock and price confirmation |
|---|
