Hammond Manufacturing Electrical Enclosures - HMET Series - Modular Freestanding Enclosures

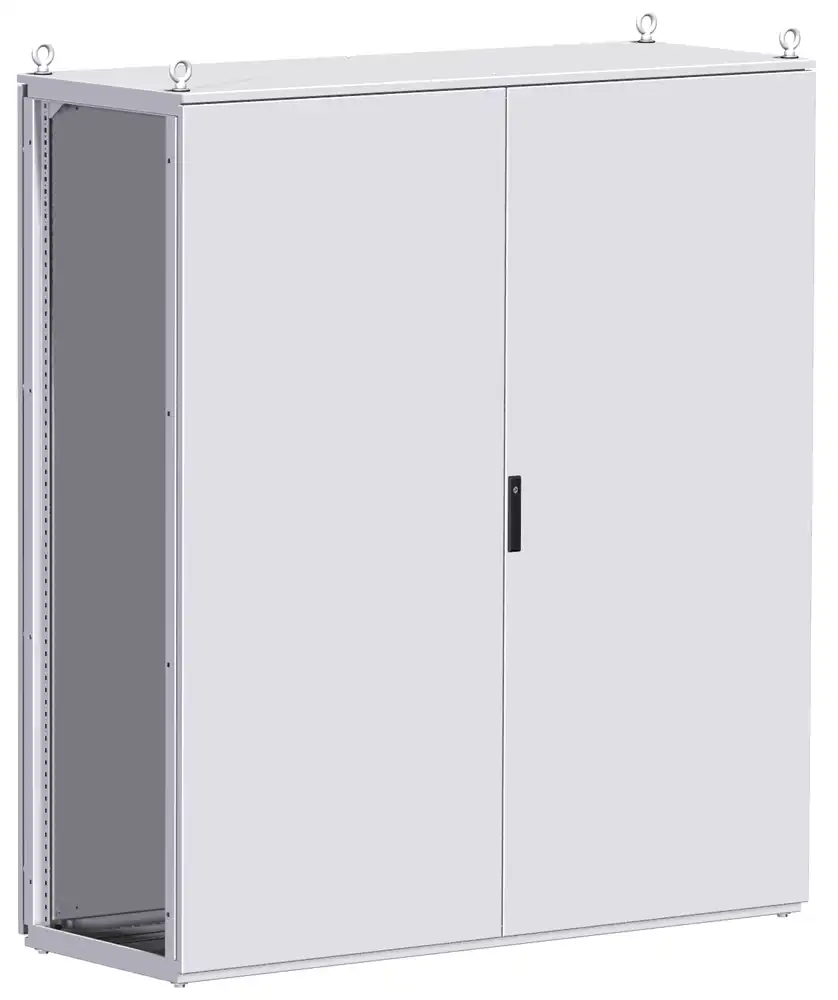

HMET Series - Type 12 Mild Steel Two Door Module Freestanding Enclosures
Hinge Door With Various Handle Options
Product Application:
  • The HMET 2 door product line provides users with a rugged housing for industrial control and operator interface in industrial environments.
  • Modular design permits joining of units together for large scale and mixed use applications.
  • Frame's 25mm hole pattern provides extensive component and accessory mounting flexibility.
  • A broad range of industry standard sizes are offered.
Product Standard Configuration:
  • Frame.
  • Removable solid top panel.
  • Lifting eyebolts (4).
  • Removable bottom panel with gland plates.
  • Two overlapping solid front doors with door frames.
  • Removable rear cover panels (1 or 2 depending on width) with welded rear center post on units 1000mm and wider.
  • Full width inner mounting panel.
Product Construction:
  • Formed 14 gauge steel.
  • Fully welded frame with 25mm hole pattern for superior mounting flexibility.
  • Foam gasket on all openings provides a dust-tight seal.
  • Reinforced eyebolts are provided for easy enclosure lifting.
  • Frames can be joined together with an optional joining kit.
  • Doors can be easily interchanged, removed and/or reversed.
  • Door opening 135°.
  • Optional formed 14 gauge steel side panels are sold separately (in pairs).
  • Bonding and grounding studs are provided for all doors and panels.
Product Finish:
  • Phosphatized and finished in RAL 7035 light grey powder coating.
  • Inner panel is unpainted galvanized 12 gauge steel.
Product Standards:
  • UL 508A Type 12.
  • CSA Type 12.
  • Complies with:
    • NEMA Type 12.
    • IEC 60529, IP54.
How To Order
To order any product or confirm lead times for delivery, please email sales@kgaenclosures.com and include the following:
  • Company / Contact Name
  • Full Delivery Address
  • Contact Telephone Number
  • E-Mail Address
  • Confirmation of Part Number and Quantities Required
Or call 01535 636856. We aim to answer all E-Mail inquiries as quickly as possible.
Hammond Manufacturing Electrical Enclosures
KGA Enclosures Ltd are full authorised distributors of the Hammond Manufacturing Electrical Enclosures product range. This entire range is available from KGA Enclosures Ltd at great competitive pricing and with full customisation options on all applicable products.

To purchase any product or for more information on any product offered, simply call (+44) 01535 636856 or E-Mail: sales@kgaenclosures.com, where we will be happy to assist you. Or view the related product ranges from Hammond Manufacturing, which are all available from KGA Enclosures Ltd. Including the:
Customisation Options
What makes KGA Enclosures Ltd different from most other larger distributors is that we offer full customisation's services on all enclosures and accessories. All customisation work is undertaken by the relevant supplier, (some small projects are done utilizing outside contractors) at their own manufacturing facilities. These services include milling or punching of hole and slots into the enclosure or end plates for cables, connectors, switches etc. Printing and silk screening services allows for the additional of text, logo's and graphics onto both the enclosure and end plates, to allow the end user to easily identify the product as well as giving the final product a more elegant finish. Full customisation services - Click here for more information on full customisation services.
Share This Product
Share Product Range on Facebook Share Product Range on Twitter Share Product Range on LinkedIn
HMET Series - Hammond Manufacturing Electrical Enclosures at KGA Enclosures Ltd
View Product Data Sheet
Product Options
Part No Product Information 1+ 10+ 25+ 50+ More
HMET14125 Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
HMET14126 Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
HMET14128 Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
HMET16125 Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
HMET16126 Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
HMET16128 Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
HMET18104 Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
HMET18124 Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
HMET18125 Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
HMET18126 Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
HMET18128 Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
HMET18164 Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
HMET18165 Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
HMET18166 Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
HMET18168 Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
HMET18184 Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
HMET18185 Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
HMET18186 Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
HMET18188 Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
HMET1885 Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
HMET1886 Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
HMET20105 Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
HMET20106 Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
HMET20124 Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
HMET20125 Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
HMET20126 Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
HMET20128 Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
HMET20165 Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
HMET20166 Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
HMET20168 Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
HMET20185 Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
HMET20186 Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
HMET20188 Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
HMET22106 Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
HMET22125 Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
HMET22126 Please Click Link For More Information P.O.A. P.O.A. P.O.A. P.O.A. More....
For pricing confirmation and stock availability please contact us
Hammond Manufacturing - Customisation Services
Modified Electronic Enclosures
Almost every enclosure will need some kind of modification to be useful. In house modifications can be tedious, over complicated and a distraction from your main core business. A third party shop can add time and expense. Let us help you to deliver quality products made to your exact specifications.
Hammond Manufacturing Customisation Services
Why choose Hammond Manufacturing to modify your enclosure
  • Hammond Manufacturing offers a wide selection and massive inventory of enclosures ready to be modified.
  • Typically the minimum order quantity is 25 pieces. This can vary depending on product and service required. Please note KGA Enclosures does not add on any charges.
  • Hammond has an experience enclosure modification team and two dedicated modification facilities in North America and the United Kingdom. They are knowledgeable, available and capable.
  • Hammond Manufacturing helps eliminate scrap and design errors with approval drawings to confirm correct interpretation of your deign required. Many orders will also include a fast delivery of sample enclosures for your inspection. These steps ensure that your assembly fits perfectly before heading into the mass production stage.
Popular modification services offered:
  • Holes
  • Cutouts
  • Tapping and countersinking.
  • Pressed-in hardware (Studs, Standoffs)
  • Silk screening
  • UV Printing
  • Special colours
  • Special length extrusions
  • Pre-Installed accessories
  • Available services vary by product
