CN4STSS Series - Type 4X Stainless Steel Splitter Trough
Hinged Door With Quarter Turn
Product Application
  • The splitter troughs are designed for distribution of up to 600 A (max) service using either 3 or 4 wires. 75°C conductor ampacity permitted.
  • Stainless steel construction provides corrosion resistance in outdoor or more hostile environments.
Product Construction
  • Formed and spot welded from 16 gauge 304 stainless steel. When width is 8" or more, 14 gauge.
  • Factory installed splitter blocks.
  • Smooth, continuously welded seams ground smooth.
  • Door stiffeners are provided where required for increased strength and rigidity - designed to also permit additional mounting options.
  • Formed lip on enclosure to exclude flowing liquids and contaminants.
  • Door latches feature the added safety of quarter turn slot requiring use of tool for opening.
  • Doors may be easily removed for modifications and are interchangeable.
  • Seamless poured-in place gasket.
  • Collar studs provided for mounting inner panel.
  • Includes hardware kit with panel mounting nuts and sealing washers for wall mounting holes.
  • Hinges are constructed from 304 stainless steel.
  • Hinge pins are stainless steel.
  • Inner panel is included.
Product Finish
  • Cover and enclosure are natural stainless steel with a smooth brushed finish.
  • Inner panel is finished in white powder coating.
Product Standards
  • CSA Certified Type 3R, 12, 4X.
  • Complies with:
    • IEC 60529, IP66.
Hammond Manufacturing Electrical Enclosures
KGA Enclosures Ltd are full authorised distributors of the Hammond Manufacturing Electrical Enclosures product range. This entire range is available from KGA Enclosures Ltd at great competitive pricing and with full customisation options on all applicable products.

Please Remember - Only use authorised distributors to purchase these products. Using authorised distributors will guarantee you receiving a genuine product which, by using KGA Enclosures, we can guarantee you receiving.
Purchase / Buy Products
For more information or to purchase / buy any product or for pricing and stock confirmation, please call (+44) 01535 636856, or email sales@kgaenclosures.com. Please include the following where applicable:
  • Company / Contact name.
  • Full delivery address.
  • Contact telephone number.
  • E-Mail address.
  • Confirmation of part numbers and quantities required.
We aim to answer all E-Mail inquiries as quickly as possible.
Payment Options
KGA Enclosures Ltd accepts the following payment methods:
  • Bank Transfer (BACS)
  • Credit / Debit Card Payments
  • PayPal Payments
  • Cheques
Payment terms are available for all customers, which can be negotiated, contact us for more information.

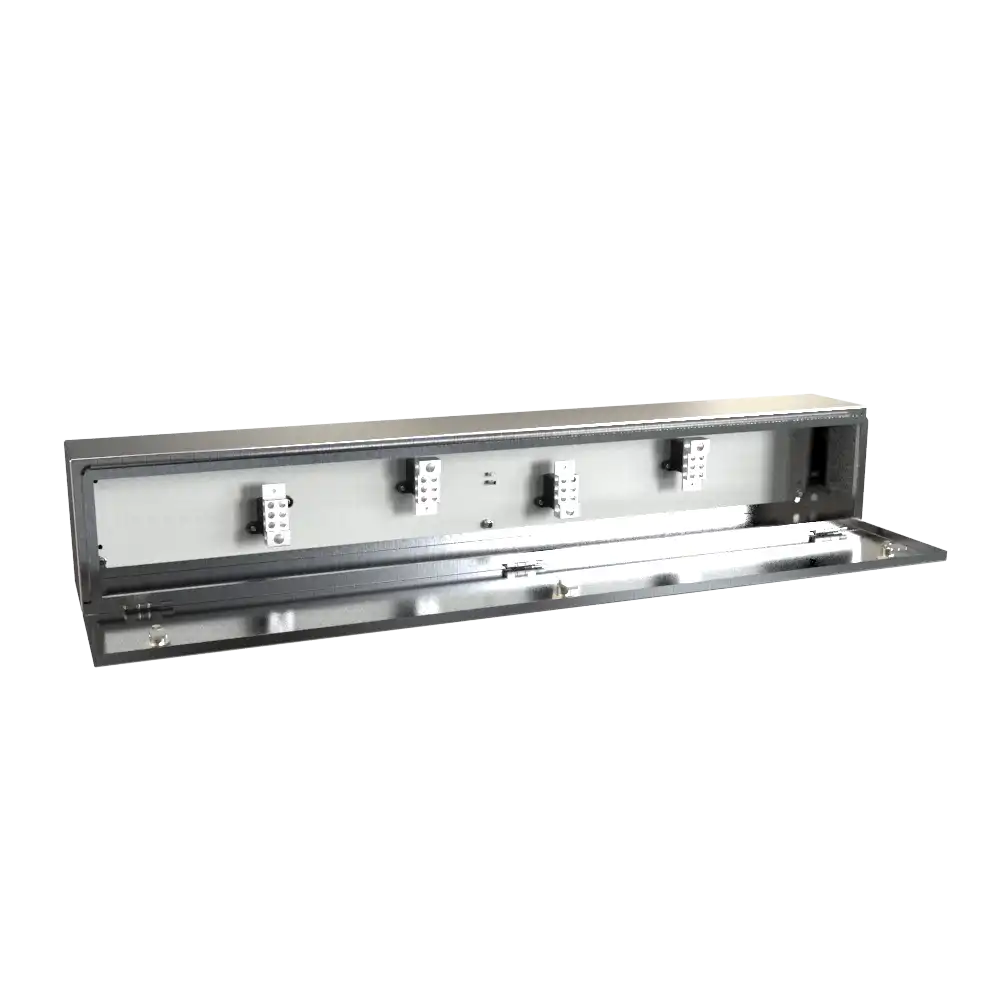

CN4STSS Series - Hammond Manufacturing Electrical Enclosures at KGA Enclosures Ltd - Click for a larger image
Hammond Manufacturing Product Ranges
Did you know, the entire Hammond Manufacturing product range is all available here at KGA Enclosures Ltd. If you find a lower price, we aim to match and beat it. For more information on any range, please click the link below.
Product Customisation Options
What makes KGA Enclosures Ltd different from most other larger distributors is that we offer full customisation services on all enclosures and accessories. All customisation work is undertaken by the relevant supplier, (some smaller projects are done by utilizing outside contractors) at their own manufacturing facilities. These services include milling or punching holes and slots into the enclosure or end plates for cables, connectors, switches, etc. Printing and silk screening services allow for the addition of text, logos and graphics onto both the enclosure and end plates, to allow the end user to easily identify the product and also to give the final product a more elegant finish. Contact us today to see how we can assist you.
Share This Product Range:
Share Product Range on Facebook Share Product Range on Twitter Share Product Range on LinkedIn

The CN4STSS Series from Hammond Manufacturing Electrical Enclosures are available at KGA Enclosures, a trusted and authorised distributor for Hammond Manufacturing Electrical Enclosures.

Product Options
Part No Brand Product Information 1+ 10+ 25+ 50+ More....
3 Wire
CN4ST2103SS Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
CN4ST2203SS Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
CN4ST273SS Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
CN4ST3103SS Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
CN4ST3203SS Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
CN4ST3403SS Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
CN4ST373SS Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
CN4ST4103SS Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
CN4ST4203SS Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
CN4ST4403SS Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
CN4ST4603SS Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
CN4ST473SS Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
CN4ST5203SS Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
CN4ST5403SS Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
CN4ST5603SS Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
CN4ST6103SS Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
CN4ST6203SS Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
CN4ST6403SS Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
CN4ST6603SS Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
4 Wire
CN4ST2104SS Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
CN4ST274SS Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
CN4ST3104SS Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
CN4ST3204SS Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
CN4ST374SS Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
CN4ST4104SS Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
CN4ST4204SS Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
CN4ST4404SS Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
CN4ST4604SS Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
CN4ST474SS Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
CN4ST5204SS Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
CN4ST5404SS Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
CN4ST5604SS Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
CN4ST6104SS Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
CN4ST6204SS Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
CN4ST6404SS Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
CN4ST6604SS Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
Contact us for pricing and stock confirmation.
Please use the Product Data Sheet for product accessory compatibility.
Product Accessories
Grounding Kit
Part No Brand Product Information 1+ 10+ 25+ 50+ More....
CGK225 Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
CGK400 Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
CGK600 Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
Contact us for pricing and stock confirmation.
Splitter Block
Part No Brand Product Information 1+ 10+ 25+ 50+ More....
CSBL125T Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
CSBL225 Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
CSBL400 Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
CSBL600 Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
Contact us for pricing and stock confirmation.
