KGA Enclosures Ltd | Hammond Manufacturing | CSKO Series | CE - Junction Boxes

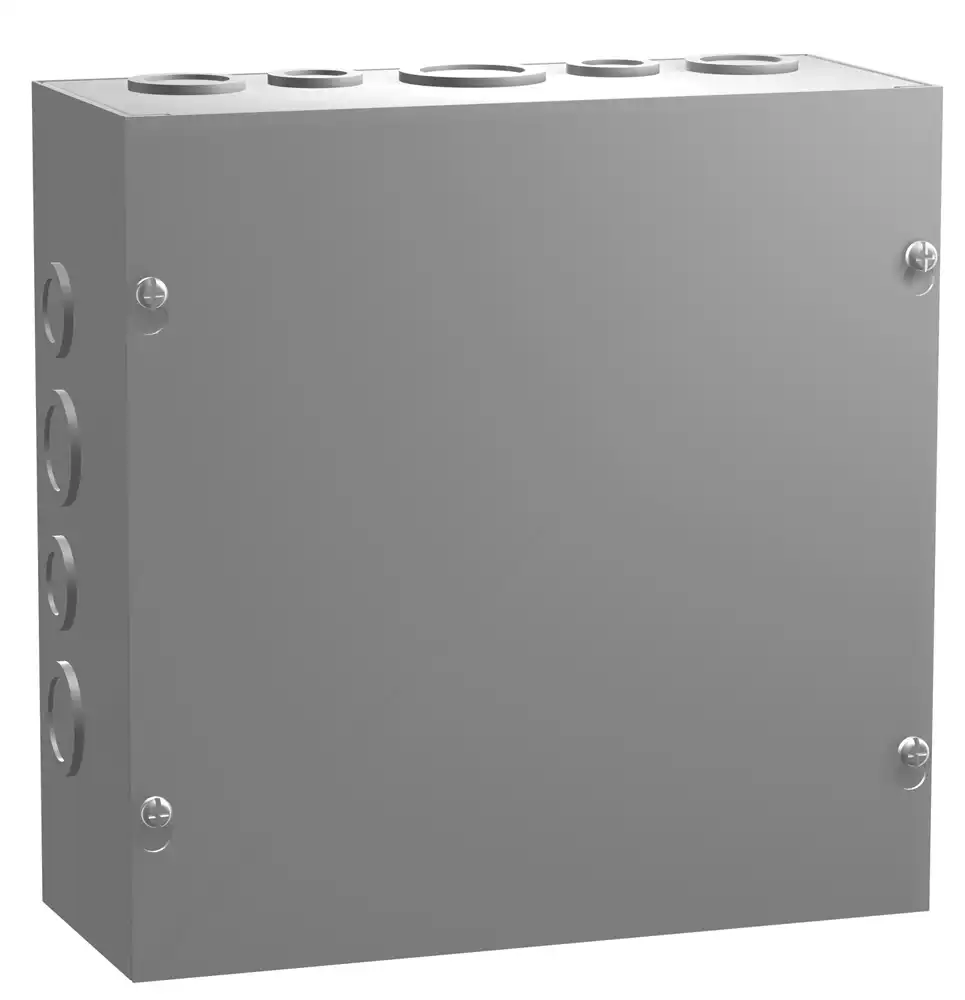

CSKO Series - Type 1 Mild Steel Junction Box
Screw Cover and With Knockouts
Product Application
- Designed for general purpose indoor commercial use as a junction, pull, or switch box.
Product Construction
- Formed and spot welded from 16 gauge (up to 30" x 24") or 14 gauge (36" x 24") steel.
- Flat steel covers fastened with plated steel screws.
- Keyhole slots permit cover to be lifted off without removing screws entirely.
- Easily removed knockouts on all 4 sides (see drawings for sizes and locations).
- Through holes in back for wall mounting.
- Grounding location embossed in body.
Product Finish
- Enclosure and cover are finished in ANSI 61 grey powder coating.
Product Standards
- UL-50 Type 1.
- CSA Type 1.
- Complies with:
- NEMA Type 12.
- IEC 60529, IP20.
Hammond Manufacturing Electrical Enclosures
KGA Enclosures Ltd are full authorised distributors of the Hammond Manufacturing Electrical Enclosures product range. This entire range is available from KGA Enclosures Ltd at great competitive pricing and with full customisation options on all applicable products.
Please Remember - Only use authorised distributors to purchase these products. Using authorised distributors will guarantee you receiving a genuine product which, by using KGA Enclosures, we can guarantee you receiving.
Please Remember - Only use authorised distributors to purchase these products. Using authorised distributors will guarantee you receiving a genuine product which, by using KGA Enclosures, we can guarantee you receiving.
For more information or to purchase / buy any product or for pricing and stock confirmation, please call (+44) 01535 636856, or email sales@kgaenclosures.com. Please include the following where applicable:
- Company / Contact name.
- Full delivery address.
- Contact telephone number.
- E-Mail address.
- Confirmation of part numbers and quantities required.
We aim to answer all E-Mail inquiries as quickly as possible.
Payment Options
KGA Enclosures Ltd accepts the following payment methods:
- Bank Transfer (BACS)
- Credit / Debit Card Payments
- PayPal Payments
- Cheques
Payment terms are available for all customers, which can be negotiated, contact us for more information.
Hammond Manufacturing Product Ranges
Did you know, the entire Hammond Manufacturing product range is all available here at KGA Enclosures Ltd. If you find a lower price, we aim to match and beat it. For more information on any range, please click the link below.
- View - Hammond Enclosures Range
- View - Hammond Electrical Enclosures Range
- View - Hammond Power Distribution Range
- View - Hammond Rack Systems Range
- View - Hammond Transformers Range
- View - Ritec Plastic Enclosures Range
Product Customisation Options
What makes KGA Enclosures Ltd different from most other larger distributors is that we offer full customisation services on all enclosures and accessories. All customisation work is undertaken by the relevant supplier, (some smaller projects are done by utilizing outside contractors) at their own manufacturing facilities. These services include milling or punching holes and slots into the enclosure or end plates for cables, connectors, switches, etc. Printing and silk screening services allow for the addition of text, logos and graphics onto both the enclosure and end plates, to allow the end user to easily identify the product and also to give the final product a more elegant finish. Contact us today to see how we can assist you.
Share This Product Range:
The CSKO Series from Hammond Manufacturing Electrical Enclosures are available at KGA Enclosures, a trusted and authorised distributor for Hammond Manufacturing Electrical Enclosures.
| Product Options |
| Part No | Brand | Product Information | 1+ | 10+ | 25+ | 50+ | More.... |
|---|---|---|---|---|---|---|---|
| CSKO10104 | Hammond | Please click link for more information | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More.... |
| CSKO10106 | Hammond | Please click link for more information | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More.... |
| CSKO1084 | Hammond | Please click link for more information | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More.... |
| CSKO1086 | Hammond | Please click link for more information | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More.... |
| CSKO12104 | Hammond | Please click link for more information | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More.... |
| CSKO12106 | Hammond | Please click link for more information | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More.... |
| CSKO12124 | Hammond | Please click link for more information | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More.... |
| CSKO12126 | Hammond | Please click link for more information | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More.... |
| CSKO12128 | Hammond | Please click link for more information | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More.... |
| CSKO1284 | Hammond | Please click link for more information | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More.... |
| CSKO16124 | Hammond | Please click link for more information | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More.... |
| CSKO16126 | Hammond | Please click link for more information | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More.... |
| CSKO16143 | Hammond | Please click link for more information | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More.... |
| CSKO16166 | Hammond | Please click link for more information | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More.... |
| CSKO16168 | Hammond | Please click link for more information | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More.... |
| CSKO18124 | Hammond | Please click link for more information | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More.... |
| CSKO18126 | Hammond | Please click link for more information | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More.... |
| CSKO18143 | Hammond | Please click link for more information | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More.... |
| CSKO18184 | Hammond | Please click link for more information | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More.... |
| CSKO18186 | Hammond | Please click link for more information | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More.... |
| CSKO20143 | Hammond | Please click link for more information | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More.... |
| CSKO202010 | Hammond | Please click link for more information | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More.... |
| CSKO24186 | Hammond | Please click link for more information | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More.... |
| CSKO242410 | Hammond | Please click link for more information | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More.... |
| CSKO24244 | Hammond | Please click link for more information | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More.... |
| CSKO24246 | Hammond | Please click link for more information | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More.... |
| CSKO24248 | Hammond | Please click link for more information | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More.... |
| CSKO302010 | Hammond | Please click link for more information | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More.... |
| CSKO30246 | Hammond | Please click link for more information | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More.... |
| CSKO362410 | Hammond | Please click link for more information | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More.... |
| CSKO36246 | Hammond | Please click link for more information | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More.... |
| CSKO443 | Hammond | Please click link for more information | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More.... |
| CSKO444 | Hammond | Please click link for more information | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More.... |
| CSKO644 | Hammond | Please click link for more information | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More.... |
| CSKO663 | Hammond | Please click link for more information | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More.... |
| CSKO664 | Hammond | Please click link for more information | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More.... |
| CSKO666 | Hammond | Please click link for more information | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More.... |
| CSKO863 | Hammond | Please click link for more information | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More.... |
| CSKO864 | Hammond | Please click link for more information | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More.... |
| CSKO884 | Hammond | Please click link for more information | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More.... |
| CSKO886 | Hammond | Please click link for more information | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More.... |
| Contact us for pricing and stock confirmation. |
|---|
Modified Electronic Enclosures
Almost every enclosure will need some kind of modification to be useful. In house modifications can be tedious, over complicated and a distraction from your main core business. A third party shop can add time and expense. Let us help you to delivery quality products made to your exact specifications.
Why Choose Hammond Manufacturing To Modify Your Enclosures
- Hammond Manufacturing offers a wide selection and massive inventory of enclosures ready to be modified.
- Typically the minimum order quantity is 25 pieces, this can vary depending on product and service required. Please note KGA Enclosures does not add on any extra charges.
- Hammond has an experienced enclosure modification team and two dedicated modification facilities in North America and the United Kingdom. They are knowledgeable, available and capable.
- Hammond helps eliminate scrap and design errors with approval drawings to confirm correct interpretation of your design required. Many orders will also include a fast delivery of a sample enclosure for your inspection. These steps ensure that your assembly fits perfectly before heading into the mass production stage.
Popular Modification Services Offered
- Holes.
- Cutouts.
- Tapping and countersink.
- Pressed-in hardware (Studs, Standoffs).
- Silk screening.
- UV Printing.
- Special colours.
- Special extrusion lengths.
- Pre-Installed accessories.
- Available services vary by product.
