C3RESCNKAL Series - Hammond Manufacturing Electrical Enclosures - KGA Enclosures Ltd

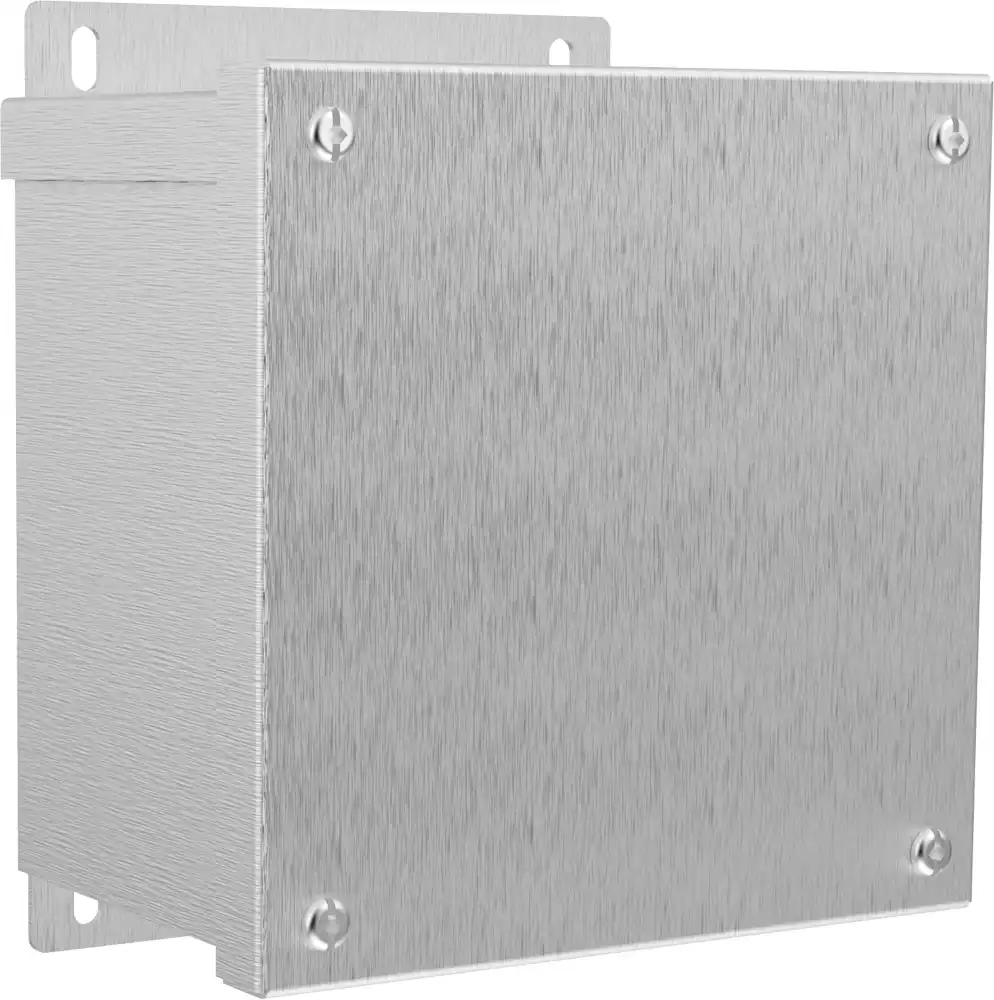

C3RESCNKAL Series | Type 3R Aluminium Junction Box
Screw Cover and without Knockouts
Product Application
- Designed for use as a wiring/junction box.
- Provides protection against rain, sleet, snow and dripping water.
Product Construction
- Formed from 0.08" type 5052 H-32 aluminium.
- Drip-shield top and seam-free sides, front and back.
- Slip-on removable cover fastened with plated steel screws.
- External mounting feet.
- Oil resistant gaskets are permanently secured.
- A bonding stud is provided on the door and a grounding stud is provided in the box.
Product Finish
- Enclosure and cover are finished in natural unfinished aluminium.
Product Standards
- UL 50 type 3R.
- CSA type 3R.
- Complies with:
- NEMA type 3R.
- IEC 60529 and IP24.
Hammond Manufacturing Electrical Enclosures
KGA Enclosures Ltd are fully authorised distributors of the Hammond Manufacturing Electrical Enclosures product range. This entire range is available from KGA Enclosures Ltd at great competitive pricing and with full customisation options on all applicable products.
Please remember - KGA Enclosures Ltd are authorised distributors of this product range. Please only use authorised distributors to purchase these products. This will then ensure you receive a genuine product.
Please remember - KGA Enclosures Ltd are authorised distributors of this product range. Please only use authorised distributors to purchase these products. This will then ensure you receive a genuine product.
Hammond Manufacturing Product Ranges
Did you know, you can find the entire Hammond Manufacturing product range, here at KGA Enclosures Ltd.
- View the Hammond Electrical Enclosures Range.
- View the Hammond Enclosures Range.
- View the Hammond Power Distribution Range.
- View the Hammond Rack Solutions Range.
- View the Hammond Transformers Range.
- View the Ritec Plastic Enclosures Range.
Share This Product Range |
|---|
   |
C3RESCNKAL Series | Hammond Manufacturing Electrical Enclosures | KGA Enclosures Ltd
| Part No | Brand | Product Information | 1+ | 5+ | 10+ | 25+ |
|---|---|---|---|---|---|---|
| C3R10104ESCNKAL | Hammond | Click part number for more details | P.O.A. | P.O.A. | P.O.A. | P.O.A. |
| C3R10106ESCNKAL | Hammond | Click part number for more details | P.O.A. | P.O.A. | P.O.A. | P.O.A. |
| C3R12124ESCNKAL | Hammond | Click part number for more details | P.O.A. | P.O.A. | P.O.A. | P.O.A. |
| C3R12126ESCNKAL | Hammond | Click part number for more details | P.O.A. | P.O.A. | P.O.A. | P.O.A. |
| C3R664ESCNKAL | Hammond | Click part number for more details | P.O.A. | P.O.A. | P.O.A. | P.O.A. |
| C3R884ESCNKAL | Hammond | Click part number for more details | P.O.A. | P.O.A. | P.O.A. | P.O.A. |
| C3R886ESCNKAL | Hammond | Click part number for more details | P.O.A. | P.O.A. | P.O.A. | P.O.A. |
| For product compatibility and more information, please see the product data sheet. |
|---|
