DPF Series - Datawing Filter Fans
Type 12
Product Information
Contact Us
Purchase / Buy Products
Customisation Services

Product Features
  • Maintains a UL Tested NEMA Type 12 seal against enclosure.
  • Externally mounted for space restricted installations such as control panels and IT equipment racks.
  • 30 degree slope top housing to avoid dust collection.
  • IEC power connector 6 foot long cable - NEMA 5-15P (115V) and IEC C14 (230V).
  • Thermostat with 13 foot long cable allows for placement near heat sensitive locations.
  • Maintenance LED indication light shows filter status.
  • Plastic components made from strong, heat resistant (ABS-FR), UL94-V0 fire approved material.
  • Fluted filter-mat provides longer service life, holding more dust before impeding airflow extending the mean time between maintenance: especially critical for those located in less accessible areas.

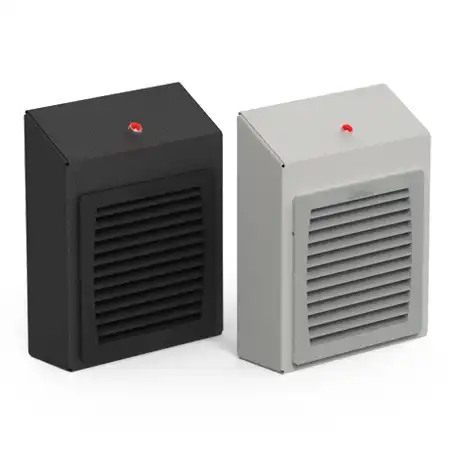

  • Metal housing offered in white (RAL 9003) and black (RAL 9004) with complementary plastic fan grill.
  • Note: Datawind fan packages pressurize cabinets (push air in) so an exhaust location is needed as a path for heat to escape the cabinet.
Hammond Manufacturing Electrical Enclosures
KGA Enclosures Ltd are full authorised distributors of the Hammond Manufacturing Electrical Enclosures product range. This entire range is available from KGA Enclosures Ltd at great competitive pricing and with full customisation options on all applicable products.

Please Remember - Only use authorised distributors to purchase these products. Using authorised distributors will guarantee you receiving a genuine product which, by using KGA Enclosures, we can guarantee you receiving.
Hammond Manufacturing Product Ranges
Did you know, the entire Hammond Manufacturing product range is all available here at KGA Enclosures Ltd. If you find a lower price, we aim to match and beat it. For more information on any range, please click the link below.
DPF Series | Hammond Manufacturing Electrical Enclosures | KGA Enclosures Ltd
Product Data Sheet
Return To Product Range
Product Options
Part No Brand Product Information 1+ 10+ 25+ 50+
RAL 9004 - Black
DPF22000A115BK Hammond Please Click Part Number For More Details P.O.A. P.O.A. P.O.A. P.O.A.
DPF22000A230BK Hammond Please Click Part Number For More Details P.O.A. P.O.A. P.O.A. P.O.A.
DPF33000A115BK Hammond Please Click Part Number For More Details P.O.A. P.O.A. P.O.A. P.O.A.
DPF33000A230BK Hammond Please Click Part Number For More Details P.O.A. P.O.A. P.O.A. P.O.A.
DPF67000A115BK Hammond Please Click Part Number For More Details P.O.A. P.O.A. P.O.A. P.O.A.
DPF67000A230BK Hammond Please Click Part Number For More Details P.O.A. P.O.A. P.O.A. P.O.A.
RAL 9003 - White
DPF22000A115WH Hammond Please Click Part Number For More Details P.O.A. P.O.A. P.O.A. P.O.A.
DPF22000A230WH Hammond Please Click Part Number For More Details P.O.A. P.O.A. P.O.A. P.O.A.
DPF33000A115WH Hammond Please Click Part Number For More Details P.O.A. P.O.A. P.O.A. P.O.A.
DPF33000A230WH Hammond Please Click Part Number For More Details P.O.A. P.O.A. P.O.A. P.O.A.
DPF67000A115WH Hammond Please Click Part Number For More Details P.O.A. P.O.A. P.O.A. P.O.A.
DPF67000A230WH Hammond Please Click Part Number For More Details P.O.A. P.O.A. P.O.A. P.O.A.
Contact Us For Lead Times and Pricing Confirmation
Product Accessories
Exhaust Filters
Part No Brand Product Information 1+ 10+ 25+ 50+
RAL 9011 - Black
PFA20000BK Hammond Please Click Part Number For More Details P.O.A. P.O.A. P.O.A. P.O.A.
PFA30000BK Hammond Please Click Part Number For More Details P.O.A. P.O.A. P.O.A. P.O.A.
PFA60000BK Hammond Please Click Part Number For More Details P.O.A. P.O.A. P.O.A. P.O.A.
RAL 7035 - Light Grey
PFA20000LG Hammond Please Click Part Number For More Details P.O.A. P.O.A. P.O.A. P.O.A.
PFA30000LG Hammond Please Click Part Number For More Details P.O.A. P.O.A. P.O.A. P.O.A.
PFA60000LG Hammond Please Click Part Number For More Details P.O.A. P.O.A. P.O.A. P.O.A.
Contact Us For Lead Times and Pricing Confirmation
