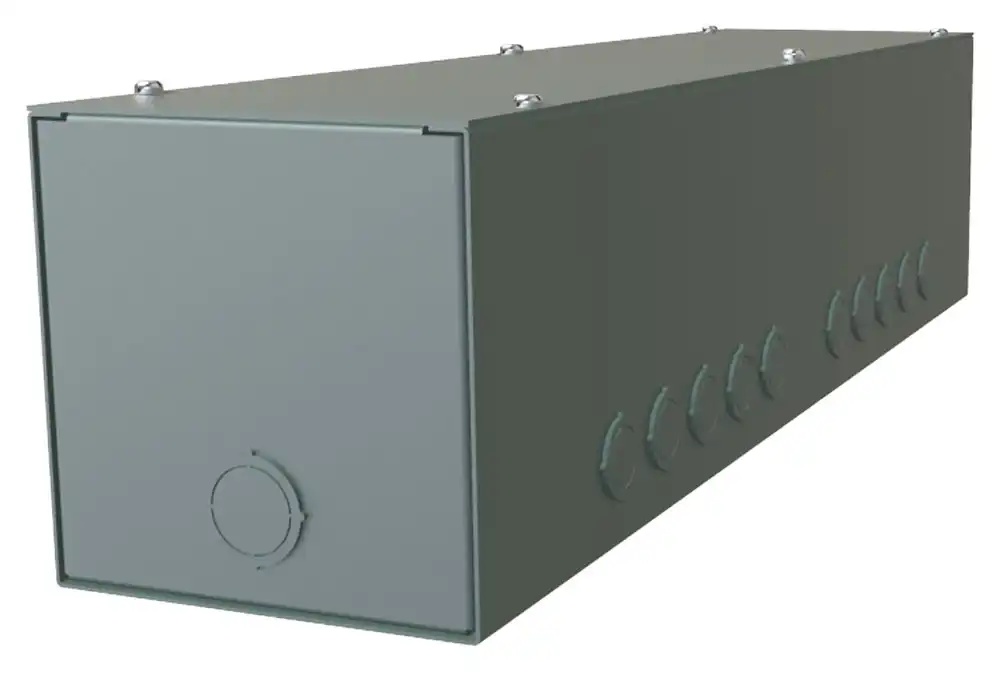

CGT Series Type 1 Gutter Trough
Product Application
  • Designed for use as a junction or pull box.
Product Construction
  • Formed and spot welded from 16 gauge steel.
  • Mounting holes on back of enclosure.
  • Flat cover is secured with screws.
  • Two grounding point embosses on enclosure body.
Product Finish
  • Enclosure and cover are finished in ANSI 61 grey powder coating.
Product Standards
  • UL870 Type 1.
  • cUL Type 1.
  • Complies with:
    • NEMA Type 1
    • IEC 60529, IP20
Product Resources
Share This Product
Share Product Range on Facebook Share Product Range on Twitter Share Product Range on LinkedIn

Hammond Manufacturing Electrical Enclosures

KGA Enclosures Ltd are fully authorised distributors of the entire Hammond Manufacturing Electrical Enclosures product range. All Hammond manufacturing products are available from KGA Enclosures at great competitive prices. Or view the related product ranges from Hammond Manufacturing For more information on any product available from KGA Enclosures Ltd simply email sales@kgaenclosures.com or class 01535 636856 (Outside UK: +44 1535 636856).
CGT Series - Hammond Manufacturing Electrical Enclosures - KGA Enclosures Ltd
Product Options
Part No Colour Height Depth Length 1+ 10+ 25+ More
CGT1244 ANSI 61 Grey 102mm 102mm 305mm P.O.A. P.O.A. P.O.A. More....
CGT1266 ANSI 61 Grey 152mm 152mm 305mm P.O.A. P.O.A. P.O.A. More....
CGT1844 ANSI 61 Grey 102mm 102mm 457mm P.O.A. P.O.A. P.O.A. More....
CGT1866 ANSI 61 Grey 152mm 152mm 457mm P.O.A. P.O.A. P.O.A. More....
CGT2444 ANSI 61 Grey 102mm 102mm 610mm P.O.A. P.O.A. P.O.A. More....
CGT2466 ANSI 61 Grey 152mm 152mm 610mm P.O.A. P.O.A. P.O.A. More....
CGT3644 ANSI 61 Grey 102mm 102mm 914mm P.O.A. P.O.A. P.O.A. More....
CGT3666 ANSI 61 Grey 152mm 152mm 914mm P.O.A. P.O.A. P.O.A. More....
CGT4844 ANSI 61 Grey 102mm 102mm 1219mm P.O.A. P.O.A. P.O.A. More....
CGT4866 ANSI 61 Grey 152mm 152mm 1219mm P.O.A. P.O.A. P.O.A. More....
Please visit individual product page for more detailed information
Hammond Manufacturing - Customisation Services
Modified Electronic Enclosures
Almost every enclosure will need some kind of modification to be useful. In house modifications can be tedious, over complicated and a distraction from your main core business. A third party shop can add time and expense. Let us help you to deliver quality products made to your exact specifications.
Hammond Manufacturing Customisation Services
Why choose Hammond Manufacturing to modify your enclosure
  • Hammond Manufacturing offers a wide selection and massive inventory of enclosures ready to be modified.
  • Typically the minimum order quantity is 25 pieces. This can vary depending on product and service required. Please note KGA Enclosures does not add on any charges.
  • Hammond has an experience enclosure modification team and two dedicated modification facilities in North America and the United Kingdom. They are knowledgeable, available and capable.
  • Hammond Manufacturing helps eliminate scrap and design errors with approval drawings to confirm correct interpretation of your deign required. Many orders will also include a fast delivery of sample enclosures for your inspection. These steps ensure that your assembly fits perfectly before heading into the mass production stage.
Popular modification services offered:
  • Holes
  • Cutouts
  • Tapping and countersinking.
  • Pressed-in hardware (Studs, Standoffs)
  • Silk screening
  • UV Printing
  • Special colours
  • Special length extrusions
  • Pre-Installed accessories
  • Available services vary by product
