Hammond Manufacturing Electrical Enclosures | Stainless Steel - Wallmount Enclosures | Eclipse White Range

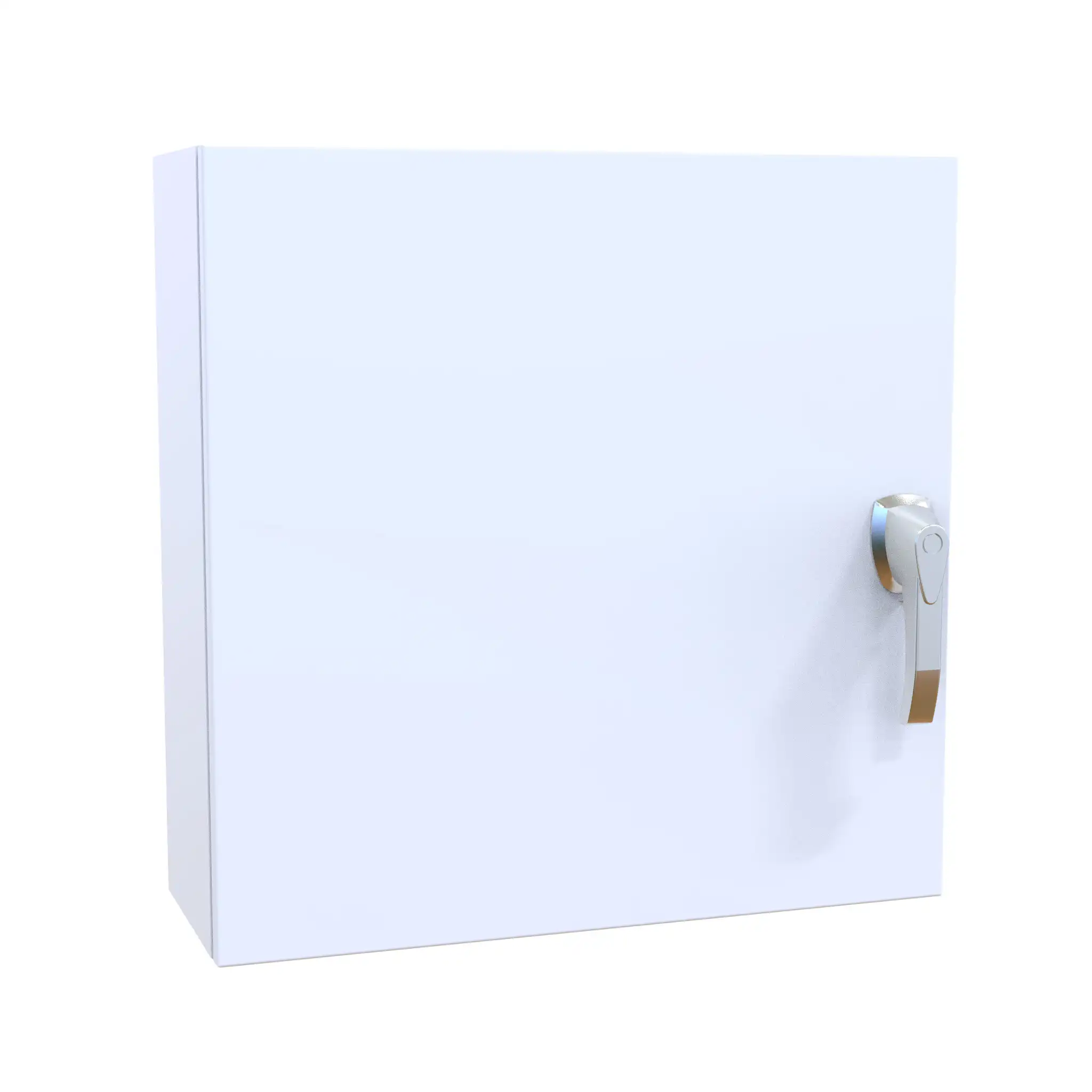

Eclipse White Series Type 4X Painted White Stainless Steel Wallmount Enclosures
Hinge Door With Handle
Product Application:
  • Designed for enclose electrical and/or electronic equipment and protect against harsh, industrial environments for wallmount applications.
  • Impressive styling features like hidden hinges and attractive latching systems make the Eclipse a suitable addition to any high-tech equipment installation.
  • A wide range of sizes and practical accessories make this product line a complete package.
Product Construction:
  • Formed 14 gauge 304 stainless steel.
  • Continuously welded seams ground smooth.
  • Door stiffeners are provided where required for increased strength and rigidity - designed to also permit additional mounting options.
  • Formed lip on enclosure to exclude flowing liquids and contaminants.
  • Doors are secured with a 3 point Handle in 316 stainless with pad lockable feature.
  • Doors may be easily removed for modifications and are interchangeable.
  • Seamless poured-in place gasket.
  • Collar studs provided for mounting inner panel.
  • Includes hardware kit with panel mounting nuts and sealing washers for wall mounting holes.
  • Bonding stud provided on door and grounding stud installed in enclosure.
  • Stainless steel hinge pins and hinges.
Product Finish:
  • Cover and enclosure are finished in recoatable smooth RAL 9003 white powder coating inside and out.
Product Standards:
  • UL 508A Type 3R, 4, 4X and 12.
  • CSA Type 3R, 4, 4X and 12.
  • Complies with:
    • NEMA 3R, 4, 4X, 12 and 13
    • IEC 60529, IP66
Product Resources:
Share This Product
Share Product Range on Facebook Share Product Range on Twitter Share Product Range on LinkedIn

Hammond Manufacturing Electrical Enclosures
KGA Enclosures Ltd are full authorised distributors of the Hammond Manufacturing Electrical Enclosures product range. This entire range is available from KGA Enclosures Ltd at great competitive pricing and with full customisation options on all applicable products.

To purchase any product or for more information on any product offered, simply call (+44) 01535 636856 or E-Mail: sales@kgaenclosures.com, where we will be happy to assist you. Or view the related product ranges from Hammond Manufacturing, which are all available from KGA Enclosures Ltd. Including the:
What makes KGA Enclosures Ltd different from most other larger distributors is that we offer full customisation services on all enclosure and accessories (where applicable). All customisation work is undertaken by the relevant supplier, (some small projects are done utilizing outside contractors) at their own manufacturing facilities. These services include milling or punching of holes and slots into the enclosure or end plates for cables, connectors, switches etc. Printing and silk screening services allow for the addition of text, logos and graphics onto both the enclosure and end plates, to allow the end user to easily identify the product as well as giving the final product a more elegant finish. For more information on customisation services, please contact us.
Eclipse White Series - Hammond Manufacturing Electrical Enclosures at KGA Enclosures Ltd
Product Options
Part No Product Information 1+ 10+ 25+ More
EN4SD242010SSWH Please Click Product Link For more Information P.O.A. P.O.A. P.O.A. More....
EN4SD242412SSWH Please Click Product Link For more Information P.O.A. P.O.A. P.O.A. More....
EN4SD24248SSWH Please Click Product Link For more Information P.O.A. P.O.A. P.O.A. More....
EN4SD30248SSWH Please Click Product Link For more Information P.O.A. P.O.A. P.O.A. More....
EN4SD363012SSWH Please Click Product Link For more Information P.O.A. P.O.A. P.O.A. More....
EN4SD363612SSWH Please Click Product Link For more Information P.O.A. P.O.A. P.O.A. More....
EN4SD423612SSWH Please Click Product Link For more Information P.O.A. P.O.A. P.O.A. More....
EN4SD483612SSWH Please Click Product Link For more Information P.O.A. P.O.A. P.O.A. More....
EN4SD483616SSWH Please Click Product Link For more Information P.O.A. P.O.A. P.O.A. More....
EN4SD603612SSWH Please Click Product Link For more Information P.O.A. P.O.A. P.O.A. More....
For pricing and availability please contact us
Hammond Manufacturing - Customisation Services
Modified Electronic Enclosures
Almost every enclosure will need some kind of modification to be useful. In house modifications can be tedious, over complicated and a distraction from your main core business. A third party shop can add time and expense. Let us help you to deliver quality products made to your exact specifications.
Hammond Manufacturing Customisation Services
Why choose Hammond Manufacturing to modify your enclosure
  • Hammond Manufacturing offers a wide selection and massive inventory of enclosures ready to be modified.
  • Typically the minimum order quantity is 25 pieces. This can vary depending on product and service required. Please note KGA Enclosures does not add on any charges.
  • Hammond has an experience enclosure modification team and two dedicated modification facilities in North America and the United Kingdom. They are knowledgeable, available and capable.
  • Hammond Manufacturing helps eliminate scrap and design errors with approval drawings to confirm correct interpretation of your deign required. Many orders will also include a fast delivery of sample enclosures for your inspection. These steps ensure that your assembly fits perfectly before heading into the mass production stage.
Popular modification services offered:
  • Holes
  • Cutouts
  • Tapping and countersinking.
  • Pressed-in hardware (Studs, Standoffs)
  • Silk screening
  • UV Printing
  • Special colours
  • Special length extrusions
  • Pre-Installed accessories
  • Available services vary by product
