Sloped Front, Continuous Hinged Cover

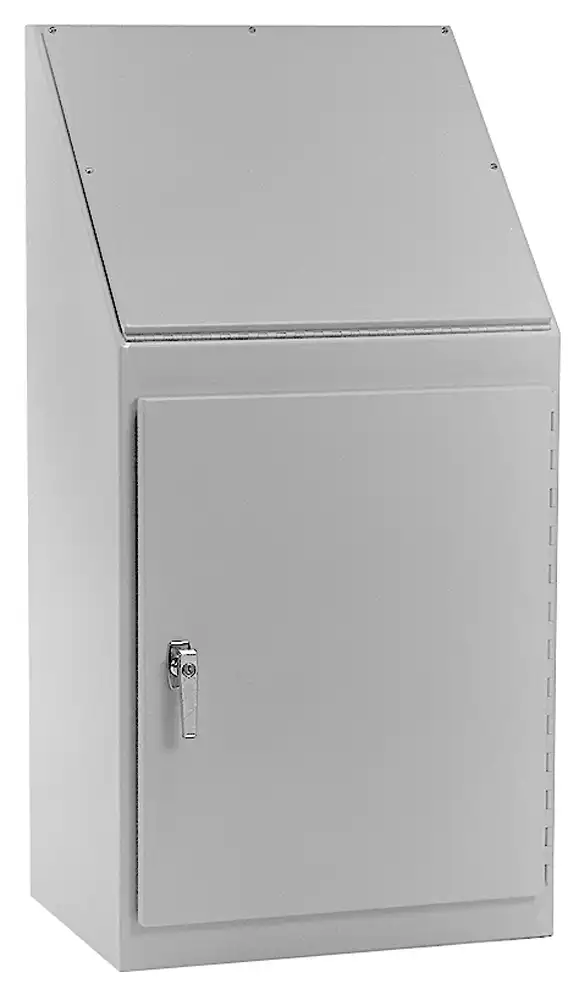

1471 Series Type 12 Console Cabinet

Product Application
Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments. Heavy-duty construction provides protection from dirt, dust, oil and water. Sloping front control panel provides an ideal surface for mounting operator controls or instrumentation. Interior mounting provision on removable inner panels located on the rear and sides of the enclosure.

Product Construction
Formed 14 gauge steel. Smooth, continuously welded seams, without knockouts, cutouts or holes. Sloped front instrument panel is continuously hinged on the front (bottom) edge and secured with captive panel screws, threaded into sealed wells. Continuously hinged door and front instrument panel may be removed by pulling the hinge pin. Doors are secured with a three point latch and operated with a key locking automotive type handle. Oil resistant gaskets are permanently secured. Includes three removable inner panels formed from 12 gauge steel, mounted to the back and sides of the enclosure interior. Collar studs are provided for mounting inner panels. A bonding stud is provided on the door and a grounding stud is provided in the enclosure for each door. A literature pocket is provided for the inside of the door.

Product Construction

Formed 14 gauge steel.
Smooth, continuously welded seams, without knockouts, cutouts or holes.
Sloped front instrument panel is continuously hinged on the front (bottom) edge and secured with captive panel screws, threaded into sealed wells.
Continuously hinged door and front instrument panel may be removed by pulling the hinge pin.
Doors are secured with a three point latch and operated with a key locking automotive type handle.
Oil resistant gaskets are permanently secured.
Includes three removable inner panels formed from 12 gauge steel, mounted to the back and sides of the enclosure interior.
Collar studs are provided for mounting inner panels.
A bonding stud is provided on the door and a grounding stud is provided in the enclosure for each door.
A literature pocket is provided for the inside of the door.

Product Finish
Cover and enclosure are phosphatized and finished in ANSI 61 grey powder coating on the outside and on the inside. Removable inner panels are finished in white powder coating.

Product Standards
UL 508A Type 12. CSA Type 12. Complies with: NEMA Type 12 IEC 60529, IP54

Product Resources
View Product Data Sheet View Enclosure Customisation Options

Share On Social Media

Product Options

Part No	Colour	Height	Width	Depth	1+	10+	25+	More
1471C24	ANSI 61 Grey	813mm / 1219mm	610mm	457mm	P.O.A.	P.O.A.	P.O.A.	More....
1471C36	ANSI 61 Grey	813mm / 1219mm	914mm	457mm	P.O.A.	P.O.A.	P.O.A.	More....
Please visit individual product page for more detailed information

Hammond Manufacturing - Customisation Services

Modified Electronic Enclosures
Almost every enclosure will need some kind of modification to be useful. In house modifications can be tedious, over complicated and a distraction from your main core business. A third party shop can add time and expense. Let us help you to deliver quality products made to your exact specifications.

Why choose Hammond Manufacturing to modify your enclosure
Hammond Manufacturing offers a wide selection and massive inventory of enclosures ready to be modified. Typically the minimum order quantity is 25 pieces. This can vary depending on product and service required. Please note KGA Enclosures does not add on any charges. Hammond has an experience enclosure modification team and two dedicated modification facilities in North America and the United Kingdom. They are knowledgeable, available and capable. Hammond Manufacturing helps eliminate scrap and design errors with approval drawings to confirm correct interpretation of your deign required. Many orders will also include a fast delivery of sample enclosures for your inspection. These steps ensure that your assembly fits perfectly before heading into the mass production stage.

Why choose Hammond Manufacturing to modify your enclosure

Hammond Manufacturing offers a wide selection and massive inventory of enclosures ready to be modified.
Typically the minimum order quantity is 25 pieces. This can vary depending on product and service required. Please note KGA Enclosures does not add on any charges.
Hammond has an experience enclosure modification team and two dedicated modification facilities in North America and the United Kingdom. They are knowledgeable, available and capable.
Hammond Manufacturing helps eliminate scrap and design errors with approval drawings to confirm correct interpretation of your deign required. Many orders will also include a fast delivery of sample enclosures for your inspection. These steps ensure that your assembly fits perfectly before heading into the mass production stage.

Popular modification services offered:
Holes Cutouts Tapping and countersinking. Pressed-in hardware (Studs, Standoffs) Silk screening UV Printing Special colours Special length extrusions Pre-Installed accessories Available services vary by product
