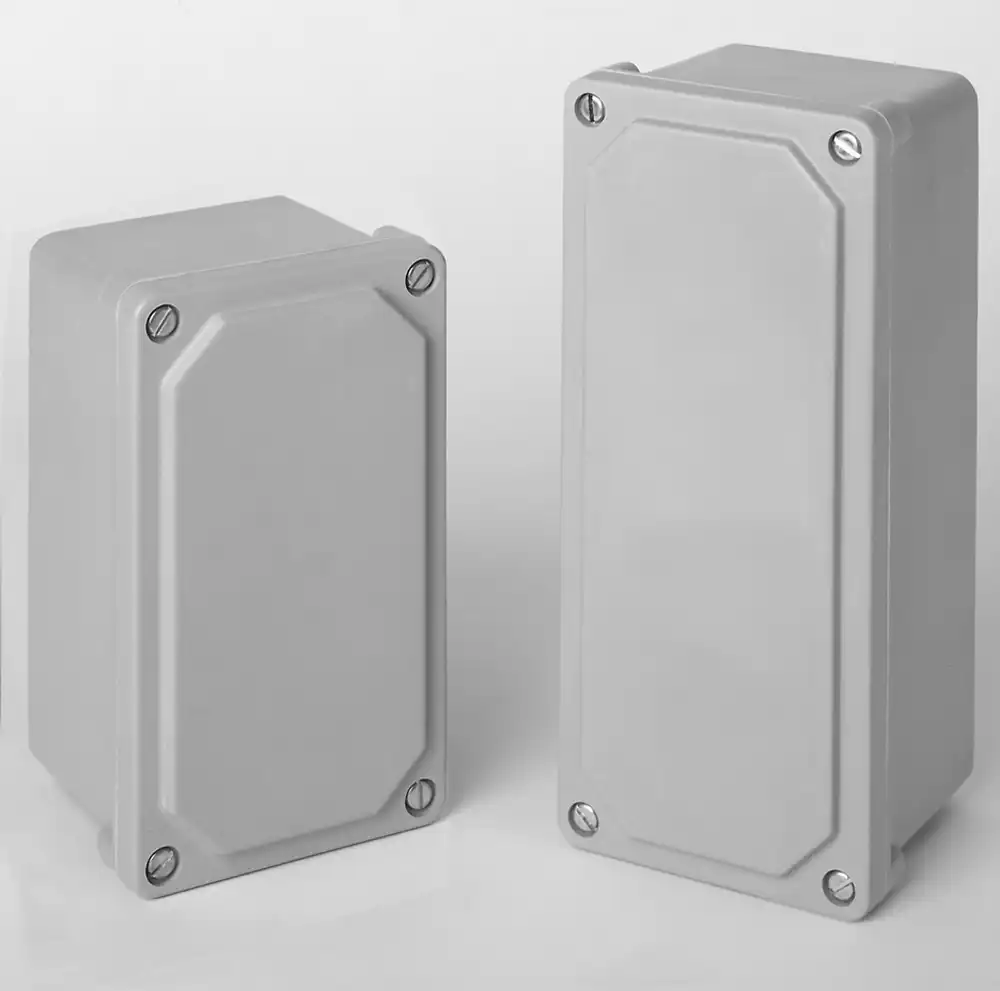

PJI Series Type 4, 4X Polyester Inline Enclosures

Product Application
Designed fro use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures. Provides outstanding insulation and protection where equipment may be hosed down or become very wet. Ideal in applications with high temperatures or highly corrosive environments.

Product Construction
Moulded fiberglass polyester enclosure with matching cover is easily punched, cut, or drilled. Threaded brass inserts are provided for optional inner panel. Cover is fastened with captive stainless steel screws in threaded brass inserts. Captive oil-resistant gasket provides a positive seal. Mounting through rear holes on enclosure. Use #8 x 1 inch screw (not included). Enhanced UV inhibitors protect against outdoor weathering. Available with and without mounting feet. Operating temperatures between 130°C and -40°C (266°F to -40°F). Impact index of 6.78J (5 ft / lb).

Product Construction

Moulded fiberglass polyester enclosure with matching cover is easily punched, cut, or drilled.
Threaded brass inserts are provided for optional inner panel.
Cover is fastened with captive stainless steel screws in threaded brass inserts.
Captive oil-resistant gasket provides a positive seal.
Mounting through rear holes on enclosure. Use #8 x 1 inch screw (not included).
Enhanced UV inhibitors protect against outdoor weathering.
Available with and without mounting feet.
Operating temperatures between 130°C and -40°C (266°F to -40°F).
Impact index of 6.78J (5 ft / lb).

Product Finish
Fiberglass polyester material has a grey finish. Optional aluminium inner panel natural finish.

Product Standards
UL 508A Type 1, 2, 3, 4, 4X, 12 and 13. CSA Type 1, 2, 3, 4, 4X, 12 and 13. Complies with: NEMA Type 1, 2, 3, 4, 4X, 12 and 13 IEC 60529, IP66

Product Resources
View Product Data Sheet View Enclosure Customisation Options

Share On Social Media

Product Options

Part No	Colour	Height	Width	Depth	1+	10+	25+	More
With Feet
PJ744	Grey	171mm	100mm	99mm	P.O.A.	P.O.A.	P.O.A.	More....
PJ944	Grey	228mm	100mm	99mm	P.O.A.	P.O.A.	P.O.A.	More....
Without Feet
PJ744FS	Grey	171mm	100mm	99mm	P.O.A.	P.O.A.	P.O.A.	More....
PJ944FS	Grey	228mm	100mm	99mm	P.O.A.	P.O.A.	P.O.A.	More....
Please visit individual product page for more detailed information

Product Accessories

Inner Panels

Part No	Product Information	1+	10+	25+	More
PJP74	Please Click Link For More Detailed Information	P.O.A.	P.O.A.	P.O.A.	More....
PJP94	Please Click Link For More Detailed Information	P.O.A.	P.O.A.	P.O.A.	More....
Please refer to the product data sheet for product compatibility

Hammond Manufacturing - Customisation Services

Modified Electronic Enclosures
Almost every enclosure will need some kind of modification to be useful. In house modifications can be tedious, over complicated and a distraction from your main core business. A third party shop can add time and expense. Let us help you to deliver quality products made to your exact specifications.

Why choose Hammond Manufacturing to modify your enclosure
Hammond Manufacturing offers a wide selection and massive inventory of enclosures ready to be modified. Typically the minimum order quantity is 25 pieces. This can vary depending on product and service required. Please note KGA Enclosures does not add on any charges. Hammond has an experience enclosure modification team and two dedicated modification facilities in North America and the United Kingdom. They are knowledgeable, available and capable. Hammond Manufacturing helps eliminate scrap and design errors with approval drawings to confirm correct interpretation of your deign required. Many orders will also include a fast delivery of sample enclosures for your inspection. These steps ensure that your assembly fits perfectly before heading into the mass production stage.

Why choose Hammond Manufacturing to modify your enclosure

Hammond Manufacturing offers a wide selection and massive inventory of enclosures ready to be modified.
Typically the minimum order quantity is 25 pieces. This can vary depending on product and service required. Please note KGA Enclosures does not add on any charges.
Hammond has an experience enclosure modification team and two dedicated modification facilities in North America and the United Kingdom. They are knowledgeable, available and capable.
Hammond Manufacturing helps eliminate scrap and design errors with approval drawings to confirm correct interpretation of your deign required. Many orders will also include a fast delivery of sample enclosures for your inspection. These steps ensure that your assembly fits perfectly before heading into the mass production stage.

Popular modification services offered:
Holes Cutouts Tapping and countersinking. Pressed-in hardware (Studs, Standoffs) Silk screening UV Printing Special colours Special length extrusions Pre-Installed accessories Available services vary by product
