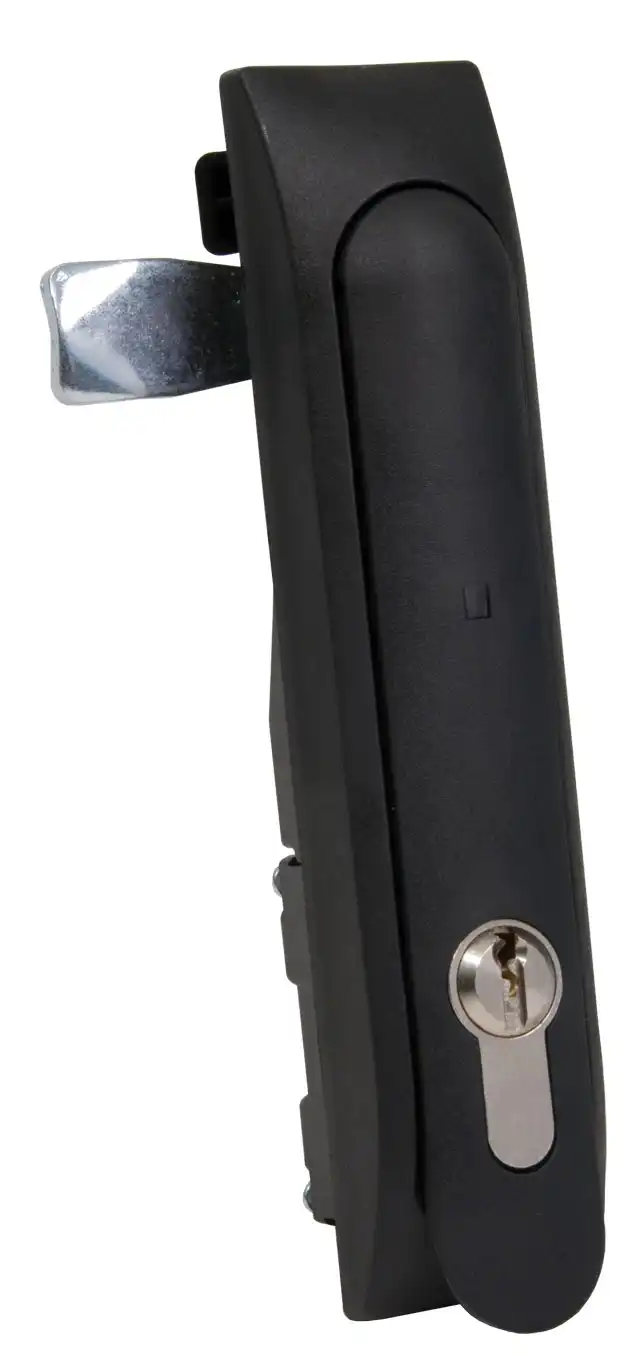

EL Series Electronic Locking Cabinet Handles
The electronic locking swing handle provides the functionality of a manual latching system with the added benefit of electronic locking for access control and remote monitoring. It can be combined with an access control device for a basic self contained electronic access solution.

Alternatively, the electronic swing handle can provide access control to networked rack control and monitoring systems for addressable remote access control over the internet. Integrated lock sensors provide local LED indication plus generate output signals for remote access monitoring.

Product Features
  • Remote lock and unlock.
  • Single or multi-point.
  • Low power, gear motor driven mechanism.
  • Momentary or continuous lock actuation.
  • High security DIN lock manual override.
  • Directly integrates with industry standard rack monitoring and access control systems.
  • Fits industry standard panel preparations.
  • Integrated sensors detect lock and handle status for network control, monitoring and alarm functions.
  • Accommodates both left and right doors.
  • Ships with three (3) keys.
Product Specifications
  • Housing, handle, mounting bracket constructed of black glass-filled nylon.
  • Shaft and rotation limiter constructed of die-cast zinc, bright sealer.
  • Electronic handle shall be RoHS EU directive 2002/95/EC compliant.
  • Recommended operating voltage: 12VDC to 24VDC.
  • Typical operating current: Less than 200mA at 12VDC.
  • Peak/Stall operating current: 1 Amp.
  • Standby current: 50mA Max.
  • Output signal rating: 200mA Max. load.
  • Stock compatibility with Hammond CL Series cabinets. For compatibility with other Hammond cabinets, please ask.
Product Cabinet Compatibility
  • CLC Series
  • DCZ4 Series
  • H1 Series
  • HDEM Series
