Hammond Manufacturing Electrical Enclosures | Commercial - Junction Boxes | C3R SC NKO Range

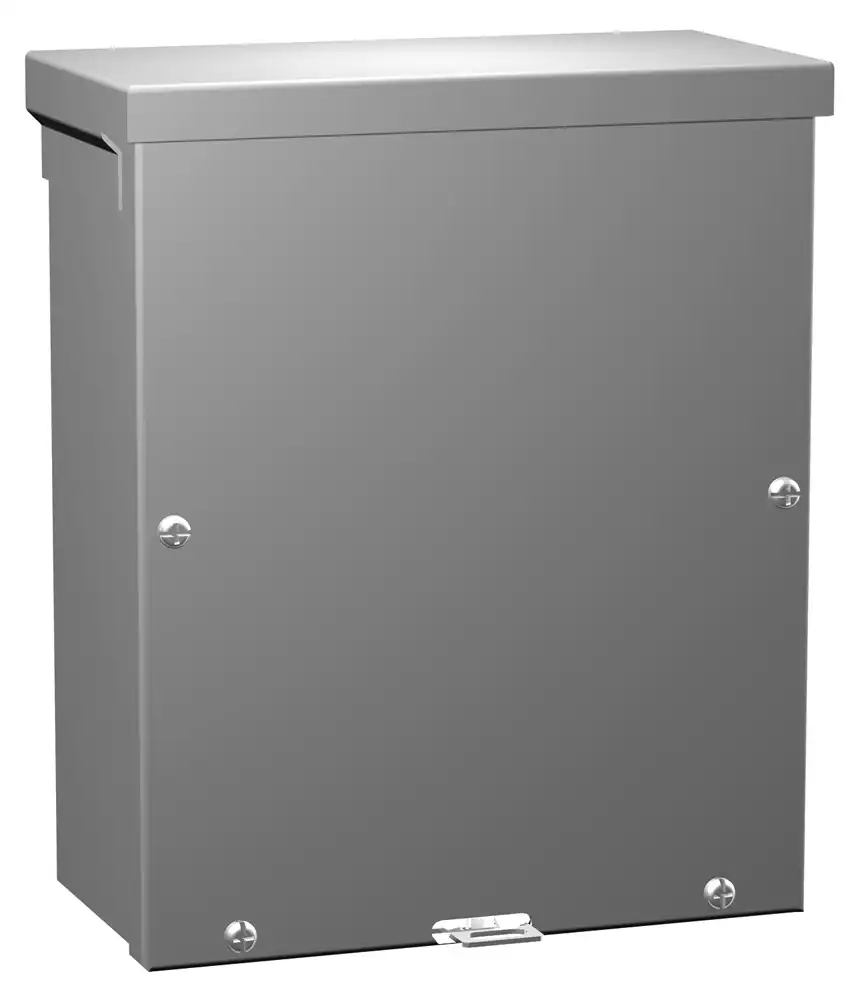

C3R SC NKO Series Type 3R Painted Galvanized Steel Junction Box

Lift-Off Cover With Screws Without Knockouts

Product Application:

Designed for use as a wiring/junction box.
Provides protection against rain, sleet, snow and dripping water.

Product Construction:

Formed and spot welded from 16 or 14 gauge galvanized steel.
Drip-shield top and seam-free sides, front and back.
Slip-on removable cover fastened with plated steel screws.
Door handles on body type C enclosures.
Embossed mounting holes on back of enclosure.
Padlocking hasp.
No gasket.

Product Finish:

Enclosure and cover are finished in ANSI 61 grey powder coating.

Product Standards:

UL-50 Type 3R.
CSA Type 3R.
Complies with:
- NEMA Type 3R
- IEC 60529, IP24

Product Resources:

View Product Data Sheet
View Customisation Options

Share This Product

Hammond Manufacturing Electrical Enclosures

KGA Enclosures Ltd are full authorised distributors of the Hammond Manufacturing Electrical Enclosures product range. This entire range is available from KGA Enclosures Ltd at great competitive pricing and with full customisation options on all applicable products.

To purchase any product or for more information on any product offered, simply call (+44) 01535 636856 or E-Mail: sales@kgaenclosures.com, where we will be happy to assist you.

View the Hammond Manufacturing Electrical Enclosures Range
View the Hammond Manufacturing Electrical Enclosures Price List

Or view the related product ranges from Hammond Manufacturing, which are all available from KGA Enclosures Ltd. Including the:

Hammond Manufacturing Enclosures Range
Hammond Manufacturing Power Distribution Range
Hammond Manufacturing Rack Systems Range
Hammond Manufacturing Transformers Range
Ritec Plastic Enclosures Range

What makes KGA Enclosures Ltd different from most other larger distributors is that we offer full customisation services on all enclosure and accessories (where applicable). All customisation work is undertaken by the relevant supplier, (some small projects are done utilizing outside contractors) at their own manufacturing facilities. These services include milling or punching of holes and slots into the enclosure or end plates for cables, connectors, switches etc. Printing and silk screening services allow for the addition of text, logos and graphics onto both the enclosure and end plates, to allow the end user to easily identify the product as well as giving the final product a more elegant finish. For more information on customisation services, please contact us.

C3R SC NKO Series - Hammond Manufacturing Electrical Enclosures at KGA Enclosures Ltd

Product Options

Part No	Product Information	1+	10+	25+	More
C3R10104SCNKO	Please Click Product Link For more Information	P.O.A.	P.O.A.	P.O.A.	More....
C3R10106SCNKO	Please Click Product Link For more Information	P.O.A.	P.O.A.	P.O.A.	More....
C3R12124SCNKO	Please Click Product Link For more Information	P.O.A.	P.O.A.	P.O.A.	More....
C3R12126SCNKO	Please Click Product Link For more Information	P.O.A.	P.O.A.	P.O.A.	More....
C3R12128SCNKO	Please Click Product Link For more Information	P.O.A.	P.O.A.	P.O.A.	More....
C3R16126SCNKO	Please Click Product Link For more Information	P.O.A.	P.O.A.	P.O.A.	More....
C3R18186SCNKO	Please Click Product Link For more Information	P.O.A.	P.O.A.	P.O.A.	More....
C3R18188SCNKO	Please Click Product Link For more Information	P.O.A.	P.O.A.	P.O.A.	More....
C3R242410SCNKO	Please Click Product Link For more Information	P.O.A.	P.O.A.	P.O.A.	More....
C3R242412SCNKO	Please Click Product Link For more Information	P.O.A.	P.O.A.	P.O.A.	More....
C3R24246SCNKO	Please Click Product Link For more Information	P.O.A.	P.O.A.	P.O.A.	More....
C3R24248SCNKO	Please Click Product Link For more Information	P.O.A.	P.O.A.	P.O.A.	More....
C3R303012SCNKO	Please Click Product Link For more Information	P.O.A.	P.O.A.	P.O.A.	More....
C3R363612SCNKO	Please Click Product Link For more Information	P.O.A.	P.O.A.	P.O.A.	More....
C3R664SCNKO	Please Click Product Link For more Information	P.O.A.	P.O.A.	P.O.A.	More....
C3R884SCNKO	Please Click Product Link For more Information	P.O.A.	P.O.A.	P.O.A.	More....
C3R886SCNKO	Please Click Product Link For more Information	P.O.A.	P.O.A.	P.O.A.	More....
For pricing and availability please contact us

Hammond Manufacturing - Customisation Services

Modified Electronic Enclosures

Almost every enclosure will need some kind of modification to be useful. In house modifications can be tedious, over complicated and a distraction from your main core business. A third party shop can add time and expense. Let us help you to deliver quality products made to your exact specifications.

Hammond Manufacturing Customisation Services

Why choose Hammond Manufacturing to modify your enclosure

Hammond Manufacturing offers a wide selection and massive inventory of enclosures ready to be modified.
Typically the minimum order quantity is 25 pieces. This can vary depending on product and service required. Please note KGA Enclosures does not add on any charges.
Hammond has an experience enclosure modification team and two dedicated modification facilities in North America and the United Kingdom. They are knowledgeable, available and capable.
Hammond Manufacturing helps eliminate scrap and design errors with approval drawings to confirm correct interpretation of your deign required. Many orders will also include a fast delivery of sample enclosures for your inspection. These steps ensure that your assembly fits perfectly before heading into the mass production stage.

Popular modification services offered:

Holes
Cutouts
Tapping and countersinking.
Pressed-in hardware (Studs, Standoffs)
Silk screening
UV Printing
Special colours
Special length extrusions
Pre-Installed accessories
Available services vary by product
