RH3135 - Ritec Plastic Enclosures
RH3135 | Ritec Plastic Enclosures | KGA Enclosures Ltd

Product Price Breakdown
1+ £2.67
10+ £2.45
25+ £2.40
50+ £2.32
100+ £2.29
250+ £2.27
500+ £2.24
1000+ £2.23
2500+ £2.20
In Stock Prices shown excludes VAT
Product Information
Part No RH3135
Product Series RH Series
ColourLight Grey
MaterialABS Plastic
Dimensions (L x W x D)120mm x 70mm x 25mm
Flammability RatingUL94 HB
Battery DoorNo
Technical Drawings3D     STP     DXF     PDF
REACH Compliant Yes
RoHS Compliant Yes
Share Me - RH3135 Share on Facebook Share on Twitter Share on LinkedIn

RH3135 | RH Series | Ritec Plastic Enclosures | KGA Enclosures Ltd

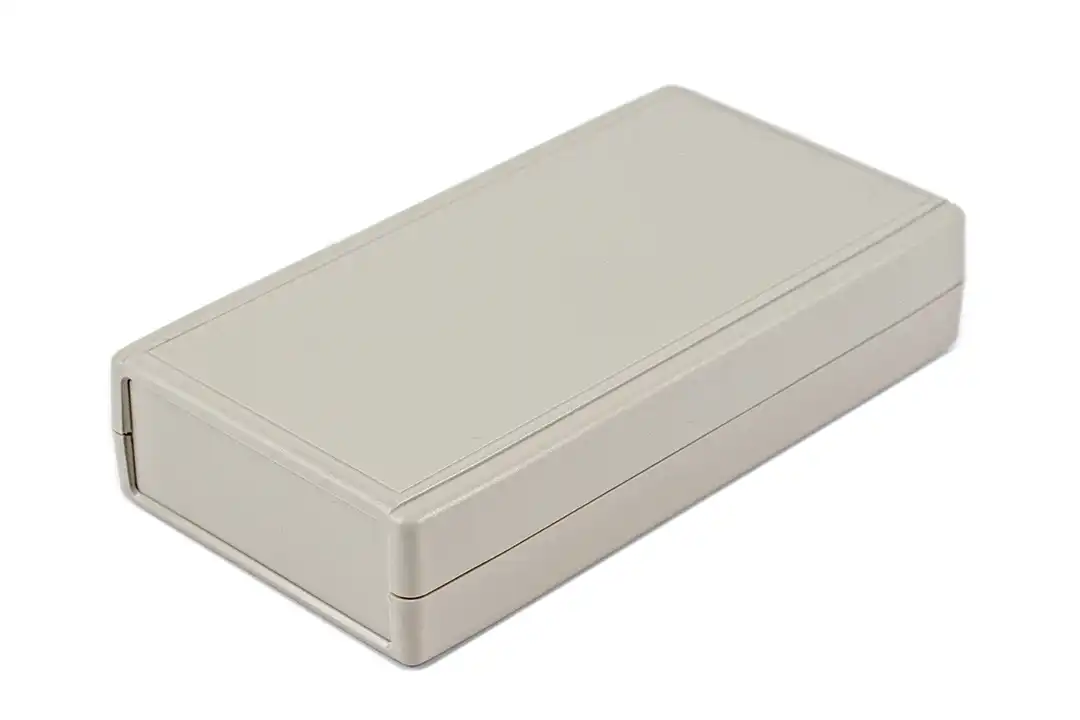

RH Series - ABS Plastic Hand Held Enclosures

Product Features
  • Electronic instrument enclosures, ideally suited for mounting printed circuit boards.
  • Ergonomically designed for a comfortable fit into the user's hand.
  • Lap joint construction provides some protection against dust accumulation and splashing water.
  • Removeable front panel for easy modifications.
  • Moulded in a light grey general purpose ABS Plastic with a light texture (material carries a UL flammability rating of UL94 HB).
  • Assembled with M3 Philips machine screws, threaded into integral brass bushings. Perfect for applications when repetitive assembly and disassembly is required.
    • See product data sheets for replacement lid screws packs.
  • Both top and bottom halves contain P.C. board standoffs moulded in.
  • The two largest sizes (RH3185* and RH3195*) include four self adhesive rubber feet for desktop use.
Assembly Screws
  • Replacement M2.6 x 6mm self-tapping PCB screws, pack of 50: SC519-50.
Belt/Pocket Clips
  • Choice of either black or grey to match enclosure colours.
  • Made from tough nylon material.
  • Includes mounting hardware.
Ritec Plastic Enclosures
KGA Enclosures Ltd are full authorised distributors of the Ritec Plastic Enclosures product range. This entire rage is available from KGA Enclosures Ltd at great competitive pricing and with full customisation options on all applicable products.

Please Remember - Only use authorised distributors to purchase these products. Using authorised distributors will guarantee you receiving a genuine product which, by using KGA Enclosures Ltd, we can guarantee you will receive.
