CT5CF - Hammond Manufacturing Transformers
CT5CF | Hammond Manufacturing Transformers | KGA Enclosures Ltd

Product Price Breakdown
1+ £18.66
5+ £17.91
10+ £17.17
25+ £16.79
50+ £16.23
100+ £16.05
250+ £15.86
500+ £15.68
1000+ £15.58
2500+ £15.40
In Stock Prices shown excludes VAT
Product Information
Part No CT5CF
Product Series CT5 Series
StyleChassis Mount
Current Ratio Pri. /Sec.1000:1
Height32mm
Depth28mm
Width52mm
Mounting Hole5mm
Ship Wt. Oz.2.6
RoHS Compliant Yes
REACH Compliant Yes
Share Me - CT5CF Share on Facebook Share on Twitter Share on LinkedIn

CT5CF | CT5 Series | Hammond Manufacturing Transformers | KGA Enclosures Ltd

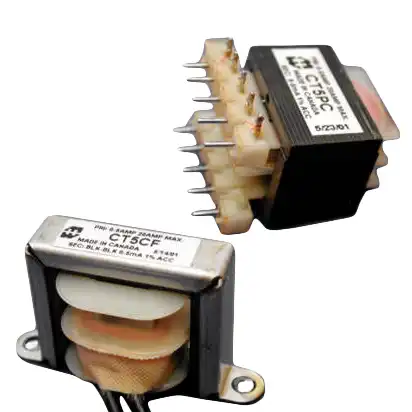

CT5 Series - Current Transformer Small Current

Product Features:
  • Designed for a 5 amp. primary (maximum 20 Amp), secondary current 5 ma.
  • 40 - 1,000 Hz. operation.
  • Customers to supply primary winding (1 turn through open top of transformer bobbin).
  • Two hole chassis mount or P.C. board pin mount.
  • Both units have 5 ma. secondary for use with standard AC ammeters with 5 ma.movements.
  • High accuracy windings (1%).
Application Data:
  • To obtain current measurement:
    • Pass the wire carrying the current to be measured through the window of the CT transformer (acting as a primary winding).
    • Connect the CT secondary to an ammeter with a 5 mA movement.
