BE5DG - Hammond Manufacturing Transformers
BE5DG | Hammond Manufacturing Transformers | KGA Enclosures Ltd

Product Price Breakdown
1+ £15.86
5+ £15.22
10+ £14.59
25+ £14.27
50+ £13.79
100+ £13.64
250+ £13.48
500+ £13.32
1000+ £13.24
2500+ £13.08
In Stock Prices shown excludes VAT
Product Information
Part No BE5DG
Product Series BA-C-D-E Series
A.C. Input (Primary) V (RMS)208/240
A.C. Output Secondary (RMS) V24
A.C. Output Secondary (RMS) A1.67
Power Rating VA40
Dimension A59mm
Dimension B66mm
Dimension C50mm
RoHS Compliant Yes
REACH Compliant Yes
Share Me - BE5DG Share on Facebook Share on Twitter Share on LinkedIn

BE5DG | BA-C-D-E Series | Hammond Manufacturing Transformers | KGA Enclosures Ltd

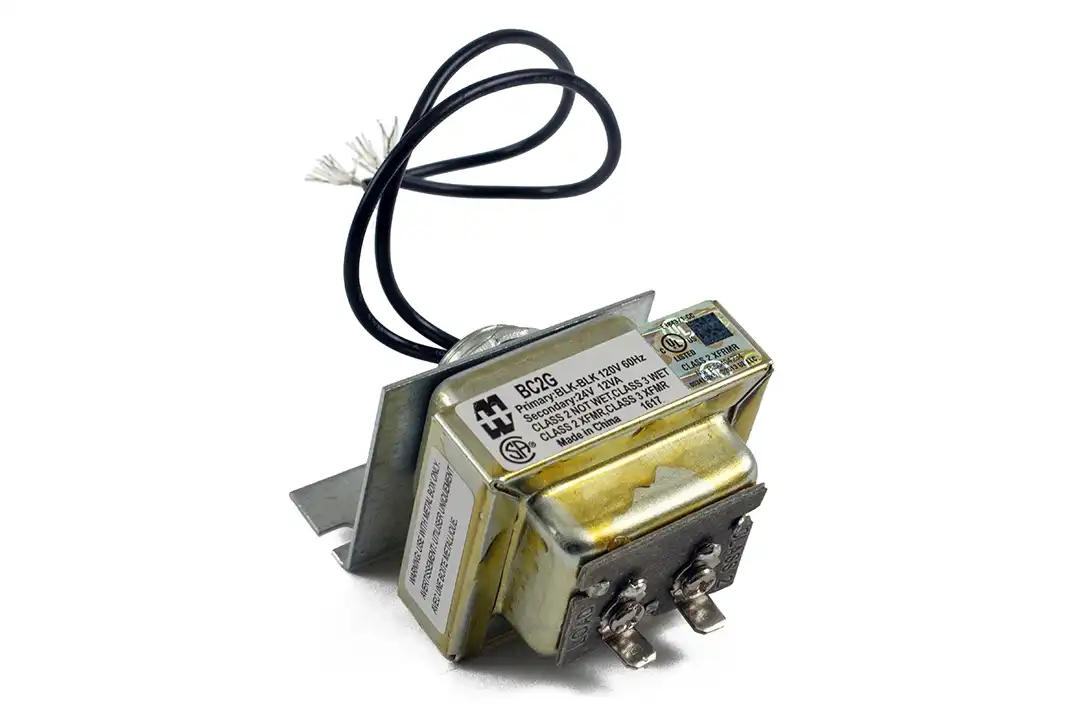

BA-C-D-E Series - Class 2 Energy Limiting Small Box Mount

Product Features:
  • Used in chimes, door bells, security systems, decorative lighting, furnaces, humidifiers, appliances, vending machines, intercom system type applications.
  • Rugged, low noise, cool running design, indoor use only.
  • Stripped wire input (primary) leads, screw terminal/quick fit tab terminal output (secondary).
  • Nipple locknut mount for box installation, complete with locknut and mounting bracket.
  • Input leads are black, on 240V models 240V lead is red. All models are 60 Hz. - inherently limited - no fuses or circuit breakers.
  • UL listed #E184371 - Except for part numbers BE2F and BE7G.
  • CSA certified (209651).
