Hammond Manufacturing Transformers | 812A

Name: 812A
Brand: Hammond Manufacturing
SKU: 812A
Price: 105.98 GBP
Availability: InStock

812A | Hammond Manufacturing Transformers

Product Price Breakdown

1+	£105.98
5+	£101.74
10+	£97.50
25+	£95.38
50+	£92.20
100+	£91.14
250+	£90.08
500+	£89.02
1000+	£88.49
2500+	£87.43
In Stock	Prices shown excludes VAT

Customisation Options

Product Data Sheet

Purchase / Buy Product

Related Products

Product Information

Part No	812A
Product Series	800A Series
Application	Line or 150 ohm MIC to 1 or 2 Grids
Nominal Impedance (Ohms) Primary	*125/500 (150/600)
Nominal Impedance (Ohms) Secondary	10K/40K (12K/48K)
Max. Primary D.C. Unbalanced Current (ma.)	0.4
RoHS Compliant	Yes
REACH Compliant	Yes
Share

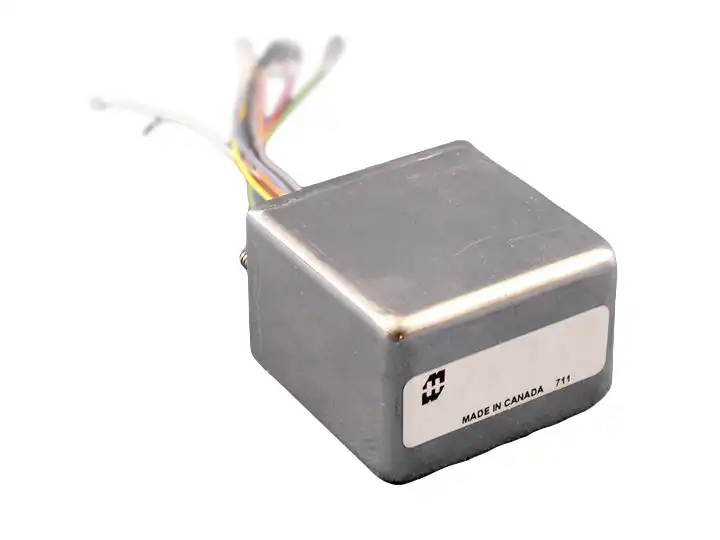

800A Series - Audio Broadcast Quality

Product Features:

Deep-drawn steel case with tin plated finish, with two convenient 6-32 mounting studs with hardware.
Includes wire leads (minimum length of 4").
Frequency response +/- 0.5 db max. from 50 Hz. to 15 Khz.
Insertion loss of apx. 1 db.
Maximum power level +15 dbm. (except 841A, 842A, and 844A which are +20 dbm) with specified characteristics, or higher levels with reduced low frequency performance.
Electrostatic shield between pri. and sec.
Humbucking construction.
Balanced split windings on pri. and sec. for circuit versatility. Primary may be used as a secondary and vice versa for impedance matching.
Overall dimensions 1.75" (44.5mm) wide x 1.25" (31.8mm) deep x 2.56" (65mm) high max.
Shipping weight 0.5 lbs. (0.2 kg).
