560L - Hammond Manufacturing Transformers
560L | Hammond Manufacturing Transformers | KGA Enclosures Ltd

Product Price Breakdown
1+ £54.37
5+ £52.19
10+ £50.02
25+ £48.93
50+ £47.30
100+ £46.76
250+ £46.21
500+ £45.67
1000+ £45.40
2500+ £44.85
In Stock Prices shown excludes VAT
Product Information
Part No 560L
Product Series 560 Series
ApplicationCollector to Line or Matching
Nominal Impedance (Ohms) Primary150/600
Nominal Impedance (Ohms) Secondary5K/20K
Dimension A34mm
Dimension B42mm
Dimension C22mm
Dimension D5mm
Dimension E33mm
Dimension F4mm
Dimension G9mm
Dimension H4mm
RoHS Compliant Yes
REACH Compliant Yes
Share Me - 560L Share on Facebook Share on Twitter Share on LinkedIn

560L | 560 Series | Hammond Manufacturing Transformers | KGA Enclosures Ltd

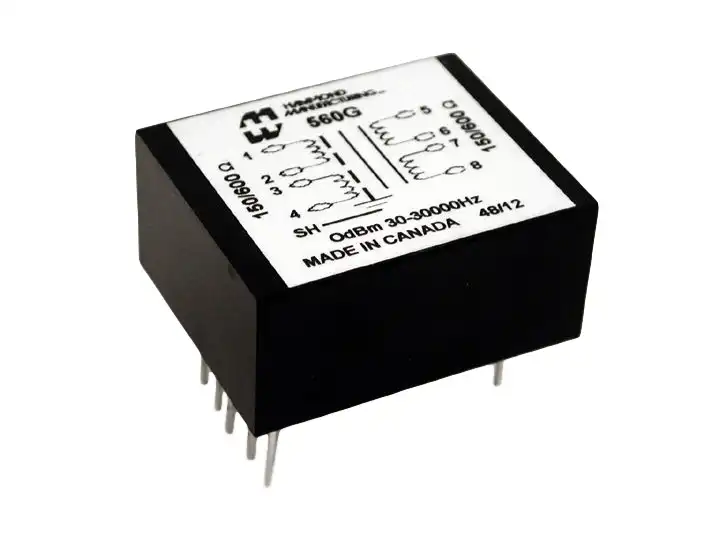

560 Series - Audio Broadcast Quality

Product Features:
  • Rugged black epoxy potted case with 9 pin connections (0.025" square by 0.5" long).
  • Frequency response minimum @ 0 dbm +/- 1 db max. (+/- 0.5 db is typical) of 30 Hz. to 30 Khz., except 560Q which is 30 Hz. to 15 Khz.
  • Higher signal levels possible with reduced low frequency performance.
  • Insertion loss of 1 db maximum.
  • Electrostatic shield between primary and secondary connected to core and brought out to pin "SH".
  • Humbucking construction.
  • Balanced split windings on pri. and sec. for circuit versatility.
  • Primaries and secondaries can be reversed for impedance matching.
  • Overall dimensions 1.64" (41.77mm) x 1.33" (33.8mm) x 0.85" (21.6mm) high max.
  • Shipping weight 4 oz. (0.1 kg).
