298FT | Hammond Manufacturing Transformers
298FT | Hammond Manufacturing Transformers | KGA Enclosures Ltd

Product Price Breakdown
1+ £392.34
5+ £376.64
10+ £360.95
25+ £353.10
50+ £341.33
100+ £337.41
250+ £333.49
500+ £329.56
1000+ £327.60
2500+ £323.68
In Stock Prices shown excludes VAT
Product Information
Part No 298FT
Product Series 298 Series
Capacity (VA)1000
Number of Outlets2
Length260mm
Width191mm
Height127mm
RoHS Compliant Yes
REACH Compliant Yes
Share Me - 298FT Share on Facebook Share on Twitter Share on LinkedIn

298FT | 298 Series | Hammond Manufacturing Transformers | KGA Enclosures Ltd

298 Series - Toroidal Isolation - Step Up (120 VAC To 240 VAC)
Plug-In
Product Information
How To Purchase Products
Customisation Services

Product Features:
  • Primary 120VAC, 50/60 Hz., Secondary 240VAC.
  • Provides circuit isolation.
  • Toroidal transformer for high isolation, low noise, light weight cool operation and low profile.
  • 50 or 60 Hz. operation, step up (120VAC to 240VAC).
  • Standard 3-wire, grounded plug (can also be used with adaptors (298G Series) for proper grounding).
  • Input (primary) connected to a 5 foot cord and standard North American plug (NEMA 5-15P).
  • Output (secondary) connected to a standard North American duplex - 3 wire grounded receptacle (NEMA 6-15R).
  • Transformers Hi-Pot test of 4,000 V MRS between primary and secondary.

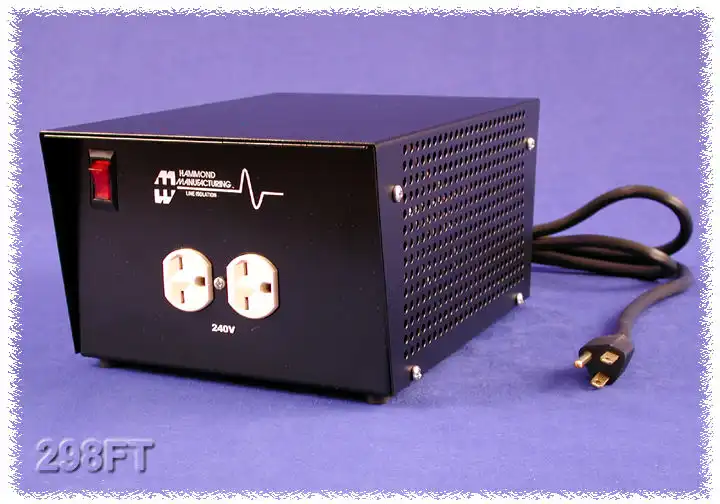

  • Features include ventilated black steel case with rocker lighted on-off switch and circuit breaker protected output.
  • North American mark of safety - C UL and UL listed (File #E211544).
  • Indoor use only.
  • Remember - These units do not convert line frequency.
  • Note about Inrush Current - Due to the superior magnetic properties of Toroidal transformers they will be susceptible to high magnetizing current when initially energized, only limited by the low DC resistance of the primary winding. Depending on where you are in the AC cycle when the transformer is energized dictates the chances of overloading the supply circuit. This is why the transformer may sometimes energize without a problem and other times it will blow the fuse or trip the circuit breaker. The duration of this overload is rarely longer than a half of a cycle. Therefore, you should consider using a slow-blow fuse, time delayed circuit breaker or other form of soft start circuitry for the supply line when using these high efficient Toroidal transformers.
