240FT | Hammond Manufacturing Transformers
240FT | Hammond Manufacturing Transformers | KGA Enclosures Ltd

Product Price Breakdown
1+ £402.22
5+ £386.13
10+ £370.04
25+ £361.99
50+ £349.93
100+ £345.91
250+ £341.88
500+ £337.86
1000+ £335.85
2500+ £331.83
In Stock Prices shown excludes VAT
Product Information

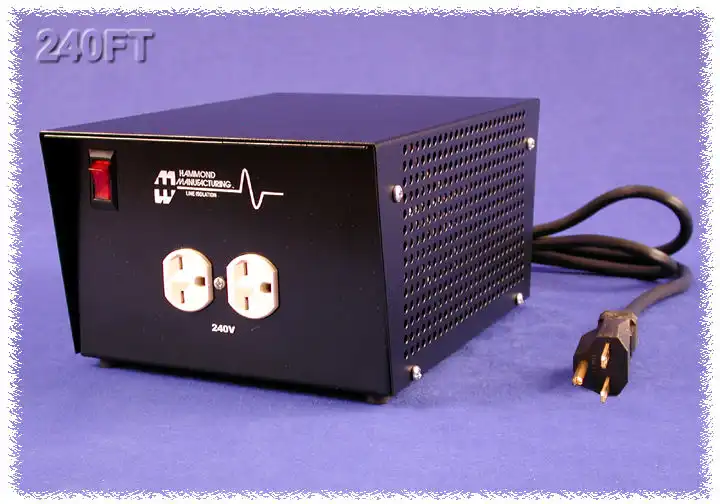

Part No 240FT
Product Series 240 Series
Capacity Va1000
Outlet Qty51
Length260mm
Width191mm
Height127mm
RoHS Compliant Yes
REACH Compliant Yes
Share Me - 240FT Share on Facebook Share on Twitter Share on LinkedIn

240FT | 240 Series | Hammond Manufacturing Transformers | KGA Enclosures Ltd

240 Series - Toroidal Isolation (240 VAC To 240 VAC)
Plug-In
Product Information
How To Purchase Products
Customisation Services

Product Features:
  • Primary 240VAC, 50/60 Hz., Secondary 240VAC.
  • Provides circuit isolation.
  • Toroidal transformer for high isolation, low noise, light weight, cool operation and low profile.
  • World wide applications, 50 or 60 Hz. operation (240VAC to 240VAC).
  • Standard 3-wire, grounded plug (for use with adaptors (298G Series) for proper grounding).
  • Input (primary) connected to a 5 foot long cord and standard North American plug (NEMA 6-15P).
  • Output (secondary) connected to a standard - 3 wire grounded duplex receptacle (NEMA 6-15R).
  • Features include ventilated black steel case, rocker lighted on-off switch and circuit breaker protected output.
  • North American mark of safety - C UL and UL listed (File #E211544).
  • Indoor use only.
  • Remember - These units do not convert line frequency.
  • Note about Inrush Current - Due to the superior magnetic properties of Toroidal transformers they will be susceptible to high magnetizing current when initially energized, only limited by the low DC resistance of the primary winding. Depending on where you are in the AC cycle when the transformer is energized dictates the chances of overloading the supply circuit. This is why the transformer may sometimes energize without a problem and other times it will blow the fuse or trip the circuit breaker. The duration of this overload is rarely longer than a half of a cycle. Therefore, you should consider using a slow-blow fuse, time delayed circuit breaker or other form of soft start circuitry for the supply line when using these high efficient Toroidal transformers.
Hammond Manufacturing Transformers
KGA Enclosures Ltd are full authorised distributors of the Hammond Manufacturing Transformers product range. This entire range is available from KGA Enclosures Ltd at great competitive pricing and with full customisation options on all applicable products.

Please remember - KGA Enclosures Ltd are authorised distributors of this product range. Please only use authorised distributors to purchase these products. This will then ensure you receive a genuine product.
