227T - Hammond Manufacturing Transformers
227T | Hammond Manufacturing Transformers | KGA Enclosures Ltd

Product Price Breakdown
1+ £77.80
5+ £74.69
10+ £71.57
25+ £70.02
50+ £67.68
100+ £66.91
250+ £66.13
500+ £65.35
1000+ £64.96
2500+ £64.18
In Stock Prices shown excludes VAT
Product Information
Part No 227T
Product Series 226-227-228 Series
Size (VA)40
Freq. (Hz)400
Secondary (RMS) Series40V C.T. @ 1A
Secondary (RMS) Parallel20V @ 2A
Temp. Rise (C)45
% Regulation5.7
High Max1.05
Pin Diameter1mm
Weight lbs.0.38
RoHS Compliant Yes
REACH Compliant Yes
Share Me - 227T Share on Facebook Share on Twitter Share on LinkedIn

227T | 226-227-228 Series | Hammond Manufacturing Transformers | KGA Enclosures Ltd

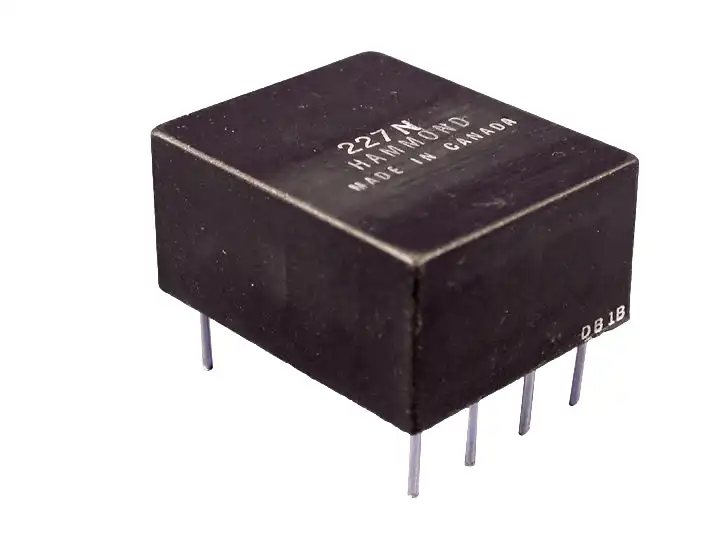

226-227-228 Series - Low Voltage P.C. Board Mount - Epoxy Cast - 1 VA To 40 VA

Product Features:
  • Primary 115 VAC, 60 or 400Hz. models, 3 case sizes.
  • Epoxy cast to withstand shock and severe environments.
  • Two coil design provides balanced windings and low magnetic radiation - no electrostatic shield required.
  • 228 Series include four, 6-32 x 0.38 machine screw inserts for less strain on P.C. board connections.
