197J5 - Hammond Manufacturing Transformers
197J5 | Hammond Manufacturing Transformers | KGA Enclosures Ltd

Product Price Breakdown
1+ £97.21
5+ £93.32
10+ £89.43
25+ £87.49
50+ £84.57
100+ £83.60
250+ £82.63
500+ £81.65
1000+ £81.17
2500+ £80.20
In Stock Prices shown excludes VAT
Product Information
Part No 197J5
Product Series 197 Series
Inductance (mH)14
DC Current (A)5
Self-Resonant Frequency (kHz)74.35
DC Resistance (mOhm)293
Dimension A98.04mm
Dimension B114.3mm
Dimension C85.6mm
Mounting Hole Pattern101.6mm x 69.85mm
Weight (lbs)6
RoHS Compliant Yes
REACH Compliant Yes
Share Me - 197J5 Share on Facebook Share on Twitter Share on LinkedIn

197J5 | 197 Series | Hammond Manufacturing Transformers | KGA Enclosures Ltd

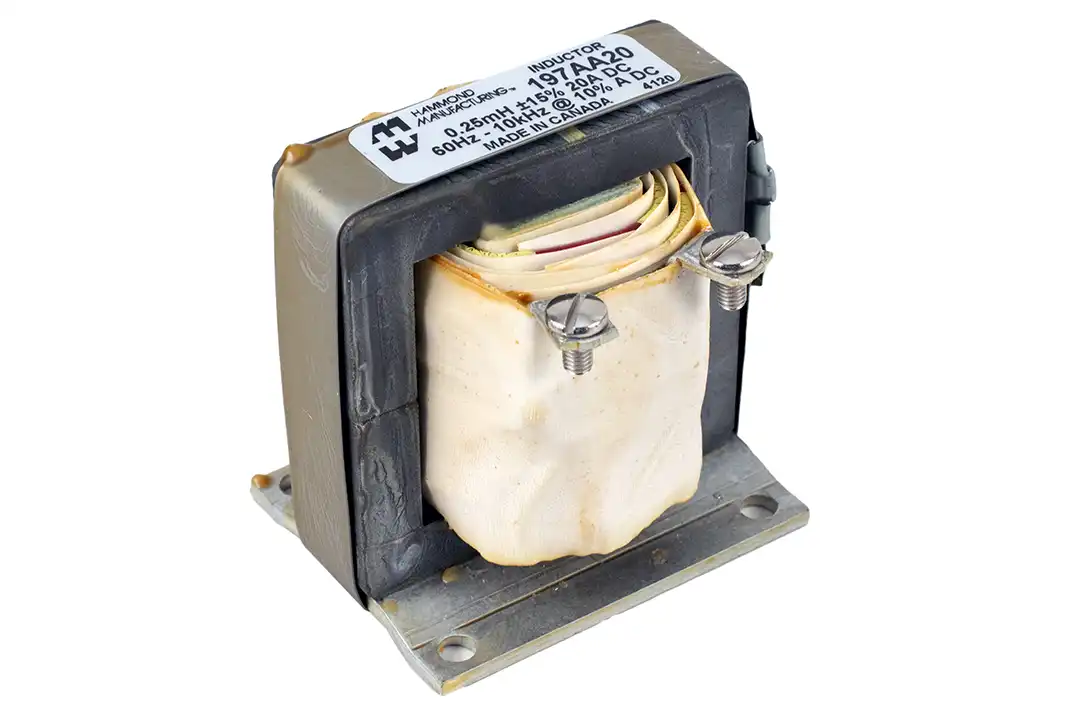

197 Series - High Frequency Reactors

Product Features:
  • Perfect for high frequency filtering applications.
  • High self-resonant frequency values.
  • Operating frequency: 60 Hz. - 10kHz.
  • Some models feature universal channel mount packaging with flexible insulated leads (6" min).
  • Some models feature rugged construction with aluminium base and stainless steel band along with open-style terminals for maximum versatility.
