172B - Hammond Manufacturing Transformers
172B | Hammond Manufacturing Transformers | KGA Enclosures Ltd

Product Price Breakdown
1+ £133.40
5+ £128.06
10+ £122.73
25+ £120.06
50+ £116.06
100+ £114.72
250+ £113.39
500+ £112.05
1000+ £111.39
2500+ £110.05
In Stock Prices shown excludes VAT
Product Information
Part No 172B
Product Series 172 Series
Capacity VA200
Leakage Current41.97 ?A
Full Load Efficiency91%
Full Load Total Harmonic Distortion0.18%
Surge / Noise Suppression-34.32 dB
Capacitance Between Windings at 2KHz20 pF
Dimension A97mm
Dimension B141mm
Dimension C119mm
Dimension D76mm
Dimension E99mm
Weight Lbs8.5
RoHS Compliant Yes
REACH Compliant Yes
Share Me - 172B Share on Facebook Share on Twitter Share on LinkedIn

172B | 172 Series | Hammond Manufacturing Transformers | KGA Enclosures Ltd

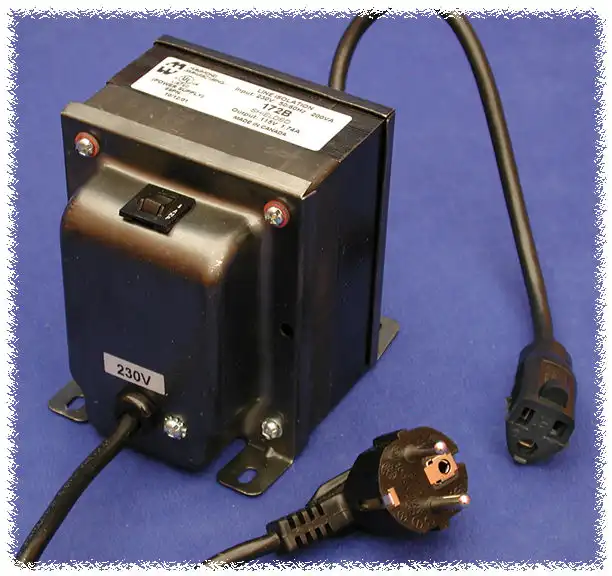

172 Series - Isolation - Step Down (230 VAC To 115 VAC)
Plug-In

Product Features:
  • Primary 230VAC, 50/60 Hz. Secondary 115VAC.
  • Circuit breaker in primary.
  • Provides circuit isolation and steps down primary voltage.
  • Hi-pot tested to 2 KV RMS.
  • Electrostatic shied between primary and secondary.
  • Input (primary) connected to a 5 foot long cord and European (Schuko) grounded plug - Note: old inventory only.
  • Input - due to U.L. changes in 2007 - New production with the European (Schuko) parts would no longer by U.L. listed. Therefore, Hammond have replaced this input plug with a standard North American 3-wire, 250V plug (NEMA 6-15P).
  • Output (secondary) connected to a 1 foot long cord and standard North American 3-wire grounded receptacle (NEMA 5-15R).
  • North American mark of safety - C UL and UL listed (File #E211544).
  • Indoor use only.
  • Remember - These units do not convert line frequency.
