171C - Hammond Manufacturing Transformers
171C | Hammond Manufacturing Transformers | KGA Enclosures Ltd

Product Price Breakdown
1+ £128.51
5+ £123.37
10+ £118.23
25+ £115.66
50+ £111.81
100+ £110.52
250+ £109.24
500+ £107.95
1000+ £107.31
2500+ £106.02
In Stock Prices shown excludes VAT
Product Information
Part No 171C
Product Series 171 Series
Capacity VA300
Leakage Current54.92 µA
Full Load Efficiency94%
Full Load Total Harmonic Distortion0.24%
Surge/Noise Suppression-34.32 dB
Capacitance Between Windings @ 3Khz20 pF
Circuit Breaker (Amps)3
Dimension A97mm
Dimension B154mm
Dimension C119mm
Dimension D76mm
Dimension E111mm
Weight Lbs11
RoHS Compliant Yes
REACH Compliant Yes
Share Me - 171C Share on Facebook Share on Twitter Share on LinkedIn

171C | 171 Series | Hammond Manufacturing Transformers | KGA Enclosures Ltd

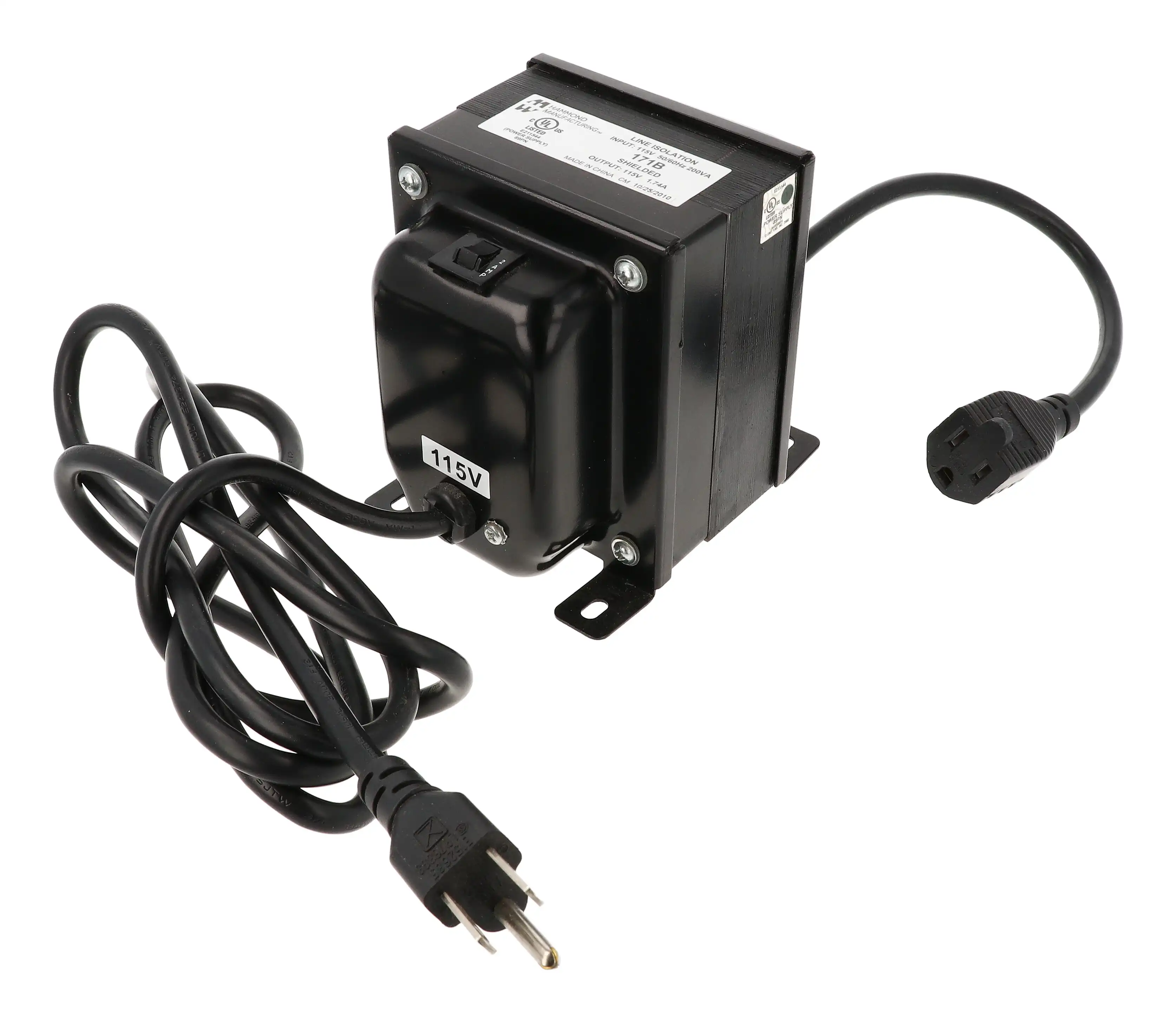

171 Series - Isolation (115 VAC To 115 VAC)
Plug-In

Product Features:
  • Primary 115VAC, 50/60 Hz., Secondary 115VAC.
  • Provides complete circuit isolation.
  • Electrostatic shield between primary and secondary to greatly attenuate surges and noise.
  • Hi-pot tested 2 KV RMS.
  • Circuit breaker in primary.
  • Standard 3-wire, grounded plug and receptacle.
  • Input (primary) connected to 5 foot long cord and standard North American plug (NEMA 5-15P).
  • Output (secondary) connected to 1 foot long "pig tail" cord, 3-wire, standard North American grounded receptacle (NEMA 5-15R).
  • North American mark of safety - C UL and UL listed (File #E211544).
  • Indoor use only.
  • Remember - Theses units do NOT convert line frequency.
