Product Price Breakdown
1+ £321.34
5+ £308.49
10+ £295.64
25+ £289.21
50+ £279.57
100+ £276.36
250+ £273.14
500+ £269.93
1000+ £268.32
2500+ £265.11
In Stock Prices shown excludes VAT
Product Information
Part No 1642SE
Product Series 1627-1642 Series
Audio Watts75
Impedance (Ohms)5000
Primary Max. DC Bias300 ma.
Inductance53 Henrys
Ultra-Linear 40% Primary TapNo
Secondary Impedance (Ohms)4-8-16
Hipot Test (VRMS)3500
Weight (lbs.)28
Dimension A111mm
Dimension B191mm
Dimension C133mm
Dimension D89mm
Dimension E149mm
Mounting Slot5mm x 10mm
RoHS Compliant Yes
REACH Compliant Yes
Share Me - 1642SE Share on Facebook Share on Twitter Share on LinkedIn

1642SE | 1627-1642 Series | Hammond Manufacturing Transformers | KGA Enclosures Ltd

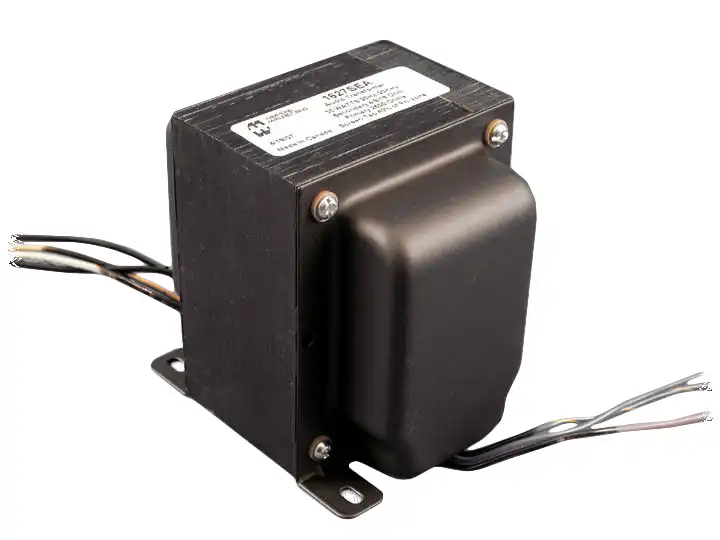

1627-1642 Series - Tube Output (25 - 75 Watts) Single Ended - Hi-Fi

Product Features:
  • "Over designed" for high fidelity, single ended, Class-A, tube output circuits (triode, tetrode, or pentode tubes).
  • Enclosed (shielded), four slot, chassis Type "X" mounting.
  • Frequency response at least 20 Hz. to 20 Khz. at full rated power (+/- 1 db max., ref. 1 Khz.).
  • Insulated flexible leads 8" min.
  • For maximum versatility, all units (except the 1642SE and 1638SEA) include a 40% screen tap for ultra-linear, tetrode/pentode operation (if desired). The 1642SE and 1638SEA do not include this screen tap as they were designed principally for high impedance triode tubes.
  • High quality laminations, (M6) grain oriented silicon steel.
  • Core is gapped to reduce core saturation in Class-A tube amplifier circuits.
Related Products:
  • For general purpose or replacement use in single ended tube output circuits see the 125SE Series.
