149H | Hammond Manufacturing Transformers
149H | Hammond Manufacturing Transformers | KGA Enclosures Ltd

Product Price Breakdown
1+ £17.70
5+ £16.99
10+ £16.28
25+ £15.93
50+ £15.40
100+ £15.22
250+ £15.04
500+ £14.87
1000+ £14.78
2500+ £14.60
In Stock Prices shown excludes VAT
Product Information
Part No 149H
Product Series 149 Series
ApplicationDriver
Nominal Impedance (Ohms) Primary1000
Nominal Impedance (Ohms) Secondary60/240
Max. Primary D.C. Current (ma.)22
D.C. Resistance (Ohms) +/- 15% Primary155
D.C. Resistance (Ohms) +/- 15% Secondary24
Output (Milliwatts)200
RoHS Compliant Yes
REACH Compliant Yes
Share Me - 149H Share on Facebook Share on Twitter Share on LinkedIn

149H | 149 Series | Hammond Manufacturing Transformers | KGA Enclosures Ltd

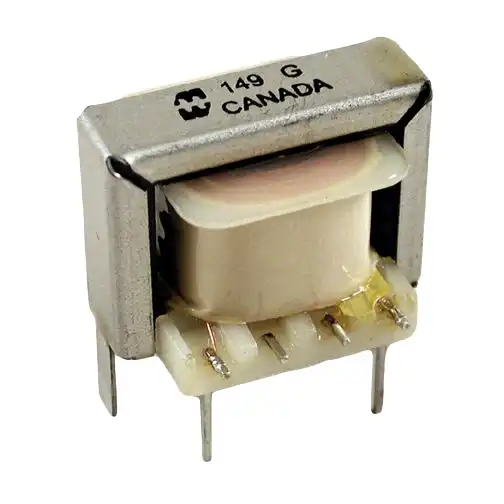

149 Series - Audio Open Frame
P.C. Board Mount

Product Features:
  • Pin type (0.25" length and 0.025" square), P.C. board mount.
  • Economical, open type, horizontal bracket construction.
  • Includes clinching lugs for extra mounting strength.
  • Frequency response 200 Hz. - 15 Khz. (+/- 1 db, ref. @ 1 Khz.).
  • Total distortion approximately 2% for drivers and 1% for outputs at 200 Hz., decreasing at higher frequencies.
  • Insertion loss less than 1/2 db.
  • Bifilar wound for balanced capacitive and resistance characteristics, on pin bobbins for standard 0.2" grid pin spacing.
  • Insulation test 250V rms.
  • Net weight: 1.0 oz.
