142A - Hammond Manufacturing Transformers
142A | Hammond Manufacturing Transformers | KGA Enclosures Ltd

Product Price Breakdown
1+ £3.93
5+ £3.78
10+ £3.62
25+ £3.54
50+ £3.42
100+ £3.38
250+ £3.34
500+ £3.30
1000+ £3.29
2500+ £3.25
In Stock Prices shown excludes VAT
Product Information
Part No 142A
Product Series 142 Series
Nominal Impedance (Ohms) Primary10K C.T.
Nominal Impedance (Ohms) Secondary10K C.T.
Max. Primary D.C. Current (ma.)4
D.C. Resistance (Ohms) +/- 15% Primary720
D.C. Resistance (Ohms) +/- 15% Secondary925
RoHS Compliant Yes
REACH Compliant Yes
Share Me - 142A Share on Facebook Share on Twitter Share on LinkedIn

142A | 142 Series | Hammond Manufacturing Transformers | KGA Enclosures Ltd

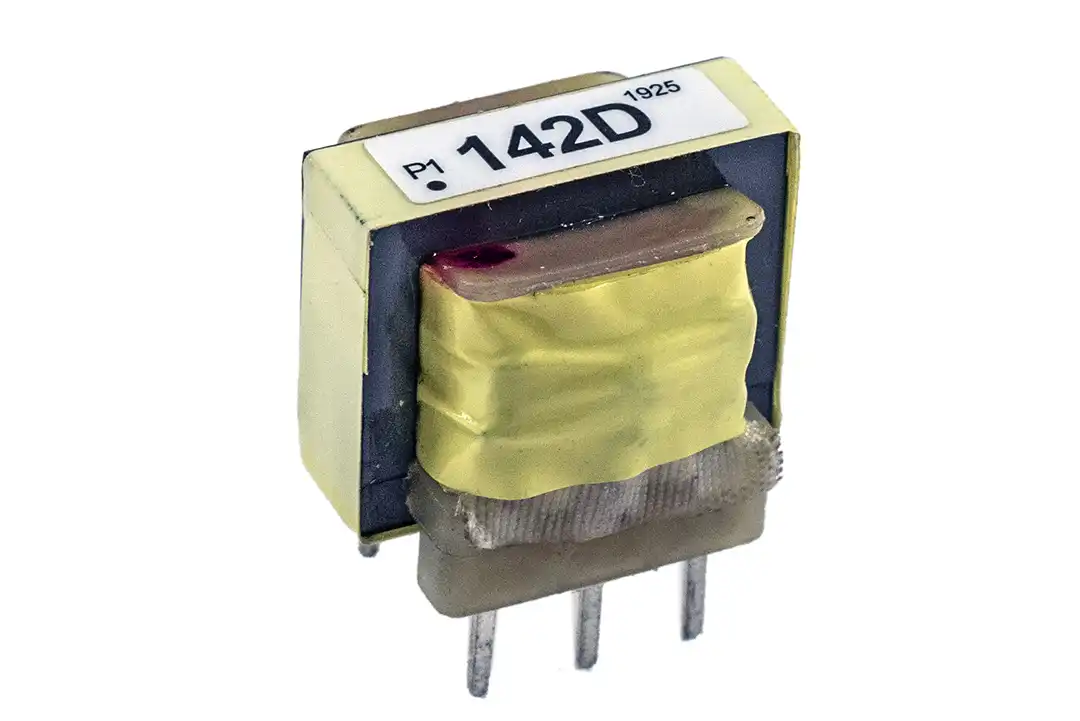

142 Series - Audio Open Frame
P.C. Board Mount

Product Features:
  • Applications: Driver, Input, Interstage, Isolation.
  • 100mW power level at 200 Hz. - 15 kHz.
  • Pin type (0.375" x 0.2"), P.C. board mount.
  • Economical, open type construction.
  • Frequency response 200 Hz. - 15 Khz. (+/- 1 db, ref. @ 1 Khz.).
  • Total distortion less than 0.5% for outputs at 200 Hz., decreasing at higher frequencies.
  • Insertion loss less than 1/2 db.
  • Bifilar wound for balanced capacitive and resistance characteristics, on pin bobbins for standard 0.187" grid pin spacing.
  • Insulation test 1500V rms.
  • Net weight: 0.5 oz.
