Product Price Breakdown
1+ £83.55
5+ £80.21
10+ £76.87
25+ £75.20
50+ £72.69
100+ £71.85
250+ £71.02
500+ £70.18
1000+ £69.76
2500+ £68.93
In Stock Prices shown excludes VAT
Product Information

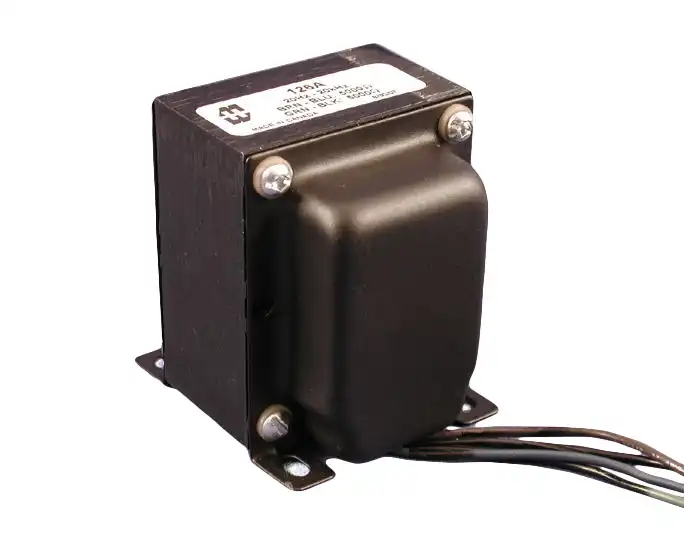

Part No 126A
Product Series 126 Series
Audio Watts4
Primary Impedance (Ohms)5K
Primary D.C. Resistance (Ohms)178
Secondary Impedance (Ohms)5K
Secondary D.C. Resistance (Ohms)178
Inductance59 Henrys
Rated D.C. Bias Current15 ma.
Dimension A64mm
Dimension B79mm
Dimension C79mm
Dimension D51mm
Dimension E57mm
Mounting Slot5mm x 10mm
RoHS Compliant Yes
REACH Compliant Yes
Share Me - 126A Share on Facebook Share on Twitter Share on LinkedIn

126A | 126 Series | Hammond Manufacturing Transformers | KGA Enclosures Ltd

126 Series - Tube Driver - Interstage

Product Features:
  • Designed for driver use only in single ended tube output amplifiers. These units replace coupling capacitor circuits for improved sound.
  • Closed style with minimum 8" long leads.
  • All models use bifilar wound windings for exceptional coupling and bandwidth.
  • Minimum frequency response 20 Hz. - 20 Khz. (+/- 1 db max. ref. 1 Khz.).
  • The core is gapped to support the specified D.C. bias current.
  • Maximum working voltage - 400 VDC.
  • Units are Hi-Pot tested at 1,000 VDC.
  • Core uses Hi grade silicon laminations (29M6).
  • Units weight - 3 lbs. 2 oz.
