125J | Hammond Manufacturing Transformers
125J | Hammond Manufacturing Transformers | KGA Enclosures Ltd

Product Price Breakdown
1+ £36.97
5+ £35.49
10+ £34.01
25+ £33.27
50+ £32.16
100+ £31.79
250+ £31.42
500+ £31.05
1000+ £30.87
2500+ £30.50
In Stock Prices shown excludes VAT
Product Information
Part No 125J
Product Series 125J Series
Audio Watts8
Primary Impedance (Ohms)2.5K or 4K
Secondary Impedance (Ohms)6/8 or 3.2/4
Primary Inductance5.60 H
Weight (lbs.)1
Dimension A83mm
Dimension B38mm
Dimension C49mm
Dimension D71mm
Mounting Hole5mm
RoHS Compliant Yes
REACH Compliant Yes
Share Me - 125J Share on Facebook Share on Twitter Share on LinkedIn

125J | 125J Series | Hammond Manufacturing Transformers | KGA Enclosures Ltd

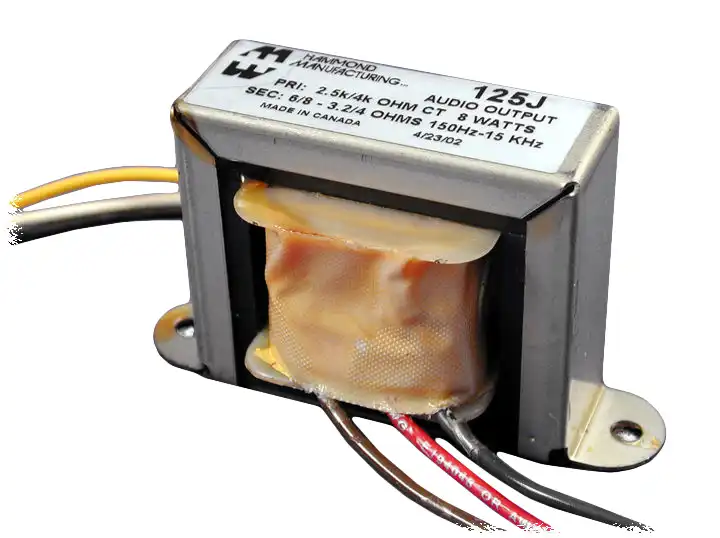

125J Series - General Replacement Tube Output (8 Watt) Push-Pull
Audio

Product Features:
  • Designed for general purpose or replacement use in push-pull tube output circuits.
  • Frequency response: 150 Hz. - 15 Khz. (+/- 1 db max. ref. 1 Khz.).
  • Open style with minimum 10" long primary and secondary leads.
