125CSE | Hammond Manufacturing Transformers
125CSE | Hammond Manufacturing Transformers | KGA Enclosures Ltd

Product Price Breakdown
1+ £49.82
5+ £47.83
10+ £45.84
25+ £44.84
50+ £43.34
100+ £42.85
250+ £42.35
500+ £41.85
1000+ £41.60
2500+ £41.10
In Stock Prices shown excludes VAT
Product Information
Part No 125CSE
Product Series 125SE Series
Audio Power (Watts)8
Max. D.C. Bias (ma)60
Weight (lbs)1.3
Dimension A94mm
Dimension B47mm
Dimension C59mm
Dimension D80mm
Mounting Hole5mm
RoHS Compliant Yes
REACH Compliant Yes
Share Me - 125CSE Share on Facebook Share on Twitter Share on LinkedIn

125CSE | 125SE Series | Hammond Manufacturing Transformers | KGA Enclosures Ltd

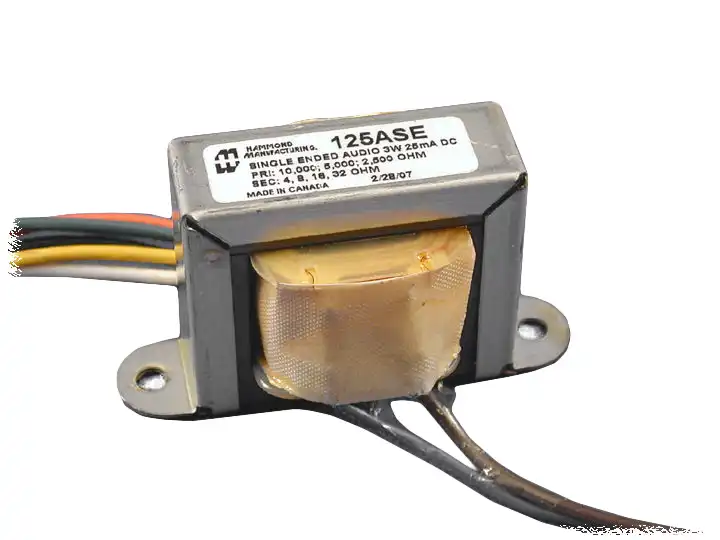

125SE Series - Universal Single Ended Tube Output
Audio

Product Features:
  • Designed for general purpose or replacement use (not Hi-Fi), in single ended tube output circuits.
  • Frequency response: 100 Hz. - 15 Khz. at full rated power (+/- 1 db max. - ref. 1 Khz.).
  • Open style with minimum 12" long primary and secondary leads.
  • All sizes use butt stacked cores (using 29M6 steel) with an air gap, to reduce D.C. core saturation.
  • Primary impedance range from 2,500 to 10,000 Ohms.
  • Secondary impedance range from 4 to 32 Ohms.
